Audio Control Module Connector - C240A

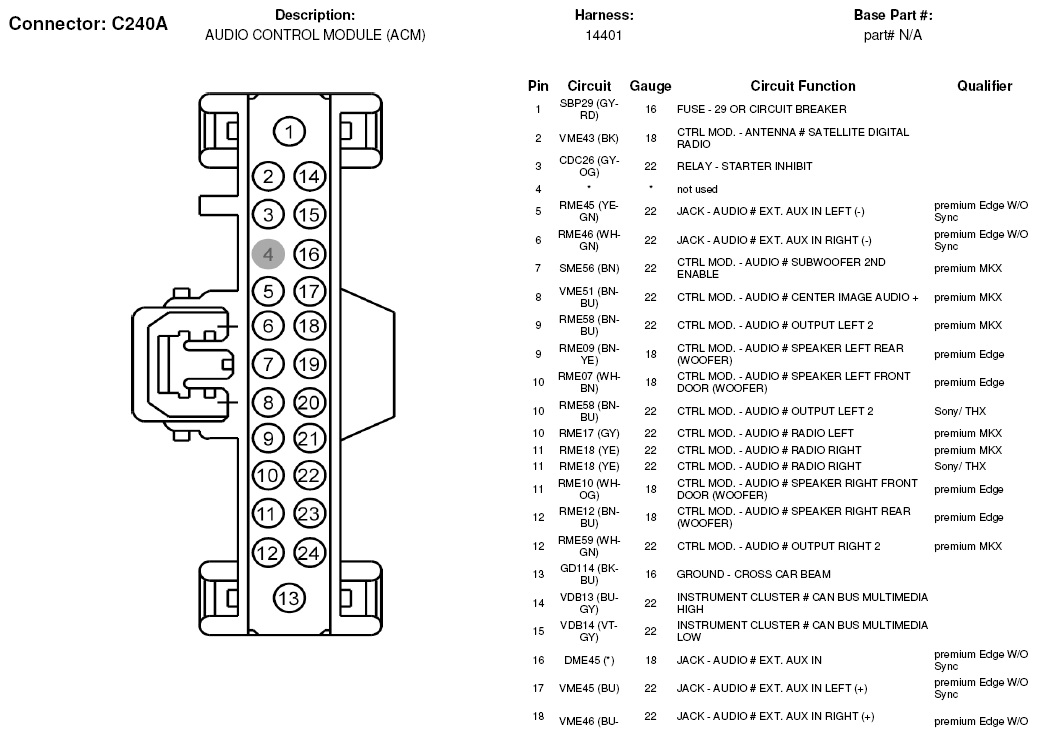

Fig 1: Audio Control Module Connector End View (C240A) (1 Of 2)
G07327013Courtesy of FORD MOTOR CO.
Fig 2: Audio Control Module Connector End View (C240A) (2 Of 2)
G07327014Courtesy of FORD MOTOR CO.
