Left Rear Lamp Assembly Connector - C414

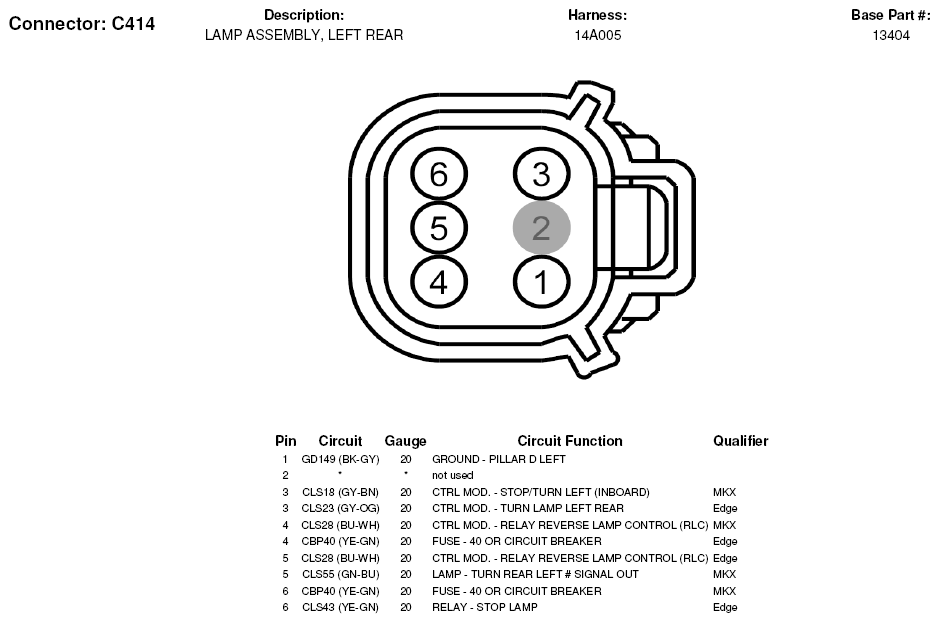

Fig 1: Left Rear Lamp Assembly Connector End View (C414)

G07327063

Courtesy of FORD MOTOR CO.
