Side Air Bag Module: Notes

NOTE: Passenger seat shown in illustration, driver seat similar.

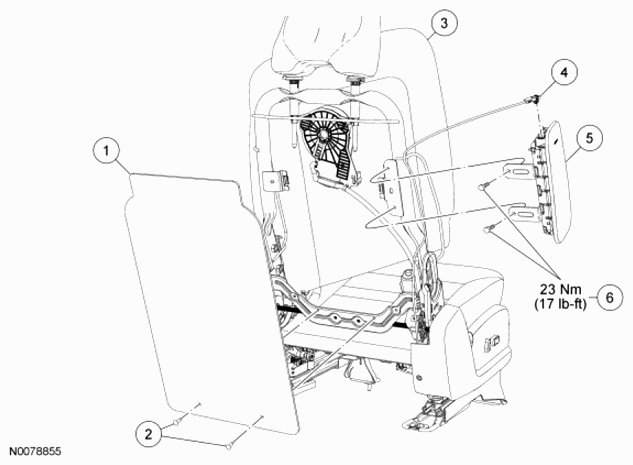

Fig 1: Side Air Bag Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	60508	Seat backrest cover rear panel reinforcement board
2	-	Seat backrest cover rear panel reinforcement board pin-type retainers
3	64416/64810	Seat backrest cover and foam pad
4	-	Side air bag module electrical connector (part of 14K155)
5	611D10 RH/611D11 LH	Side air bag module
6	W506021	Side air bag module bolts (2 required)
