Safety Canopy Module: Notes

NOTE: RH side shown in illustration, LH side similar.

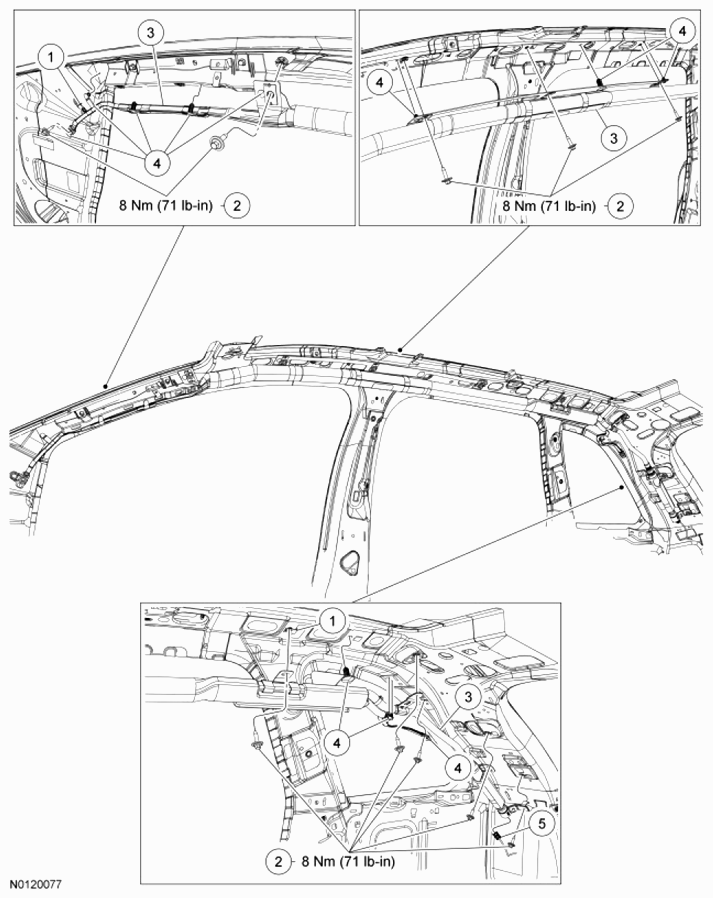

Fig 1: Safety Canopy Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W710739	J-nuts (2 required)
2	W713437	Safety Canopy® module bolts (10 required)
3	042D94 RH/042D95 LH	Safety Canopy® module
4	-	Safety Canopy® module pin-type retainer (11 required) (part of 042D94)
5	-	Safety Canopy® module electrical connector (part of 14A005)
