Special Tool(s)

SPECIAL TOOL CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

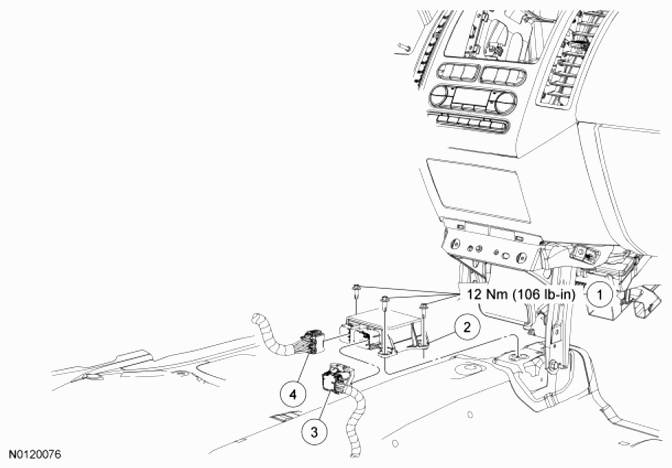

Fig 1: Restraints Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W707935	Restraints Control Module (RCM) bolts (3 required)
2	14B321	RCM
3	-	RCM large connector (part of 14A005)
4	-	RCM small connector (part of 14401)
