Restraints Control Module (RCM): Installation

All vehicles

1. Make sure the large RCM  Connector Position Assurance (CPA) lever is in the full release position before attempting to connect the connector.

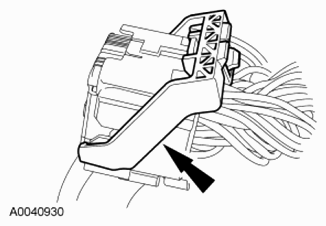

   Fig 1: Locating RCM Connector Position Assurance Lever

   Courtesy of FORD MOTOR CO.
NOTE: Placing the large Restraints Control Module (RCM) electrical connector into the RCM  on an angle may cause bad electrical connections and damaged components.
2. Position the large RCM  electrical connector into the RCM  .
   NOTE: Do not push the connector to the point where the lever pivots and seats itself. Apply light pressure to position the connector on the RCM  before using the lever to fully seat the connector. Failure to follow these instructions may cause component or connector damage.

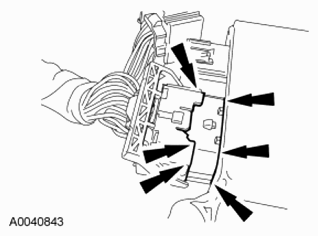

   Fig 2: Locating Large RCM Electrical ConnectorAnd RCM
   Courtesy of FORD MOTOR CO.
   • With the large RCM  electrical connector uniformly aligned to the RCM  , lightly push in until a subtle audible click is heard and slight resistance is felt.
3. Connect the large RCM  electrical connector.
   • Using the CPA  lever, pivot it toward the RCM  drawing the connector into the RCM  .
     • Make sure the thumb tab is engaged to the retainer on the RCM  and locked in place.

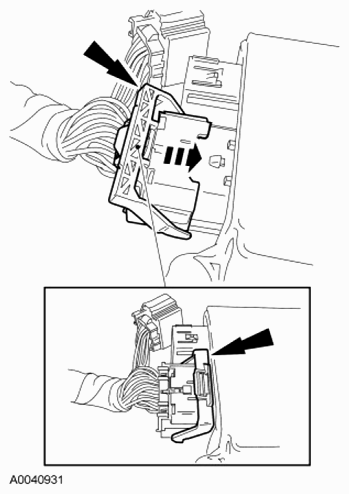

       Fig 3: Locating Large RCM Electrical Connector

       Courtesy of FORD MOTOR CO.
4. Connect the small RCM  electrical connector.
WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
5. Position the RCM  and install the 3 RCM  bolts.
   • Tighten to 12 Nm (106 lb-in).
NOTE: Damage to the floor console rear trim panel may occur if cardboard is not used to remove the lower floor console side trim panel.
6. Position the RH lower floor console side trim panel using a piece of cardboard between the panel and the floor console.
7. Remove the cardboard and install the RH lower floor console side trim panel.

   Edge vehicles

8. Install the RH console molding and close the console door.

   All vehicles

9. Repower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
10. If a new RCM  was installed, carry out the appropriate steps to complete the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
