Passenger Air Bag Module - MKX: Notes

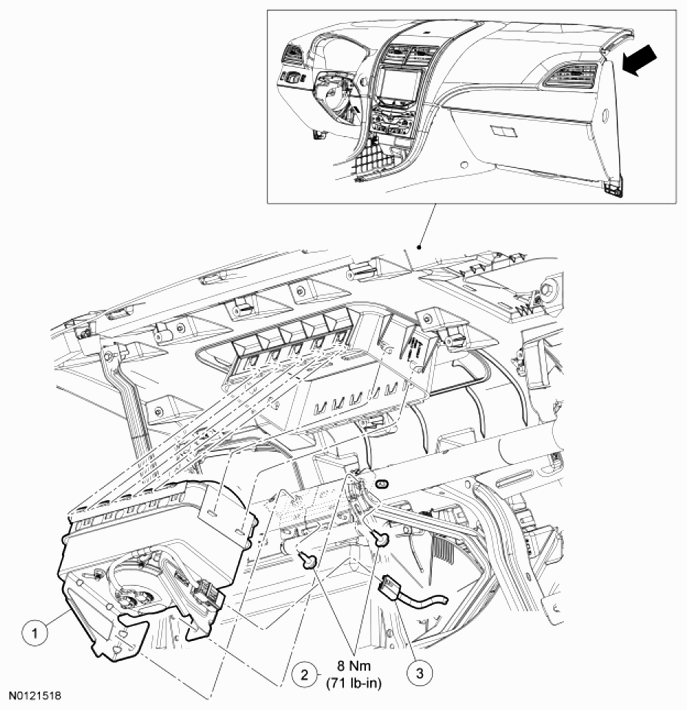

Fig 1: Passenger Air Bag Module With Torque Specifications
G07399654Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 044A74 Passenger air bag module
2 W505422 Passenger air bag module-to-cross-car beam bracket bolts
3 - Passenger air bag module electrical connector (part of 14401)
