Passenger Air Bag Module - Edge: Notes

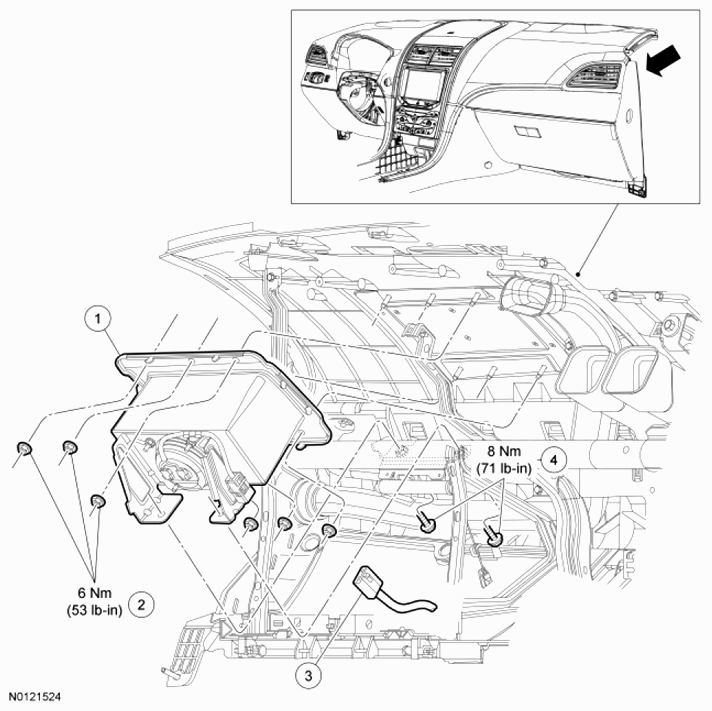

Fig 1: Passenger Air Bag Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	044A74	Passenger air bag module assembly
2	-	Passenger air bag module nuts (6 required) (part of 044A74)
3	-	Passenger air bag module electrical connectors (part of 14401)
4	W505422	Passenger air bag module-to-cross-car beam bracket bolts
