Occupant Classification Sensor - Power Seat Track: Notes

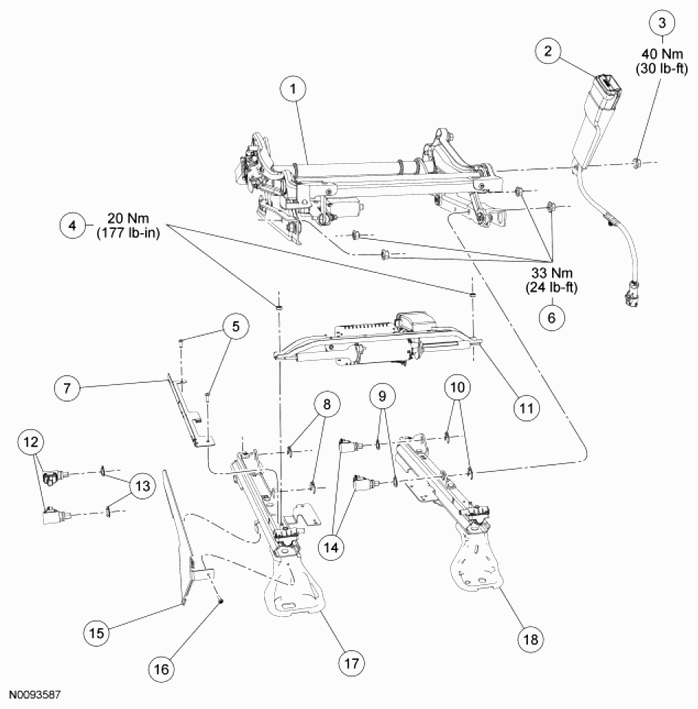

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 61710 | Power seat track assembly |
| 2 | 61202 | Safety belt buckle |
| 3 | - | Safety belt buckle nut (part of 61202) |
| 4 | - | Seat track front cross brace nuts (part of 61710) (2 required) |
| 5 | - | Occupant Classification System (OCS) weight sensor bolt protection bracket screws (part of 61710) (2 required) |
| 6 | - | OCS weight sensor bolt nuts (part of 61710) (4 required) |
| 7 | - | OCS weight sensor bolt protection bracket (part of 61710) |
| 8 | - | Outboard seat track rail OCS weight sensor bolt retaining clips (part of 61710) (2 required) |
| 9 | - | Inboard seat track rail OCS weight sensor bolt spring washers (part of 61710) (2 required) |
| 10 | - | Inboard seat track rail OCS weight sensor bolt retaining clips (part of 61710) (2 required) |
| 11 | - | Seat track front cross brace (part of 61710) |
| 12 | - | Outboard seat track rail OCS weight sensor bolts (part of 61710) (2 required) |
| 13 | - | Outboard seat track rail OCS weight sensor bolt spring washers (part of 61710) (2 required) |
| 14 | - | Inboard seat track rail OCS weight sensor bolts) (part of 61710) (2 required) |
| 15 | - | Outboard seat track riser cover shield (part of 61710) |
| 16 | - | Outboard seat track riser cover shield retainer (part of 61710) |
| 17 | - | Outboard seat track rail (part of 61710) |
| 18 | - | Inboard seat track rail (part of 61710) |
