Front Impact Severity Sensor

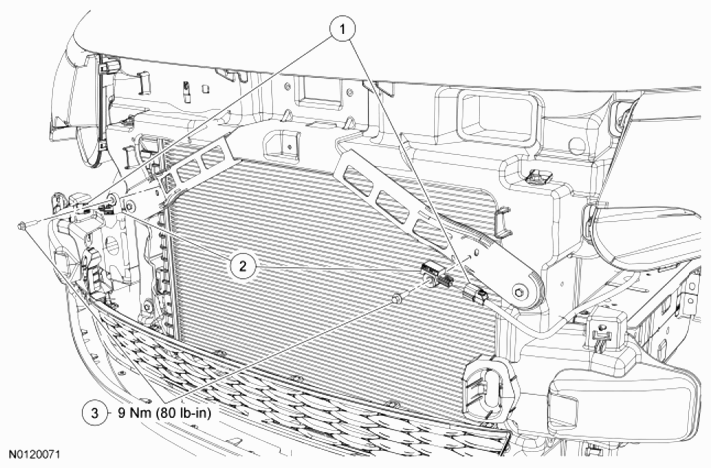

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH and RH front impact severity sensor electrical connectors (part of 14290) |
| 2 | 14B345 | LH and RH front impact severity sensors |
| 3 | W505256 | LH and RH front impact severity sensor bolts |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM
and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of this service information.
- Remove the front bumper cover. For additional information, refer to BUMPERS .
- Disconnect the effected front impact severity sensor electrical connector.
- Remove the effected bolt and front impact severity sensor.
- To install, tighten to 9 Nm (80 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of this service information.
NOTE:
Make sure the hood latch bracket and front impact severity sensor mating surfaces are clean and free of foreign material.
NOTE:
Note the position of the locator tab on the front impact severity sensor for correct installation.
