Driver Air Bag Module: Notes

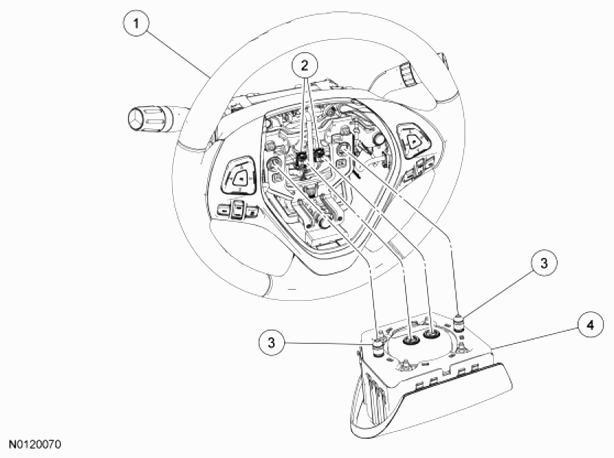

Fig 1: Identifying Driver Air Bag Module Components Location
G07399620Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 3600 Steering wheel
2 - Driver air bag module electrical connectors (part of 14A664)
3 - Driver air bag module locking pins (part of 043B13)
4 043B13 Driver air bag module
