Removal And Installation: Clockspring: Notes

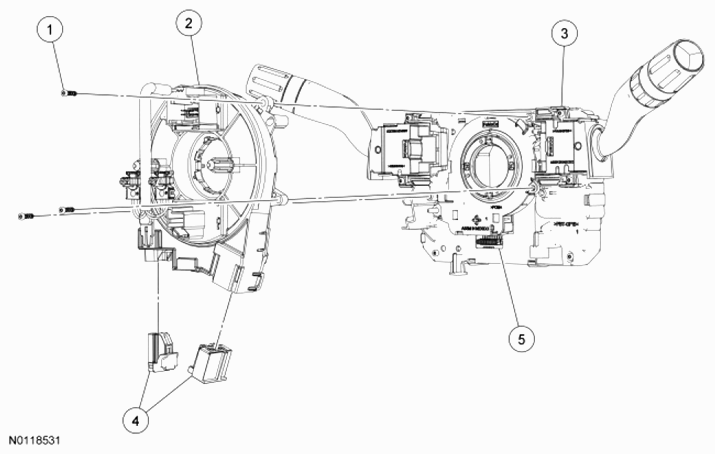

Fig 1: Identifying Clockspring Components Location

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W506943	Clockspring screws (3 required)
2	14A664	Clockspring
3	3F791	Steering Column Control Module (SCCM)
4	-	Clockspring electrical connector(s) (part of 14401)
5	-	SCCM  electrical connector (part of 3F791)
