Roof Opening Panel Motor Assembly Connector - C920

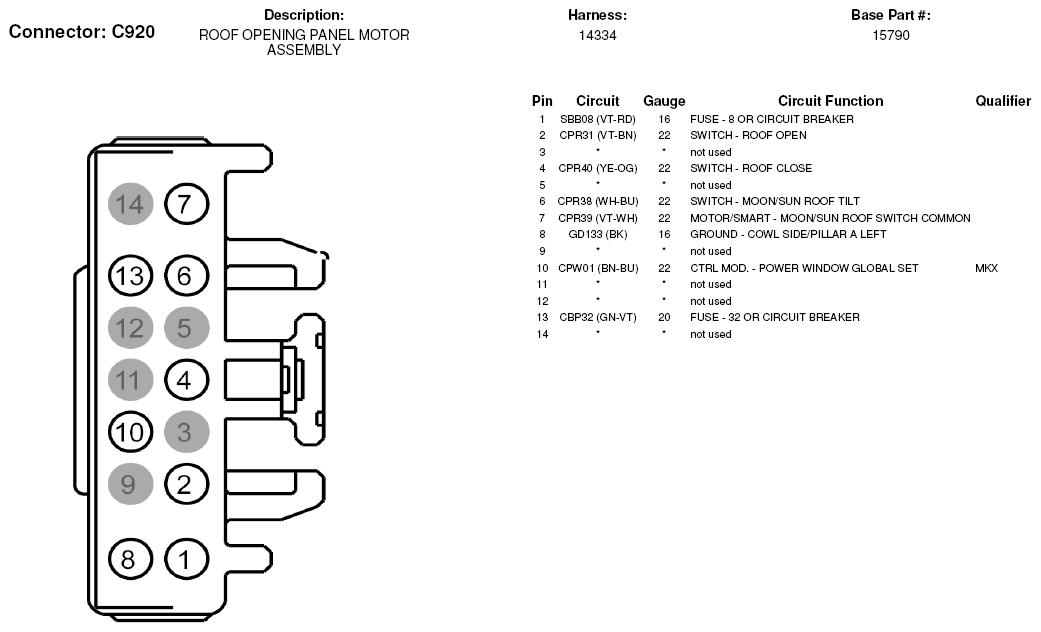

Fig 1: Roof Opening Panel Motor Assembly Connector End View (C920)

G07327138

Courtesy of FORD MOTOR CO.
