Right Front Impact Severity Sensor Connector - C1466

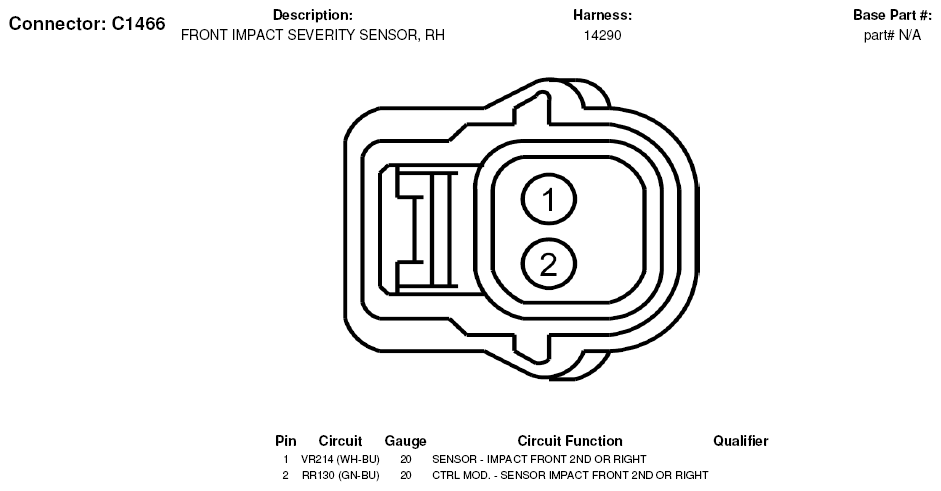

Fig 1: Right Front Impact Severity Sensor Connector End View (C1466)

G07327165

Courtesy of FORD MOTOR CO.
