OCS Weight Sensor Bolt Connector - C3330

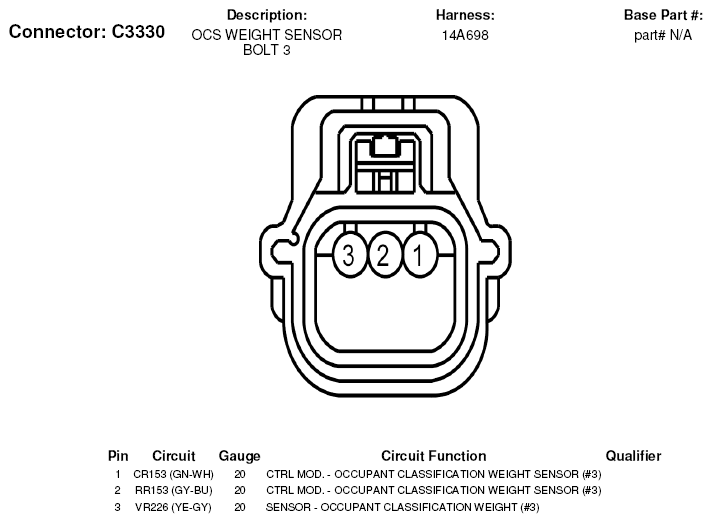

Fig 1: OCS Weight Sensor Bolt Connector End View (C3330)

G07327270

Courtesy of FORD MOTOR CO.
