OEM Connector End Views
>>
Connector Views
>>
Left Rear Wheel Speed Sensor Connector - C440
Left Rear Wheel Speed Sensor Connector - C440

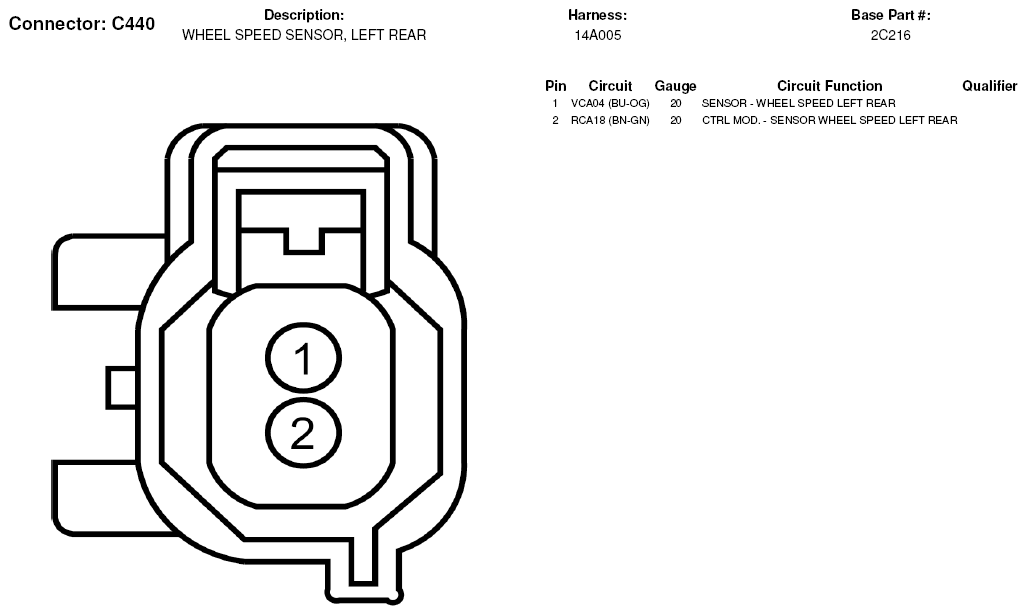

Fig 1: Left Rear Wheel Speed Sensor Connector End View (C440)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
