Driver Side Door Lock Switch Connector - C505
Driver Side Door Lock Switch Connector - C505

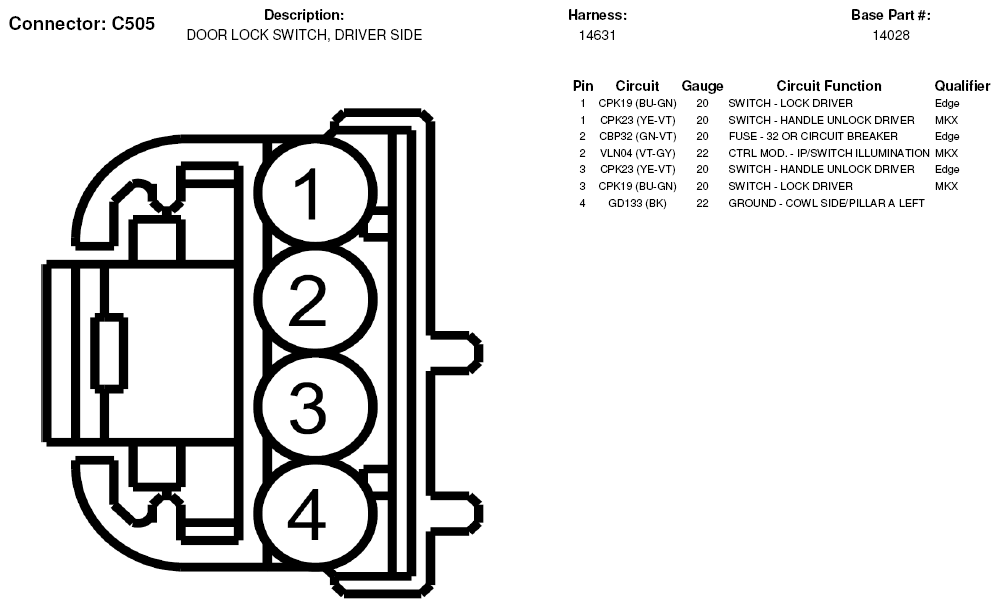

Fig 1: Driver Side Door Lock Switch Connector End View (C505)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
