Crankshaft Position Sensor Connector - C101

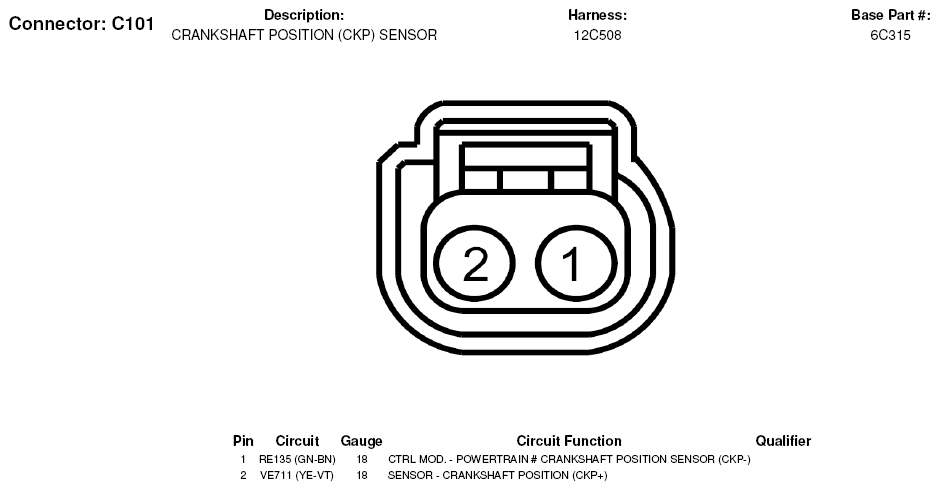

Fig 1: Crankshaft Position Sensor Connector End View (C101)

G07326938

Courtesy of FORD MOTOR CO.
