Cargo Area Power Point Connector - C474

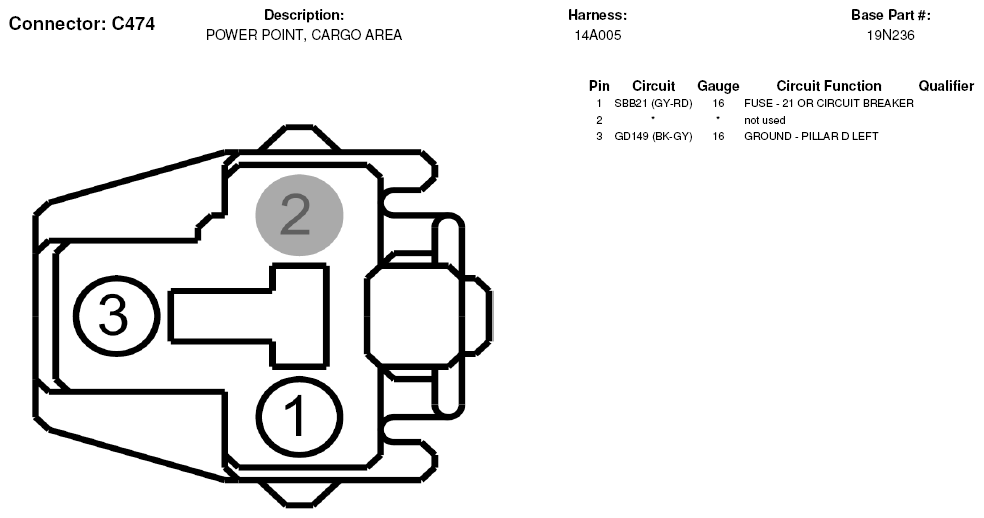

Fig 1: Cargo Area Power Point Connector End View (C474)

G07327074

Courtesy of FORD MOTOR CO.
