Special Tool(s)

SPECIAL TOOL REFERENCE CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

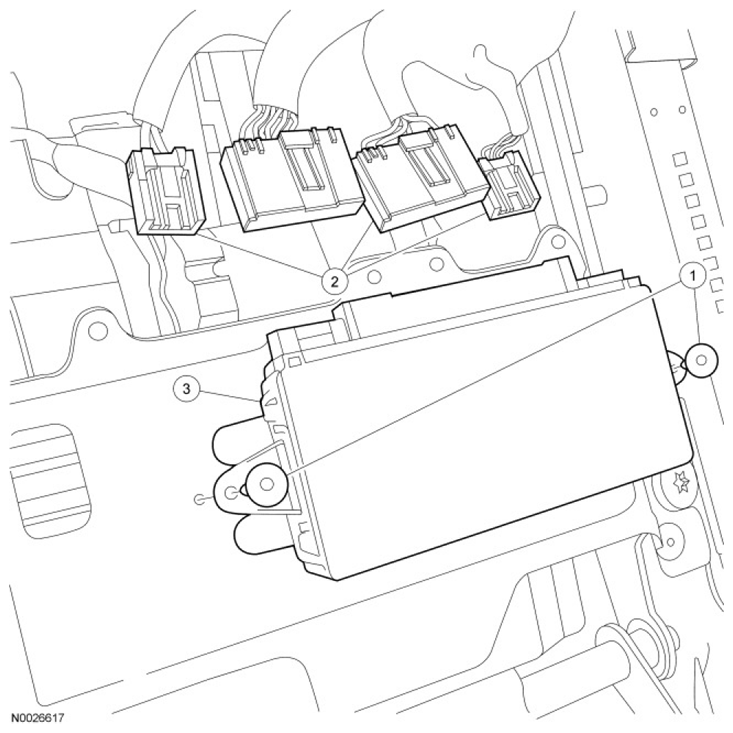

Fig 1: Identifying Driver Seat Module Components Location

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Driver Seat Module (DSM) screws (2 required)
2	-	DSM electrical connectors (part of 14A699)
3	13C789	DSM
