Dual Exhaust

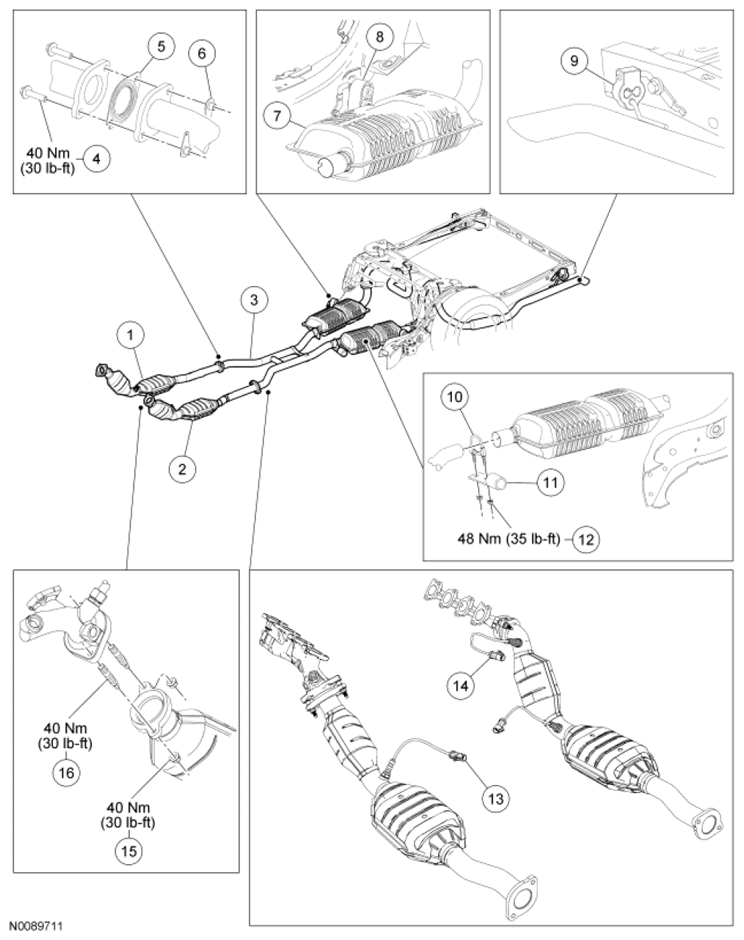

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E212 | Catalytic converter, RH |
| 2 | 5E212 | Catalytic converter, LH |
| 3 | 5246 | Exhaust inlet pipe |
| 4 | 56143 | Catalytic converter-to-exhaust inlet pipe bolt (4 required) |
| 5 | 5F263 | Gasket |
| 6 | 391188 | Flagnut (4 required) |
| 7 | 5C258 | Muffler (2 required) |
| 8 | 5A262 | Muffler isolator and bracket (2 required) |
| 9 | 5256 | Tailpipe isolator and bracket (2 required) |
| 10 | N802771 | Clamp (2 required) |
| 11 | 5F240 | Damper - RH/LH |
| 12 | N802771 | Clamp nut (4 required) |
| 13 | 14A464 | Catalyst Monitor Sensor (CMS) electrical connector (2 required) |
| 14 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector |
| 15 | W520414 | Catalytic converter-to-exhaust manifold nut (4 required) |
| 16 | W701732 | Catalytic converter-to-exhaust manifold stud (4 required) |
- For additional information, refer to the appropriate procedure(s).
