Fuel Pump Driver Module Connector - C4033
Fuel Pump Driver Module Connector - C4033

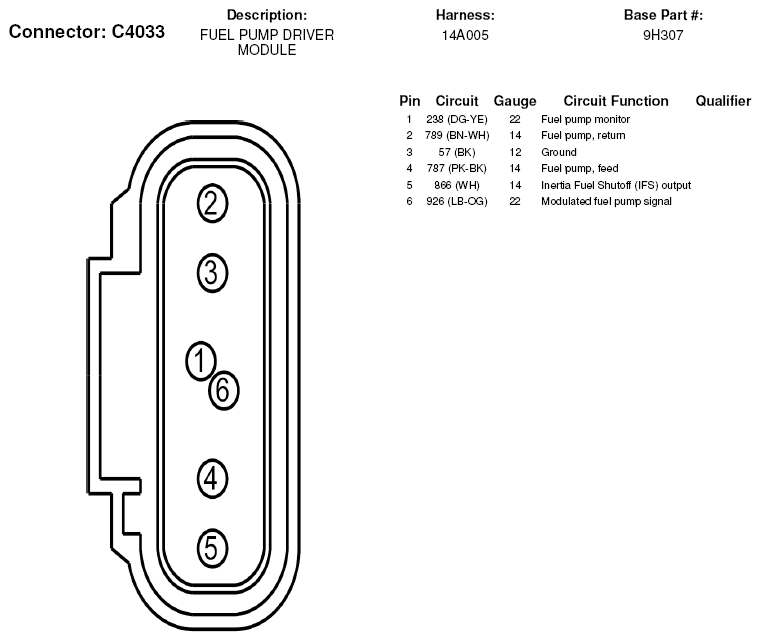

Fig 1: Fuel Pump Driver Module Connector End View (C4033)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
