Engine Cooling Fan Module Connector - C1048

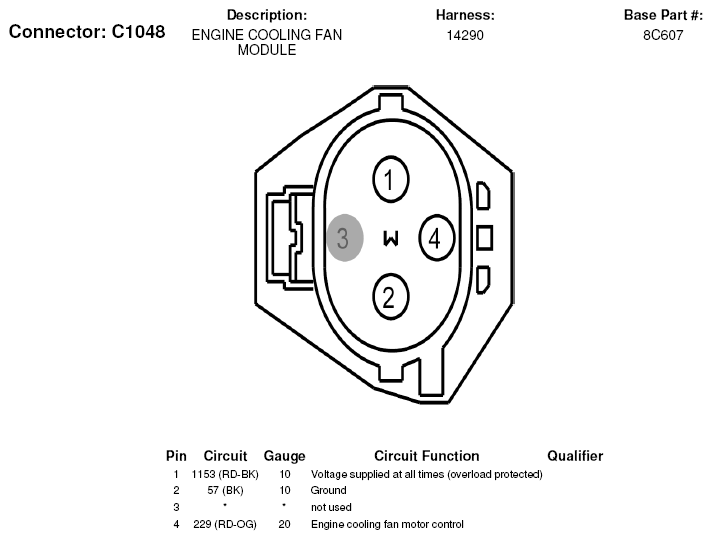

Fig 1: Engine Cooling Fan Module Connector End View (C1048)

G07326469

Courtesy of FORD MOTOR CO.
