Seat Backrest - Front: Notes
NOTE:

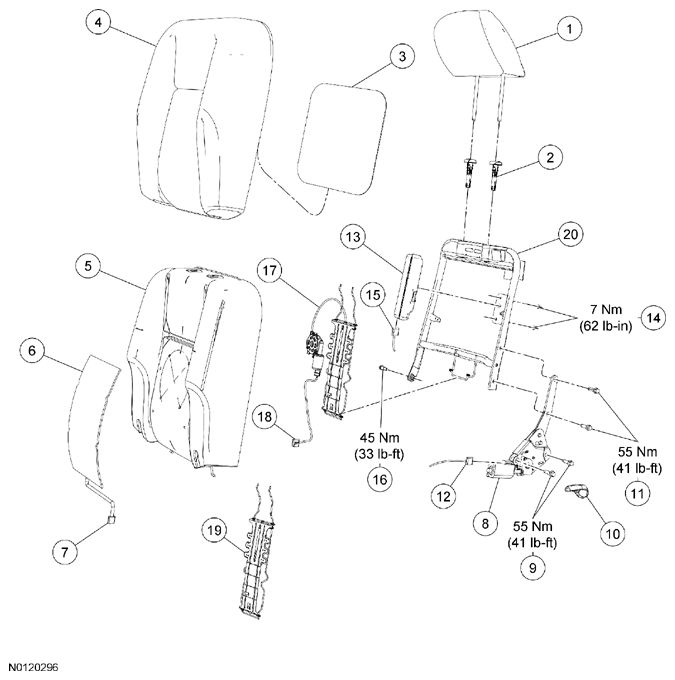

Driver seat shown in illustration, passenger similar.
NOTE:
Front 50 percent seat shown in illustration, 40 percent similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | 610A18 | Head restraint guide (2 required) |
| 3 | 60770 | Backrest stab plate (police only) |
| 4 | 64416 | Backrest trim cover |
| 5 | 64810 | Backrest foam pad (police foam pad shown in illustration, base foam pad is similar) |
| 6 | 14D696 | Backrest heater mat (if equipped) |
| 7 | - | Electrical connector (if equipped, part of 14D696) |
| 8 | 62648 RH/ 62649 LH | Recliner assembly (power shown, if equipped) |
| 9 | N803463 | Recliner-to-seat track bolt (2 required) |
| 10 | 61198 | Recliner handle |
| 11 | N803463 | Recliner-to-backrest frame bolt (2 required) |
| 12 | - | Electrical connector (if equipped) |
| 13 | 611D10 | Side air bag module (if equipped) |
| 14 | N620480 | Side air bag module nuts (2 required, if equipped) |
| 15 | 14716 | Side air bag module wiring harness (if equipped) |
| 16 | N808123 | Pivot bolt |
| 17 | 65500 | Power lumbar assembly (if equipped) |
| 18 | - | Electrical connector (if equipped) |
| 19 | - | Static lumbar support |
| 20 | 61018 | Backrest frame |
