Component Location Views

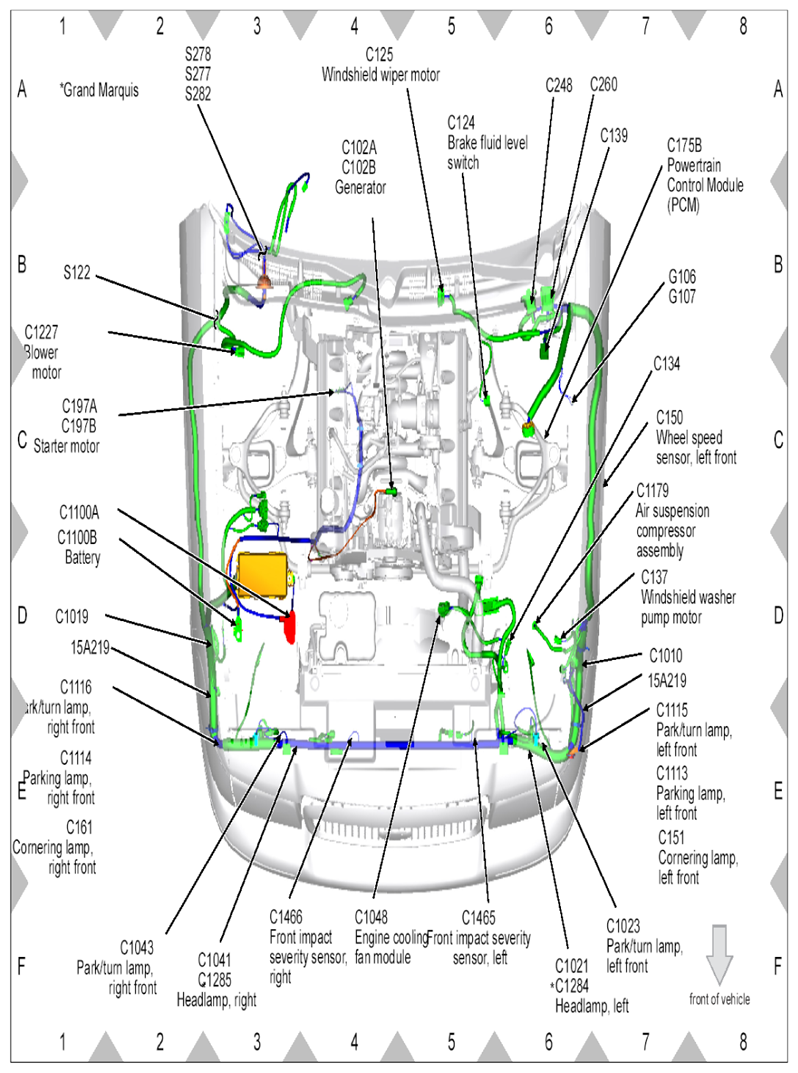

Fig 1: Identifying Engine Compartment Wiring Harness Connectors Location (1 Of 3)
G07853575Courtesy of FORD MOTOR CO.

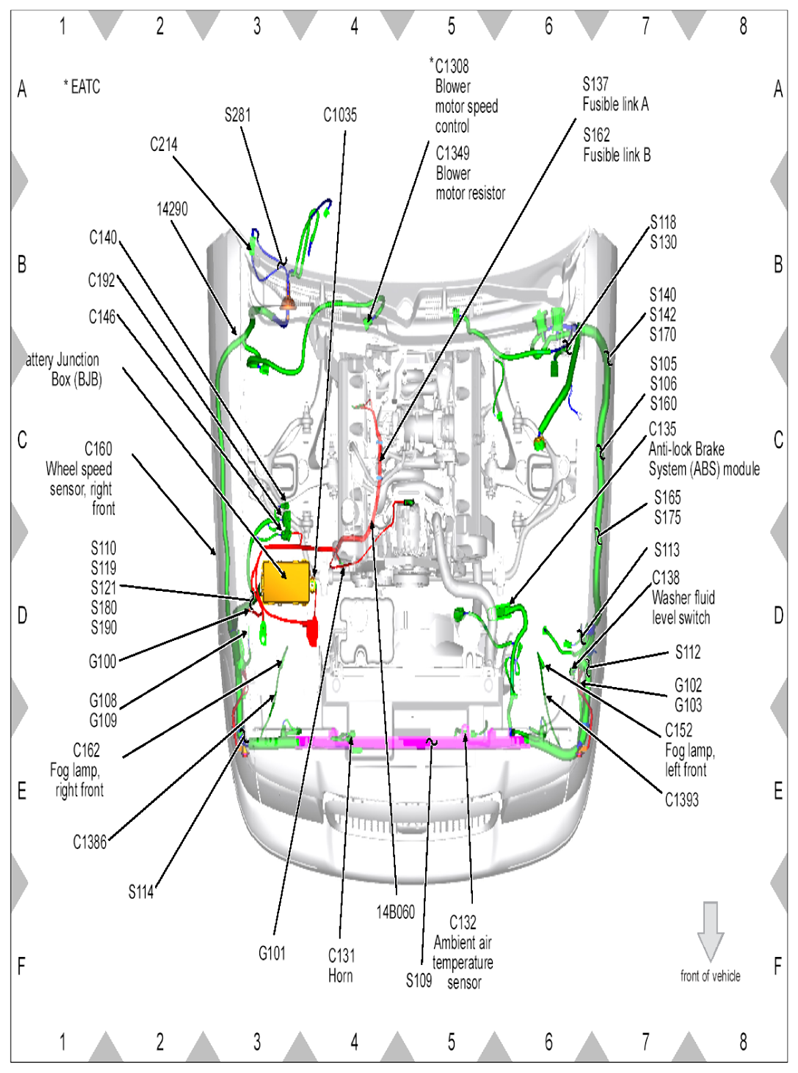

Fig 2: Identifying Engine Compartment Wiring Harness Connectors Location (2 Of 3)
G07853576Courtesy of FORD MOTOR CO.

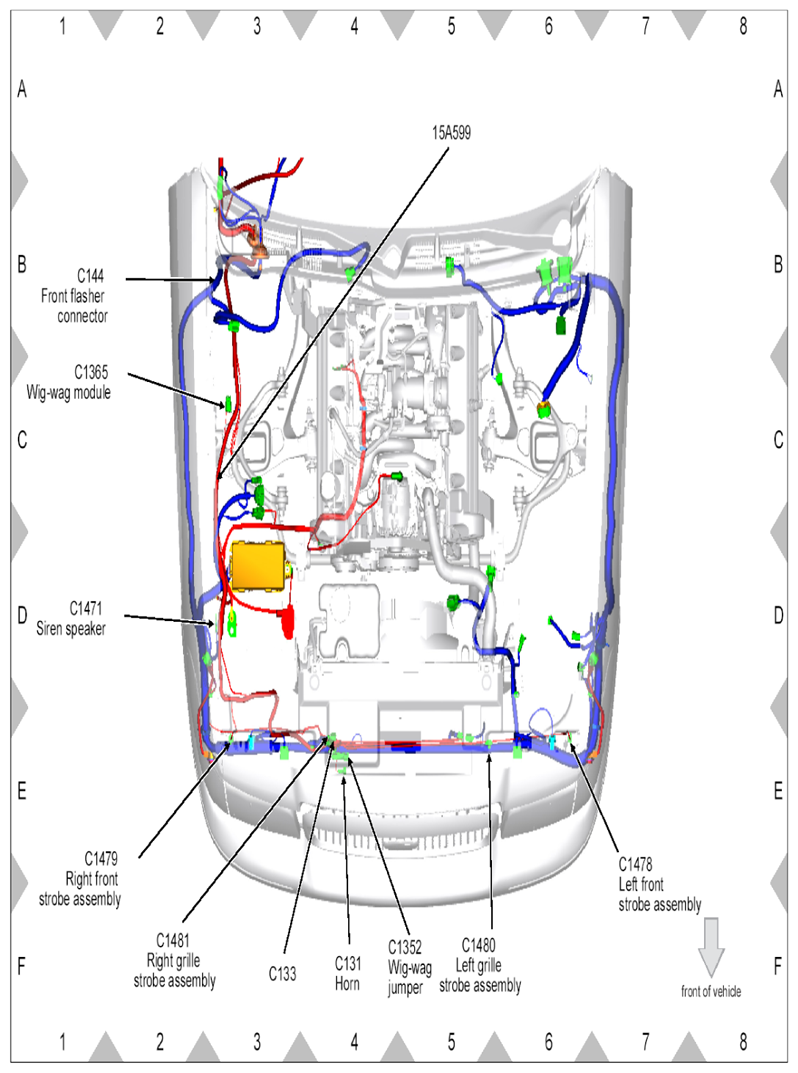

Fig 3: Identifying Engine Compartment Wiring Harness Connectors Location (3 Of 3)
G07853577Courtesy of FORD MOTOR CO.

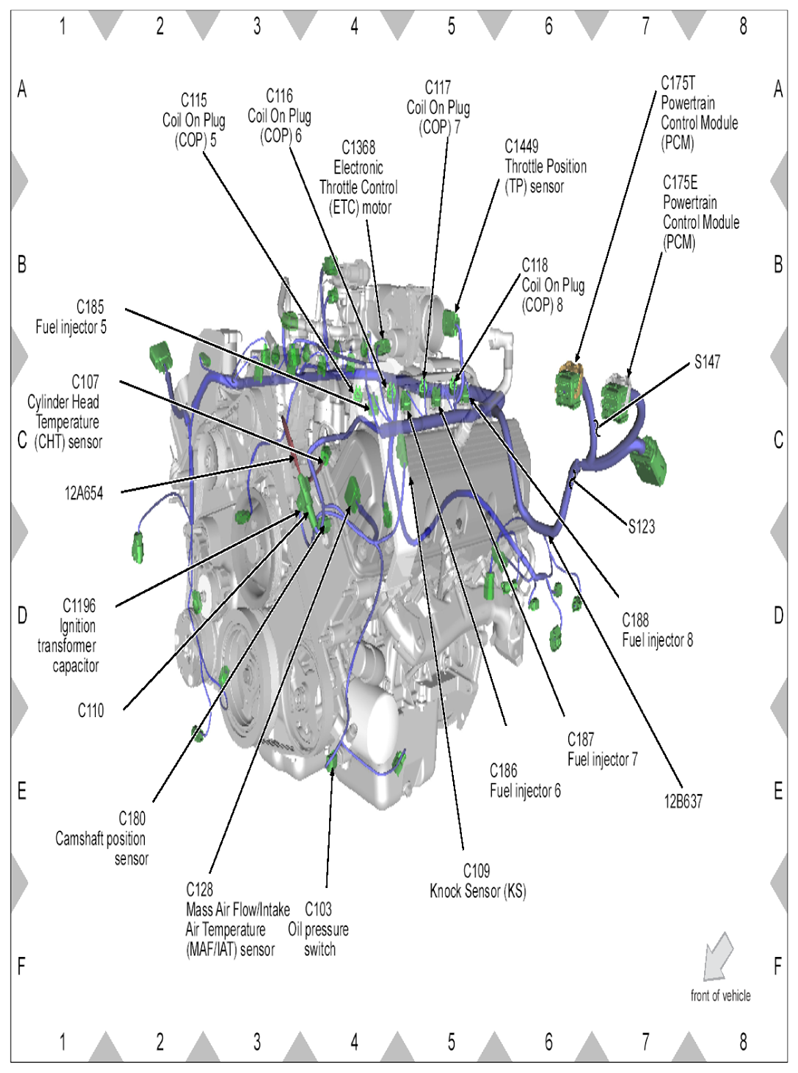

Fig 4: Identifying Engine Wiring Harness Connectors Location (1 Of 2)
G07853578Courtesy of FORD MOTOR CO.

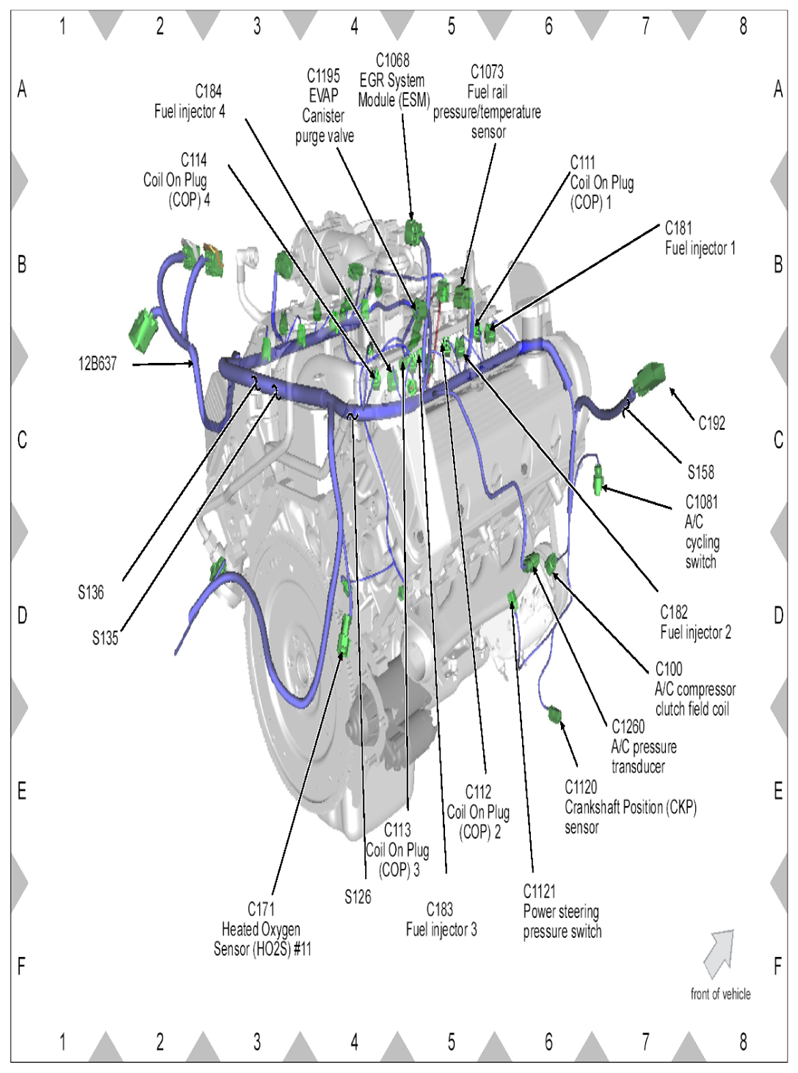

Fig 5: Identifying Engine Wiring Harness Connectors Location (2 Of 2)
G07853579Courtesy of FORD MOTOR CO.

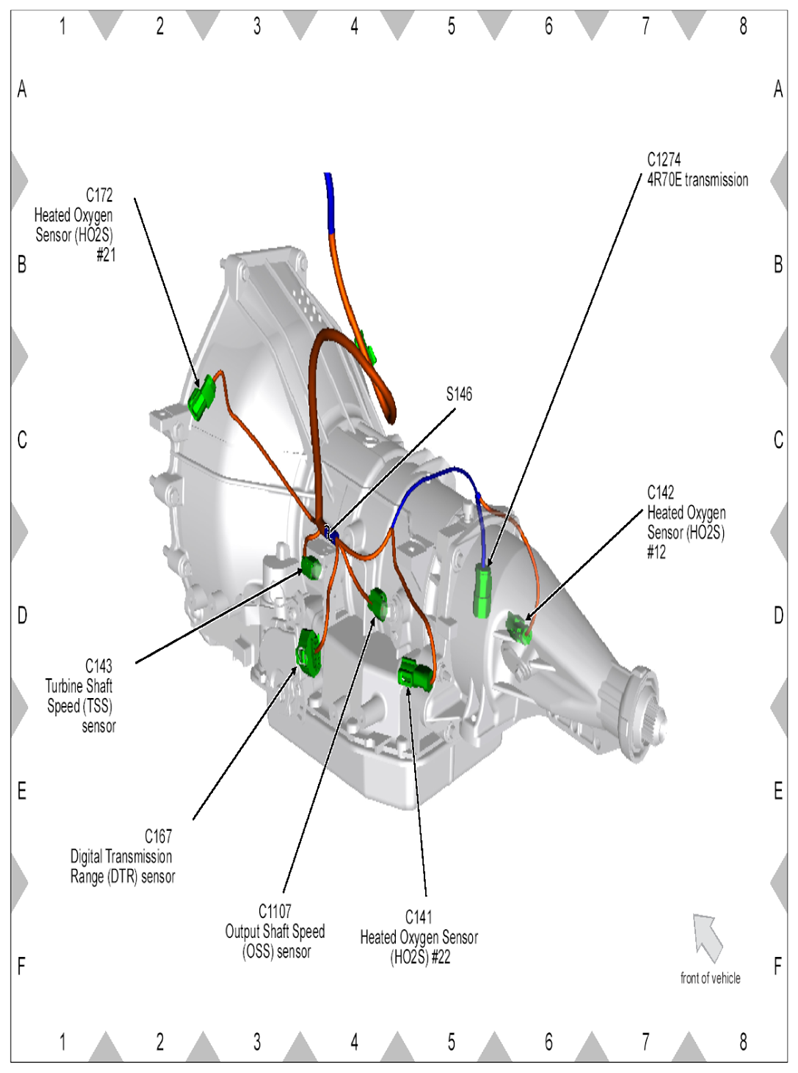

Fig 6: Identifying Transmission Wiring Harness Connectors Location
G07853580Courtesy of FORD MOTOR CO.

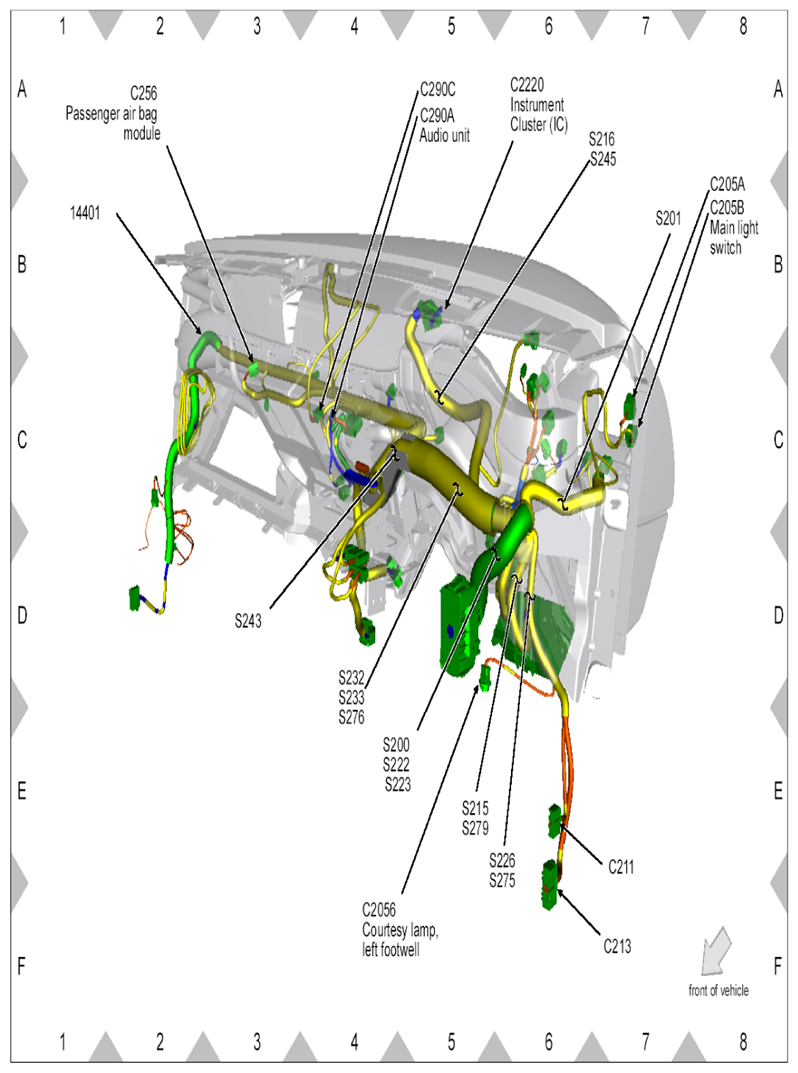

Fig 7: Identifying Rear Compartment Wiring Harness Connectors Location
G07853581Courtesy of FORD MOTOR CO.

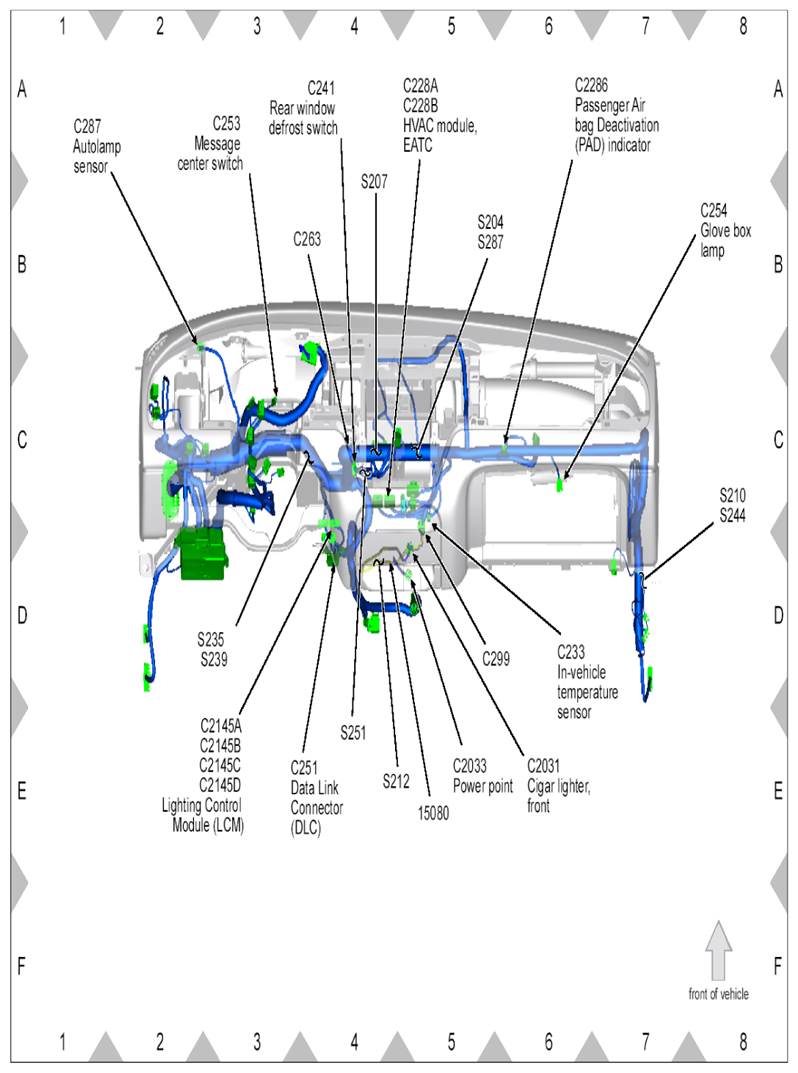

Fig 8: Identifying Center Console Wiring Harness Connectors Location (1 Of 2)
G07853582Courtesy of FORD MOTOR CO.

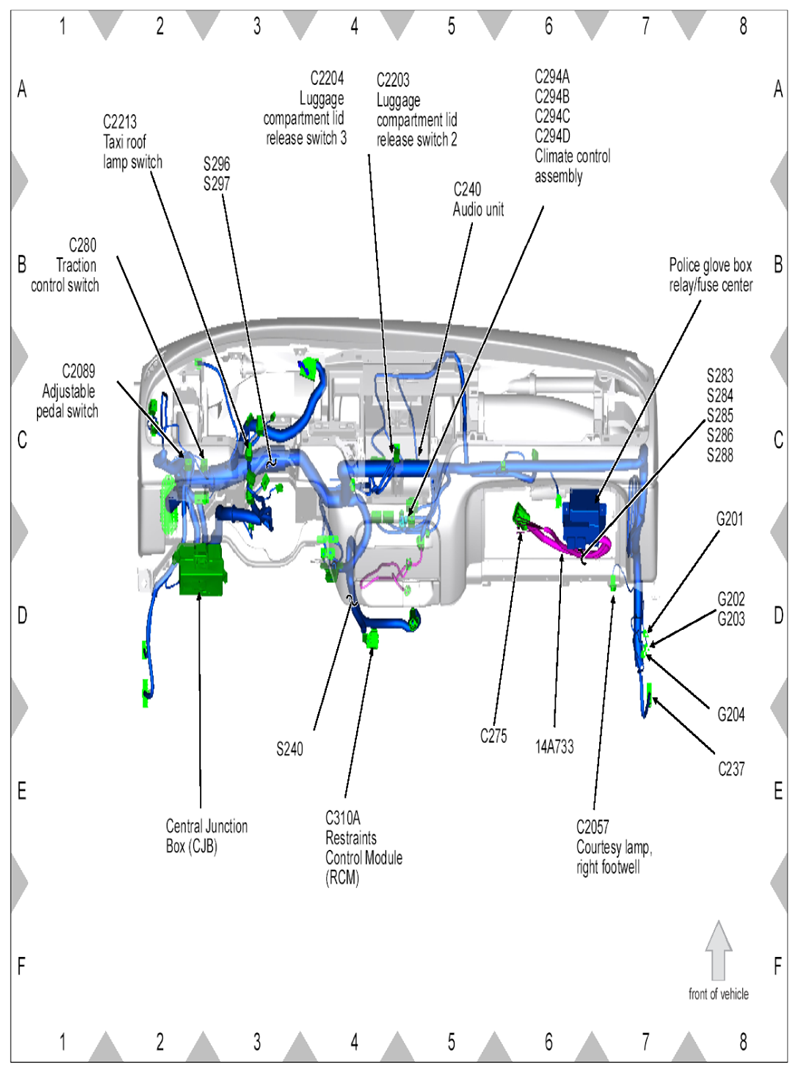

Fig 9: Identifying Center Console Wiring Harness Connectors Location (2 Of 2)
G07853583Courtesy of FORD MOTOR CO.

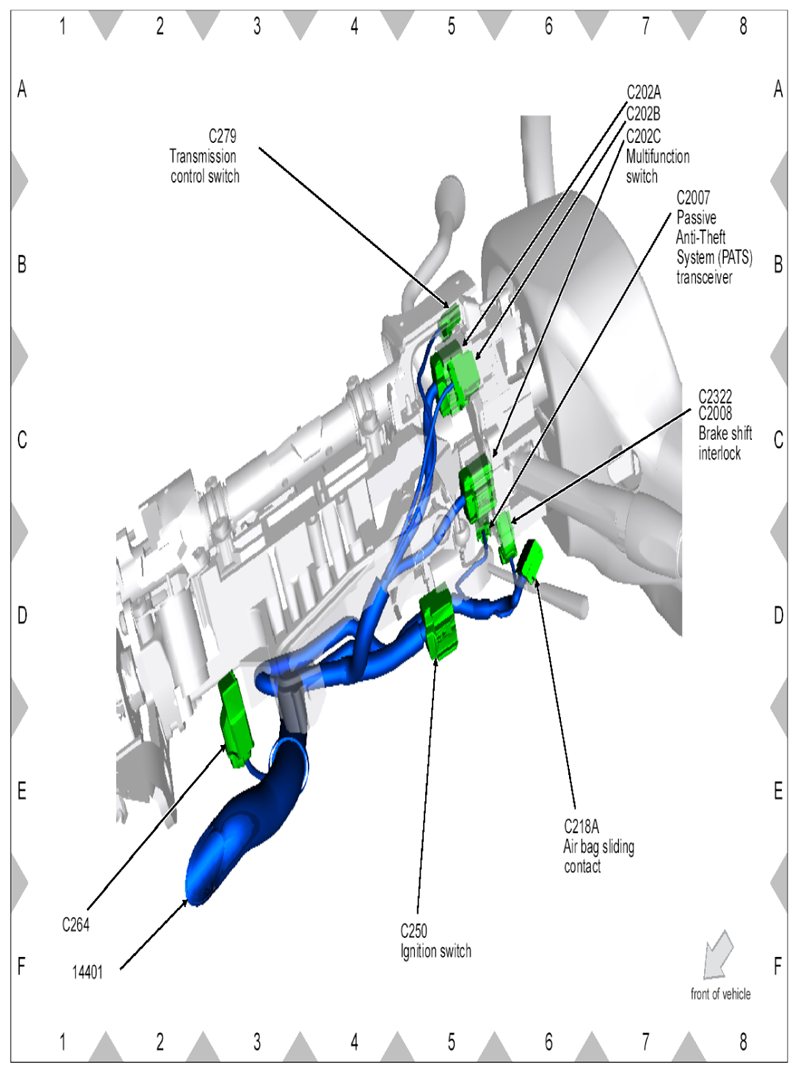

Fig 10: Identifying Steering Column Wiring Harness Connectors Location
G07853584Courtesy of FORD MOTOR CO.

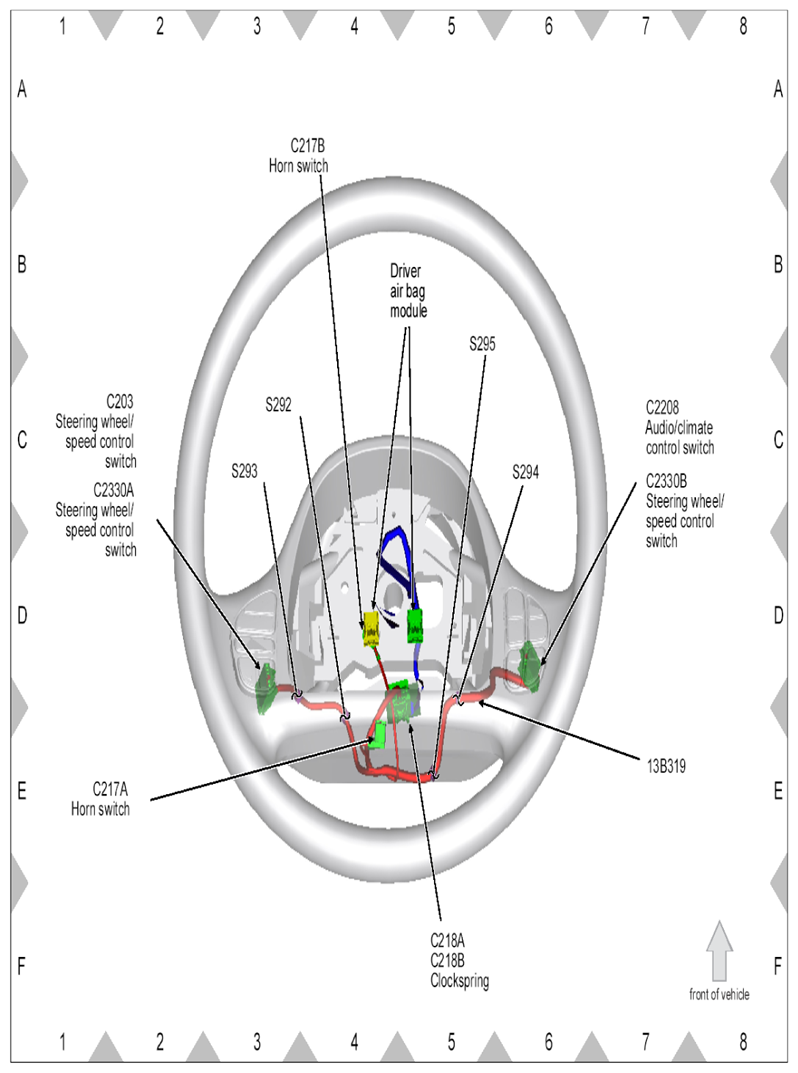

Fig 11: Identifying Steering Wheel Wiring Harness Connectors Location
G07853585Courtesy of FORD MOTOR CO.

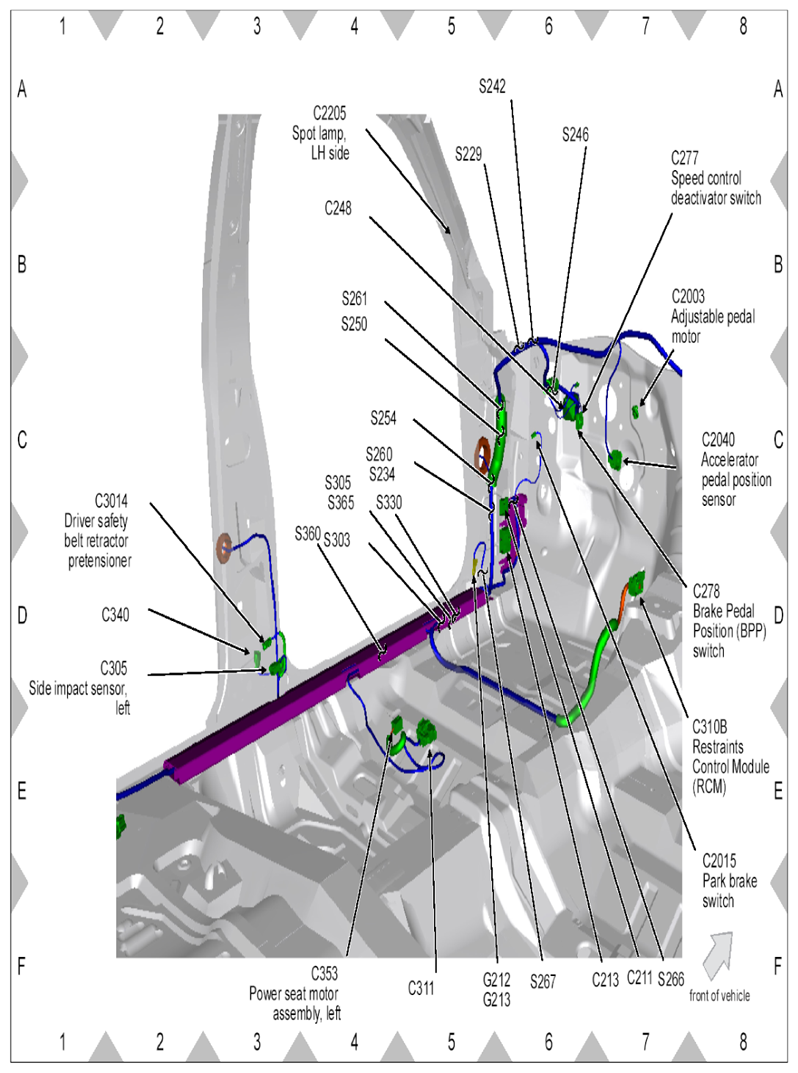

Fig 12: Identifying LH Driver Side Wiring Harness Connectors Location
G07853586Courtesy of FORD MOTOR CO.
Fig 13: Identifying RH Driver Side Wiring Harness Connectors Location (1 Of 2)
G07853587Courtesy of FORD MOTOR CO.

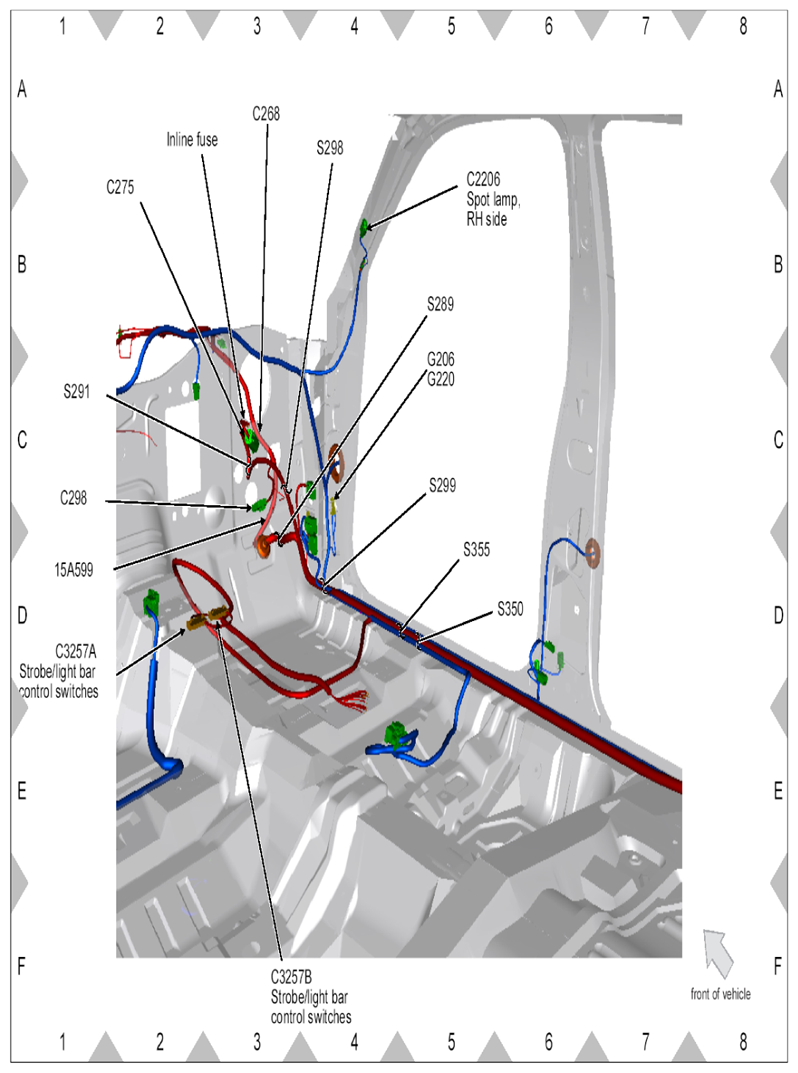

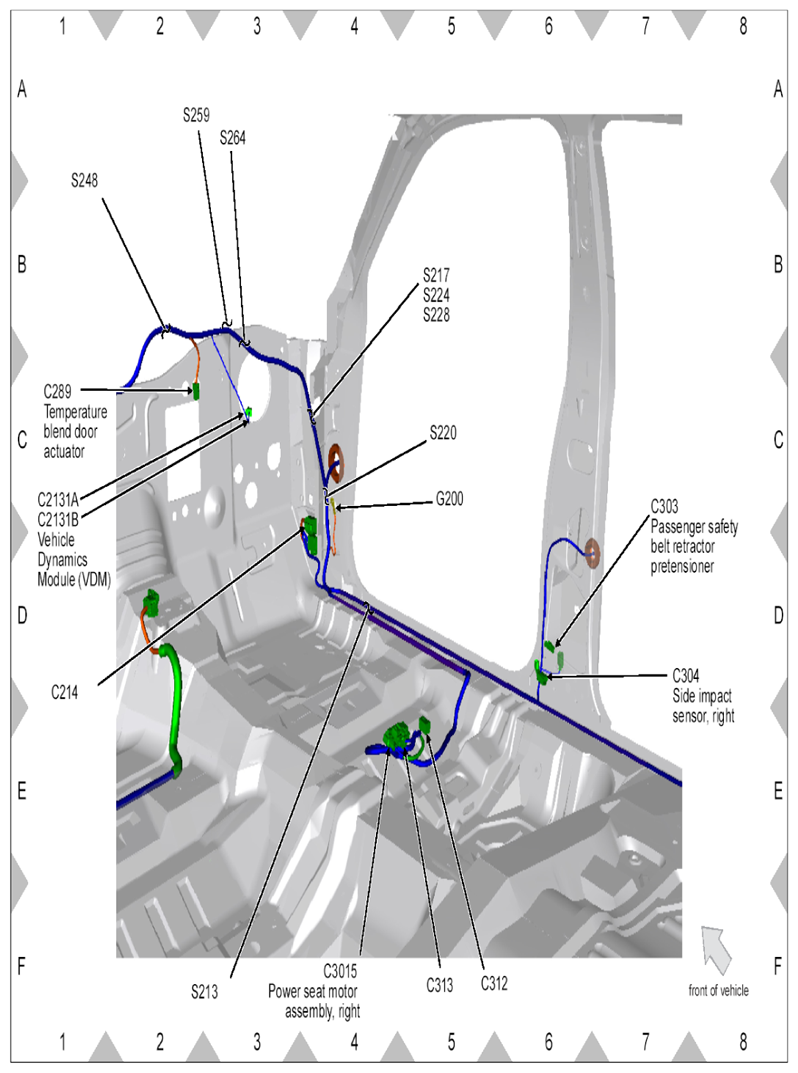

Fig 14: Identifying RH Driver Side Wiring Harness Connectors Location (2 Of 2)
G07853588Courtesy of FORD MOTOR CO.

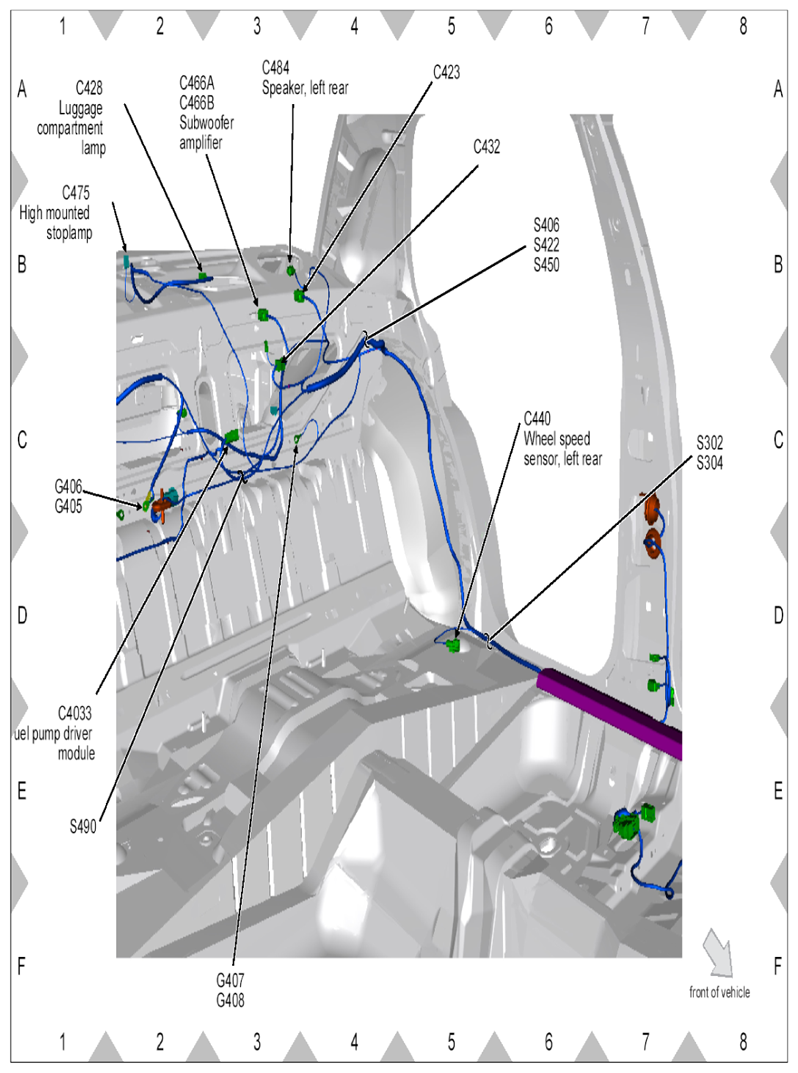

Fig 15: Identifying RH Passenger Side Wiring Harness Connectors Location (1 Of 2)
G07853589Courtesy of FORD MOTOR CO.

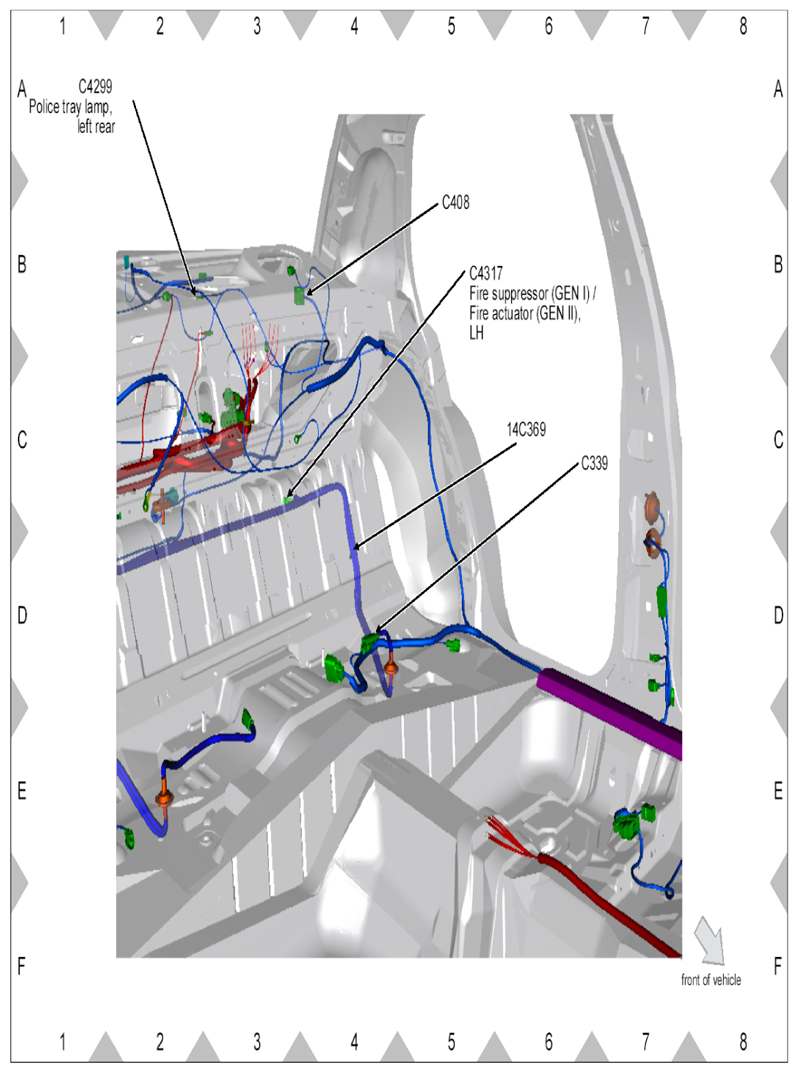

Fig 16: Identifying RH Passenger Side Wiring Harness Connectors Location (2 Of 2)
G07853590Courtesy of FORD MOTOR CO.

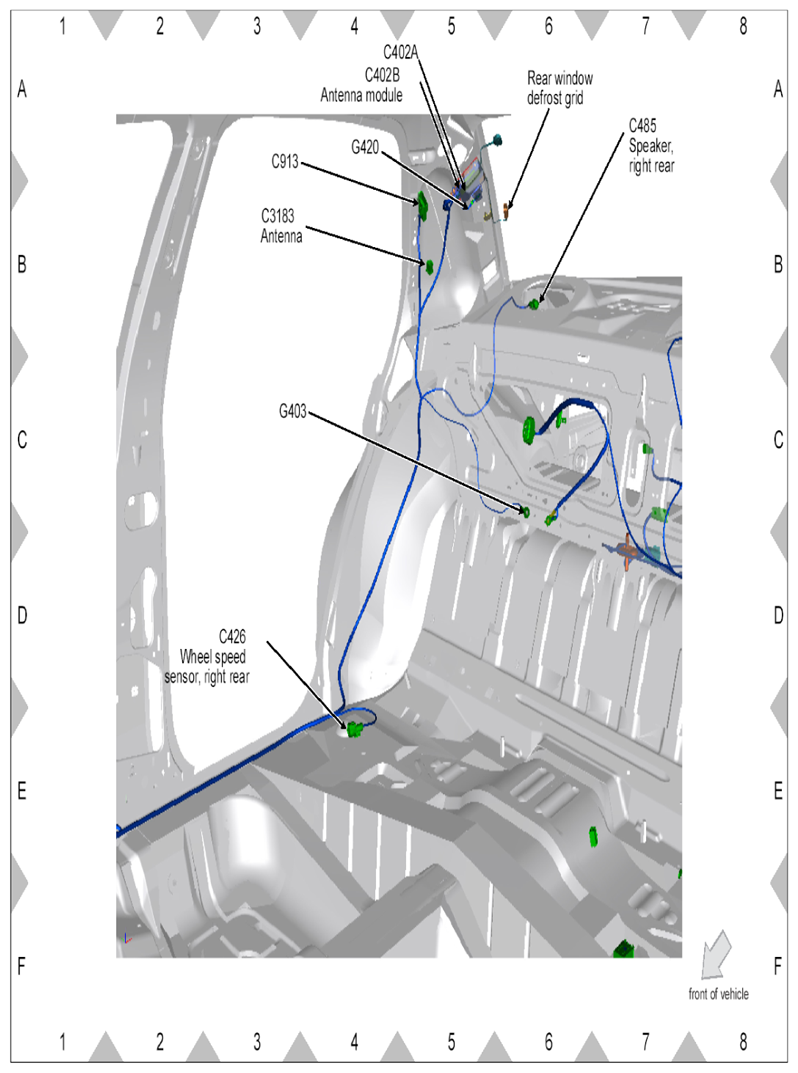

Fig 17: Identifying Passenger Side Wiring Harness Connectors Location (1 Of 2)
G07853591Courtesy of FORD MOTOR CO.

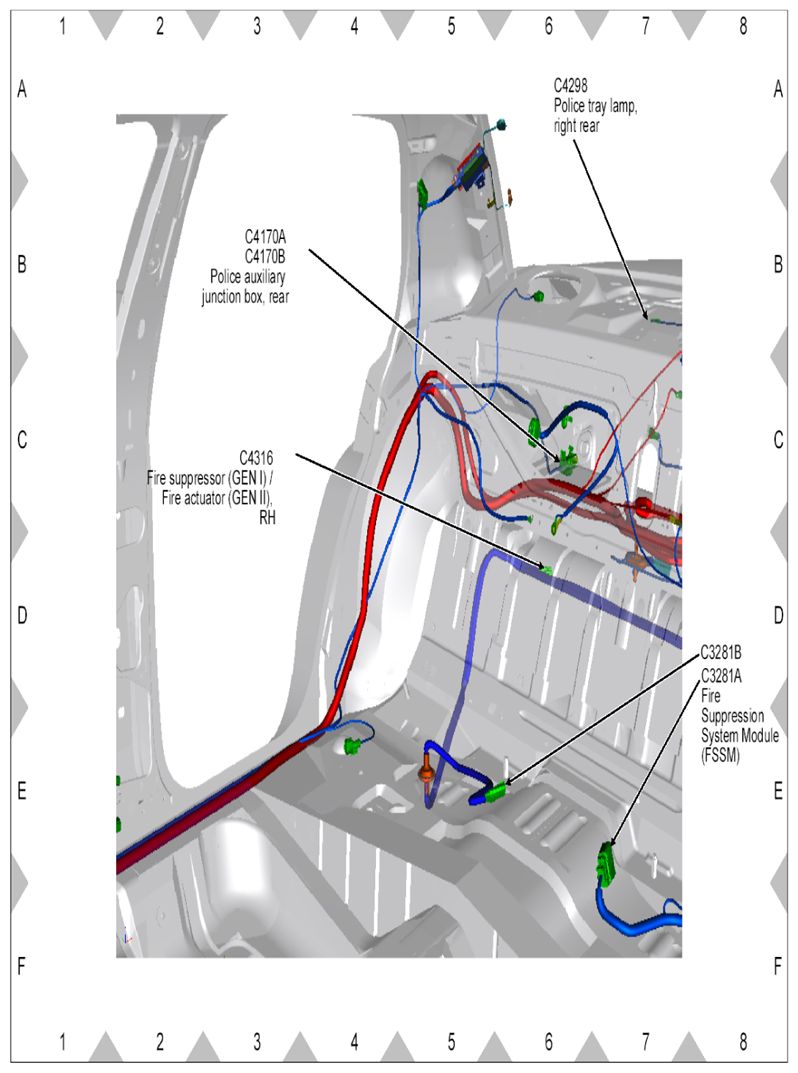

Fig 18: Identifying Passenger Side Wiring Harness Connectors Location (2 Of 2)
G07853592Courtesy of FORD MOTOR CO.

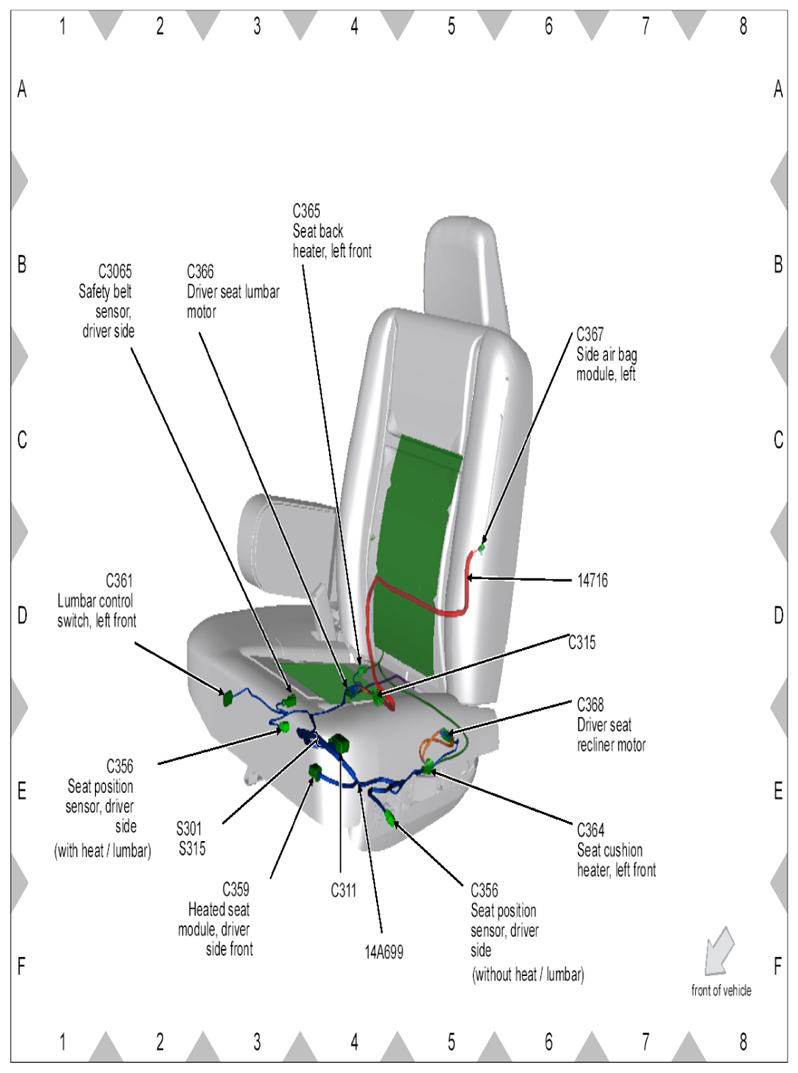

Fig 19: Identifying Driver Seat Wiring Harness Connectors Location
G07853593Courtesy of FORD MOTOR CO.

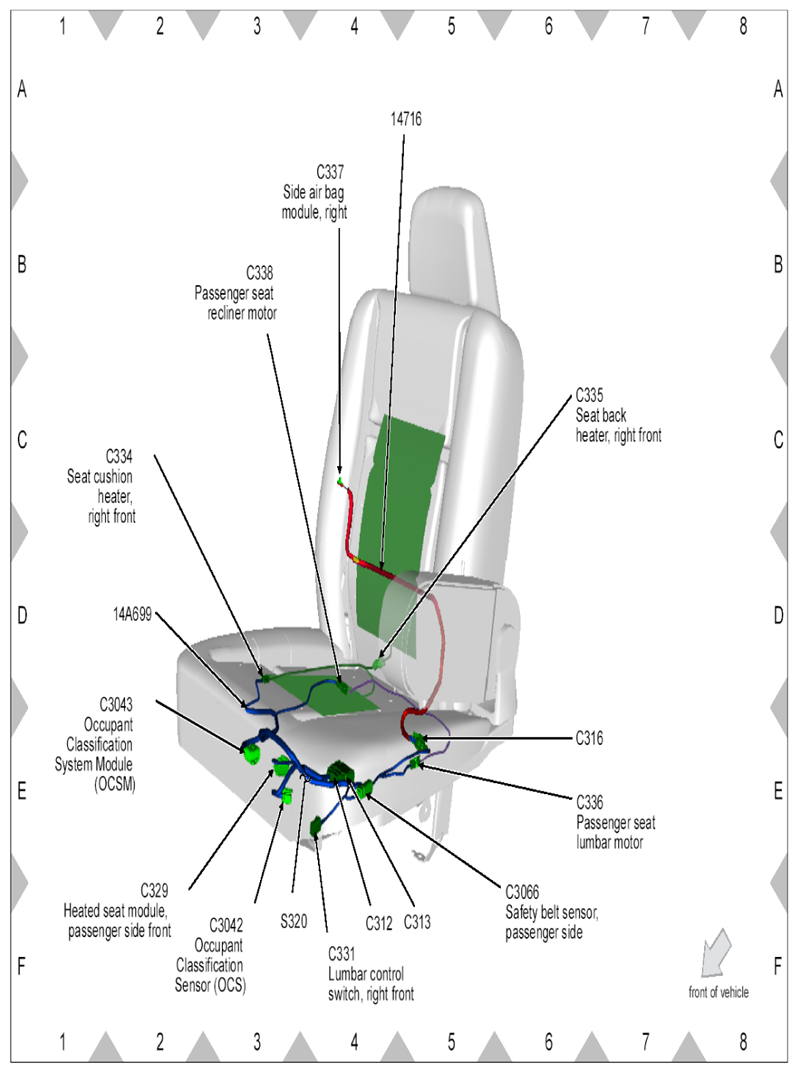

Fig 20: Identifying Passenger Seat Wiring Harness Connectors Location
G07853594Courtesy of FORD MOTOR CO.

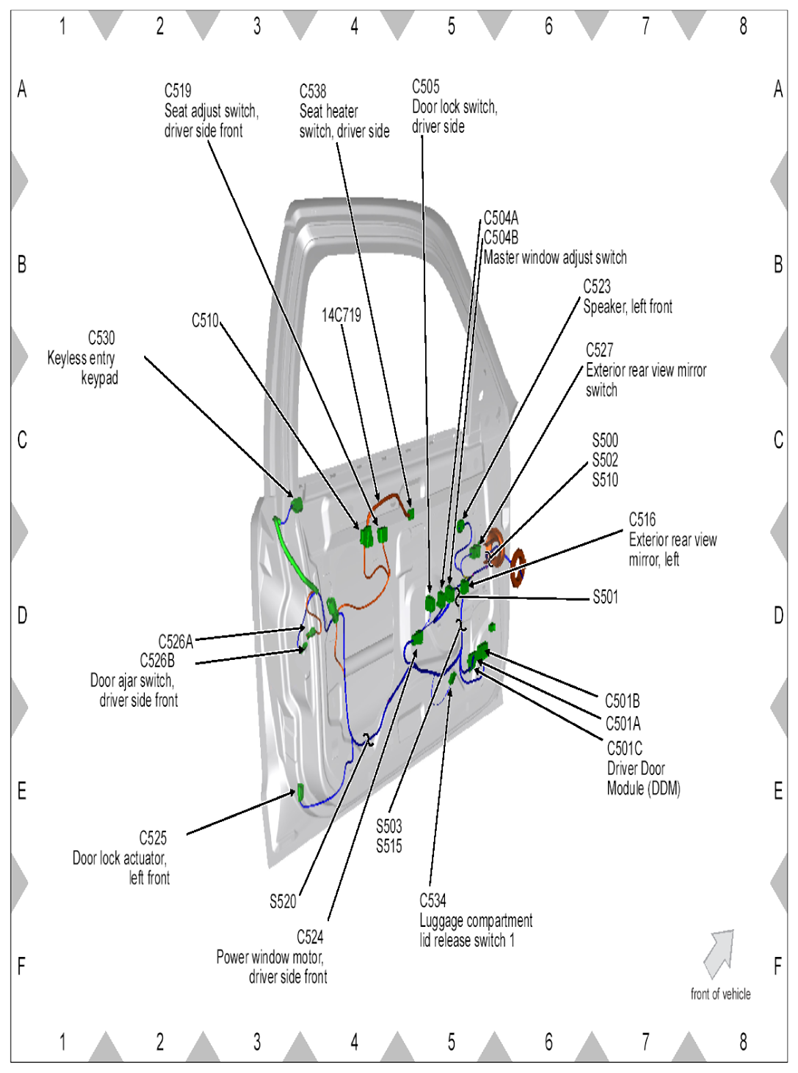

Fig 21: Identifying LH Driver Side Door Wiring Harness Connectors Location
G07853595Courtesy of FORD MOTOR CO.

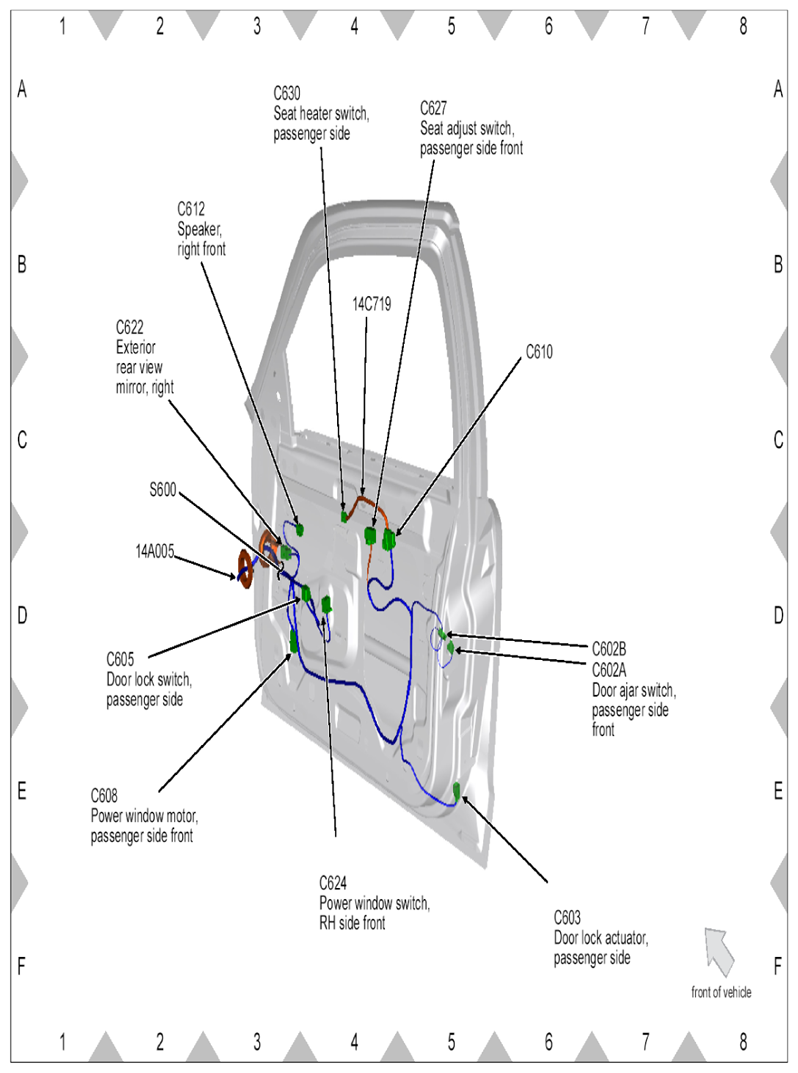

Fig 22: Identifying RH Driver Side Door Wiring Harness Connectors Location
G07853596Courtesy of FORD MOTOR CO.

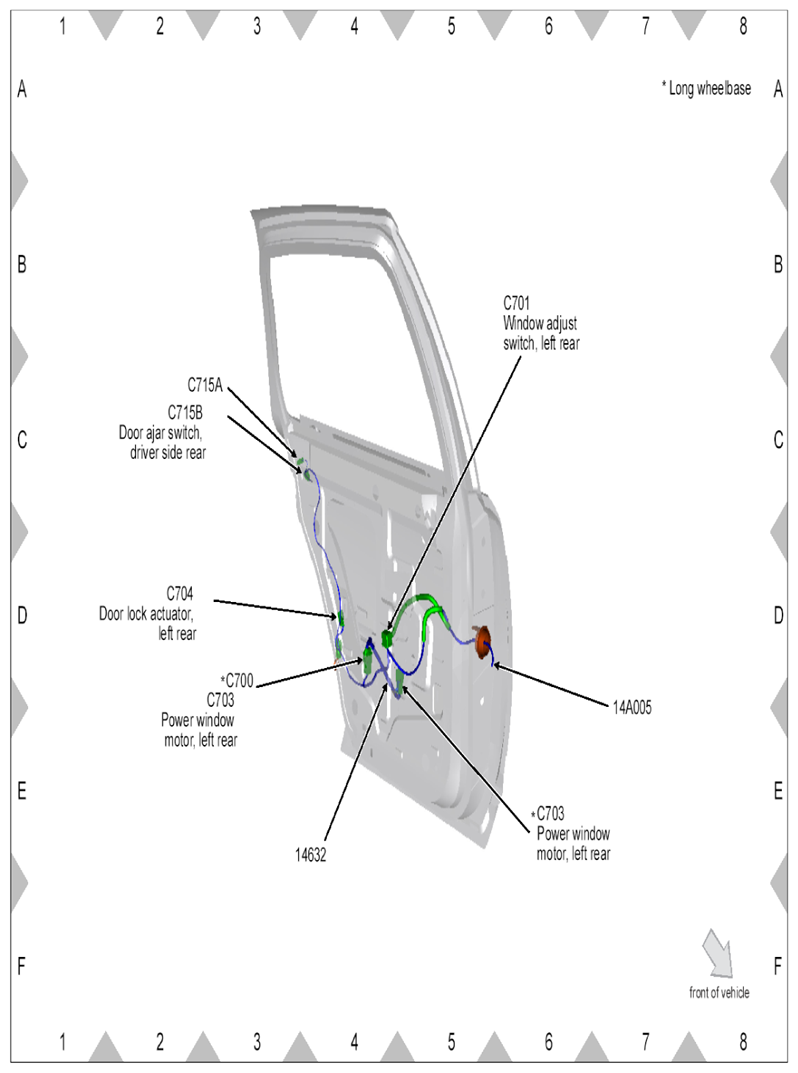

Fig 23: Identifying LH Passenger Side Door Wiring Harness Connectors Location
G07853597Courtesy of FORD MOTOR CO.

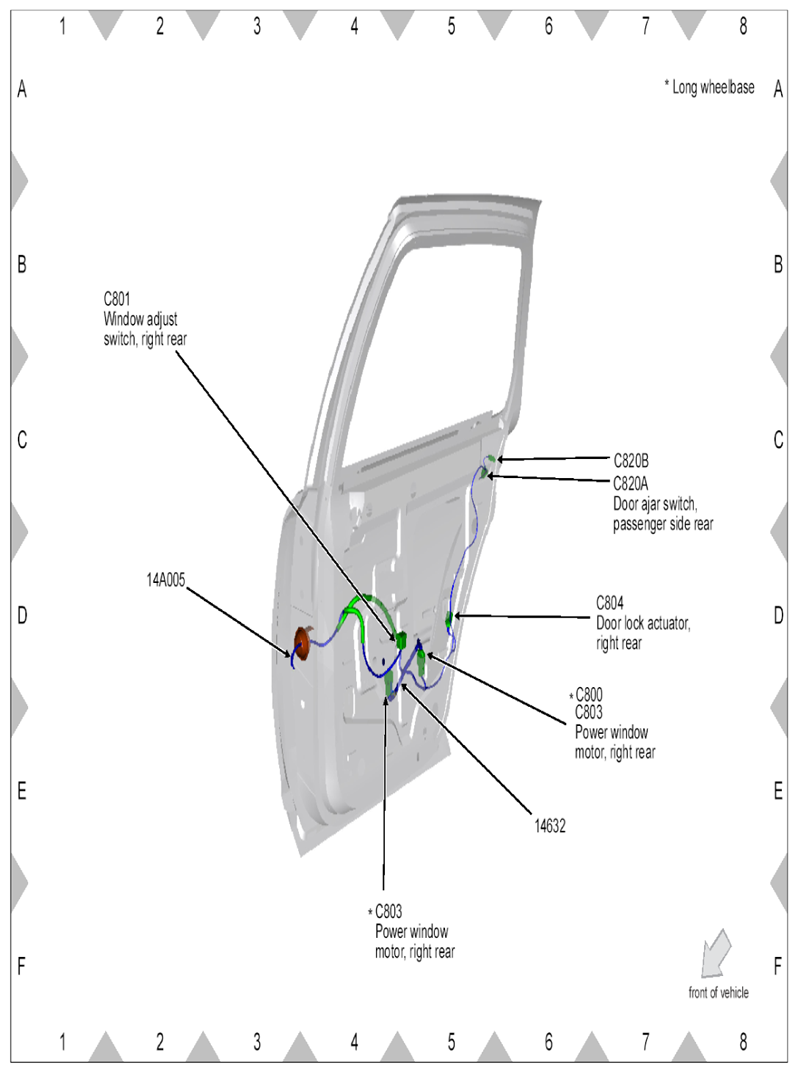

Fig 24: Identifying RH Passenger Side Door Wiring Harness Connectors Location
G07853598Courtesy of FORD MOTOR CO.

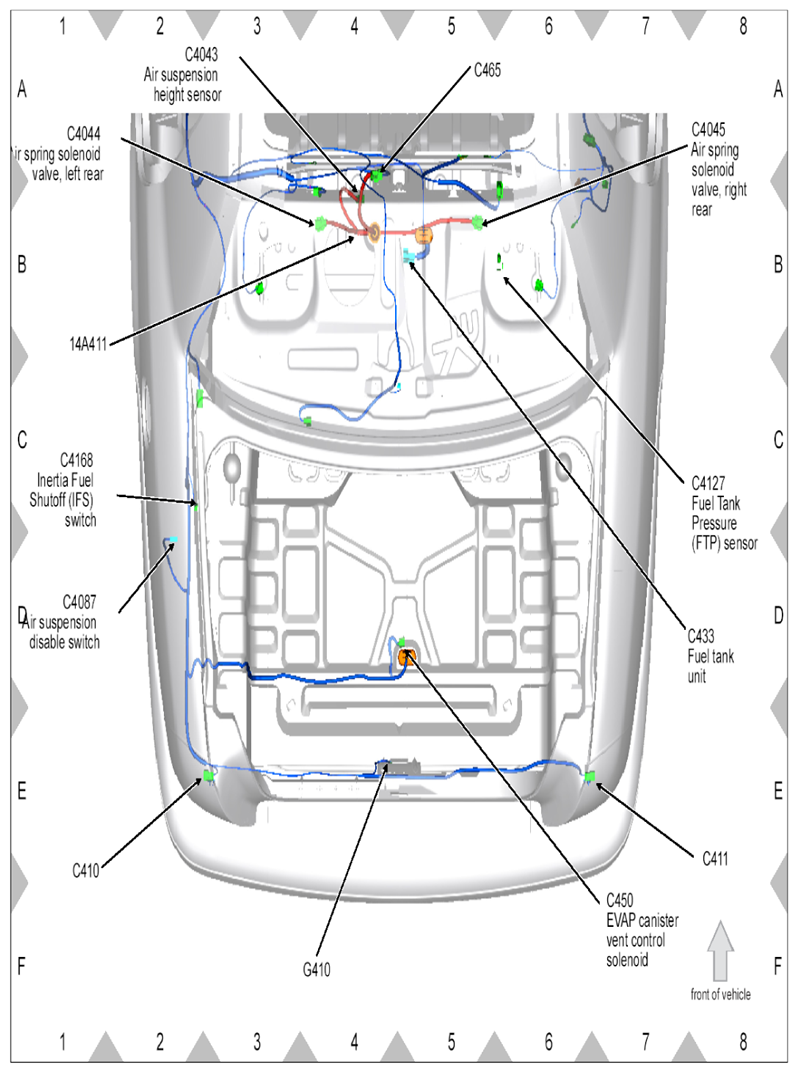

Fig 25: Identifying Rear Compartment Wiring Harness Connectors Location (1 Of 3)
G07853599Courtesy of FORD MOTOR CO.

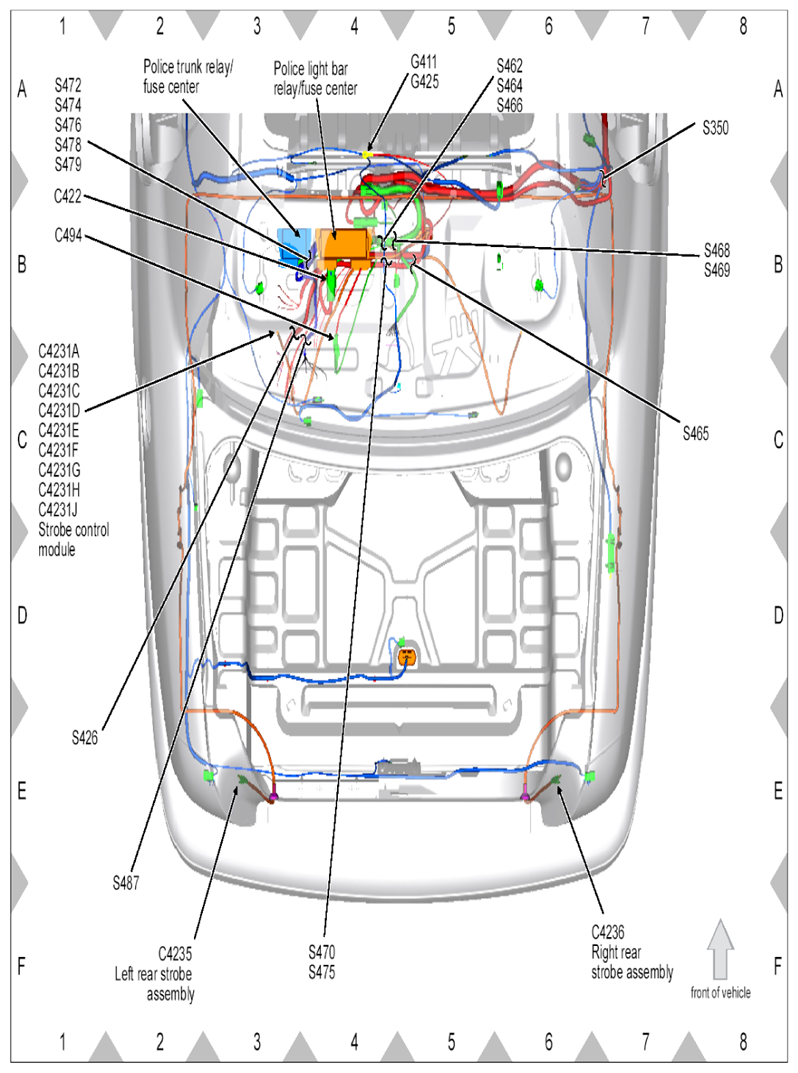

Fig 26: Identifying Rear Compartment Wiring Harness Connectors Location (2 Of 3)
G07853600Courtesy of FORD MOTOR CO.

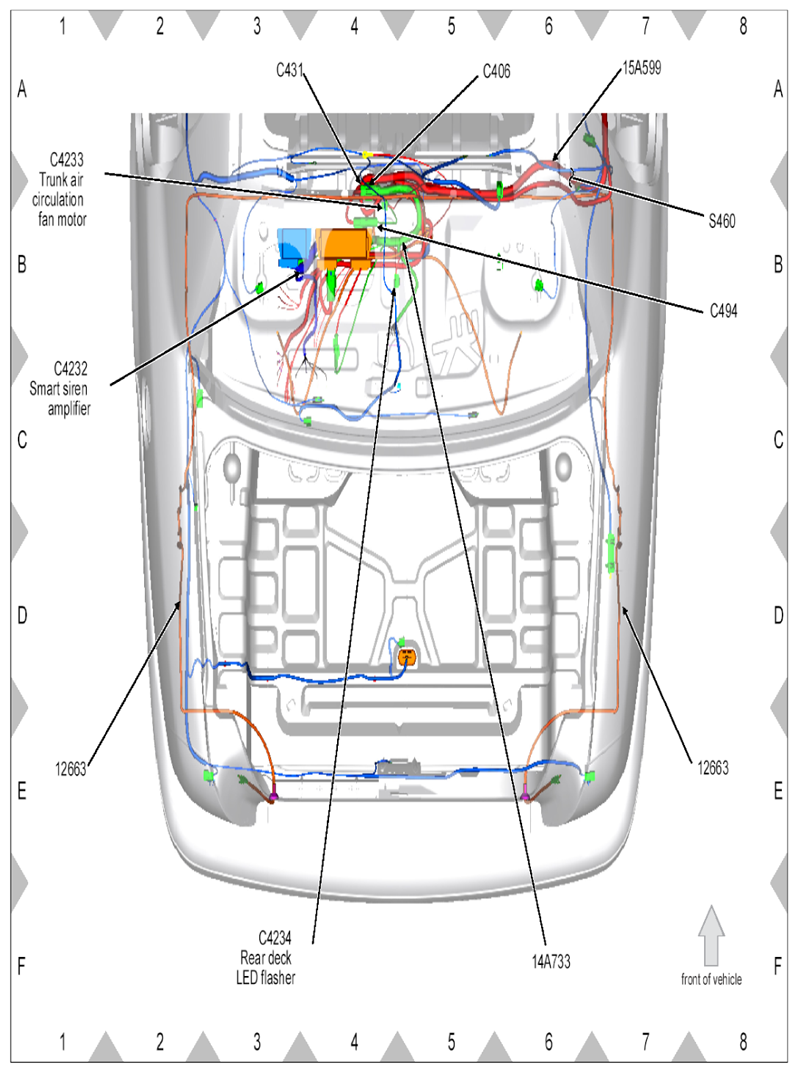

Fig 27: Identifying Rear Compartment Wiring Harness Connectors Location (3 Of 3)
G07853601Courtesy of FORD MOTOR CO.

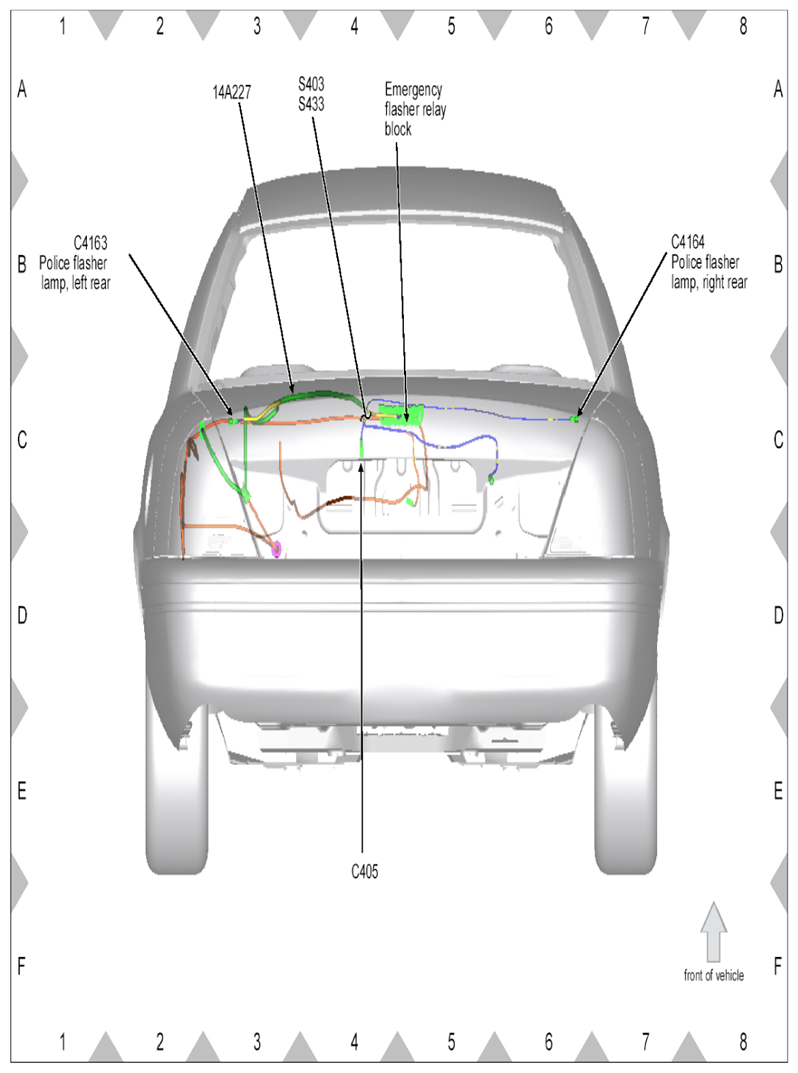

Fig 28: Identifying Vehicle Rear Side Wiring Harness Connectors Location (1 Of 2)
G07853602Courtesy of FORD MOTOR CO.

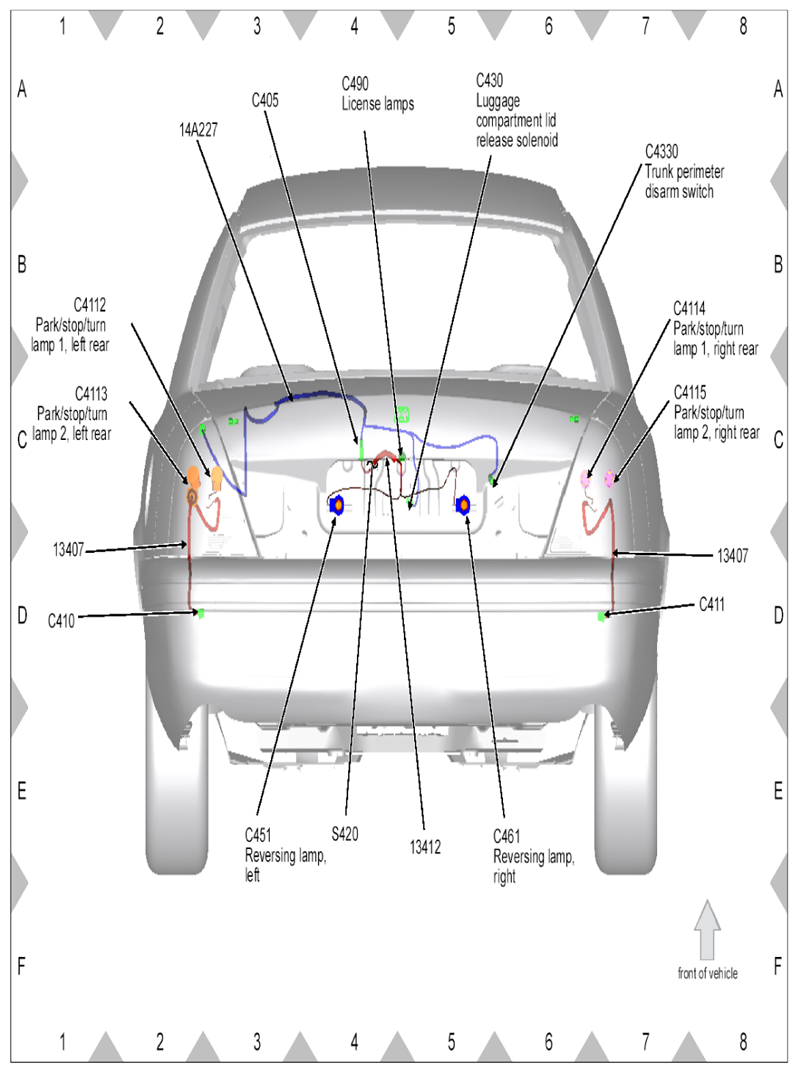

Fig 29: Identifying Vehicle Rear Side Wiring Harness Connectors Location (2 Of 2)
G07853603Courtesy of FORD MOTOR CO.

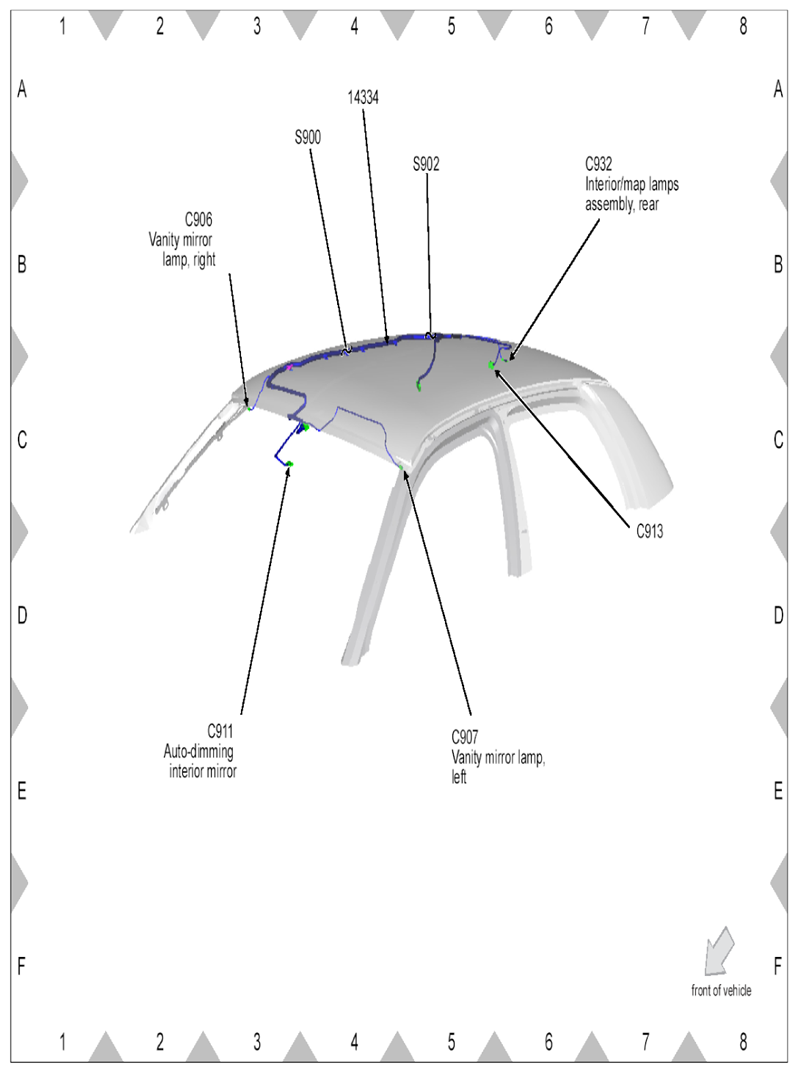

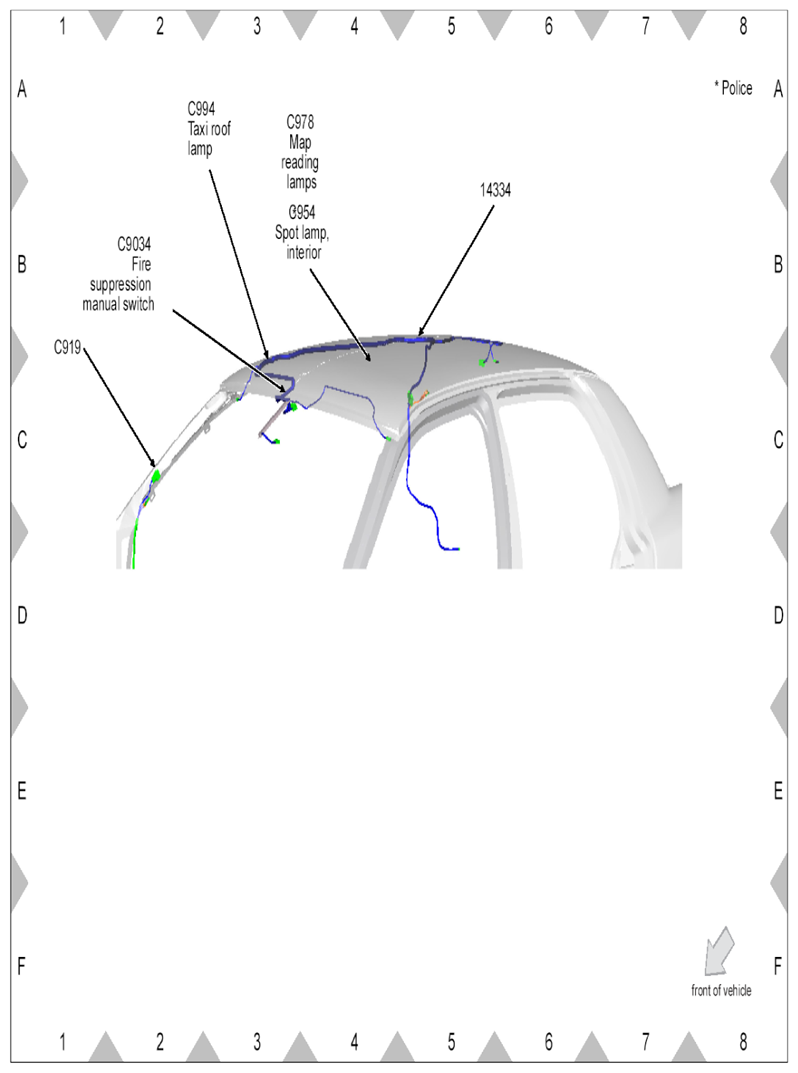

Fig 30: Identifying Roof Panel Wiring Harness Connectors Location (1 Of 2)
G07853604Courtesy of FORD MOTOR CO.
Fig 31: Identifying Roof Panel Wiring Harness Connectors Location (2 Of 2)
G07853605Courtesy of FORD MOTOR CO.
