Crown Victoria LX, 4.6 W
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Lighting Control Module
Lighting Control Module

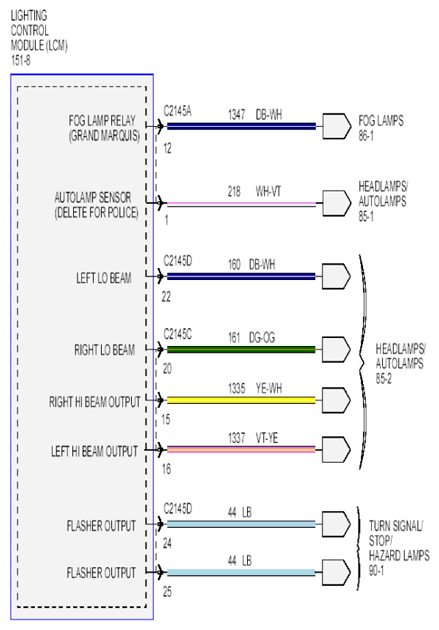

Fig 1: Lighting Control Module Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

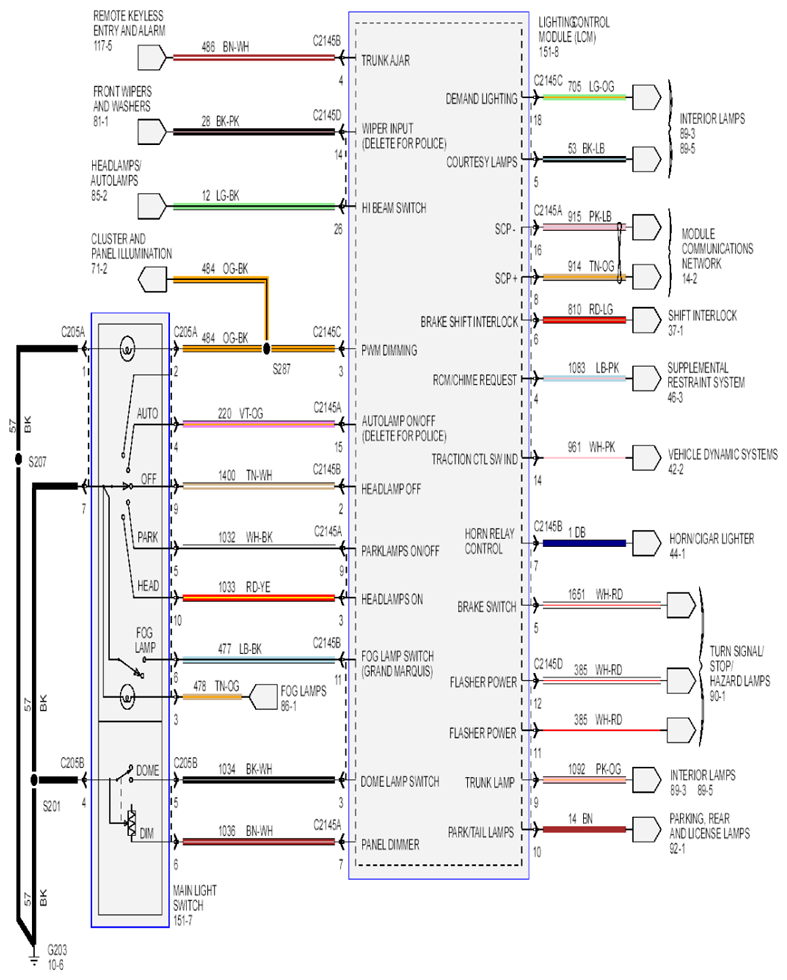

Fig 2: Lighting Control Module Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

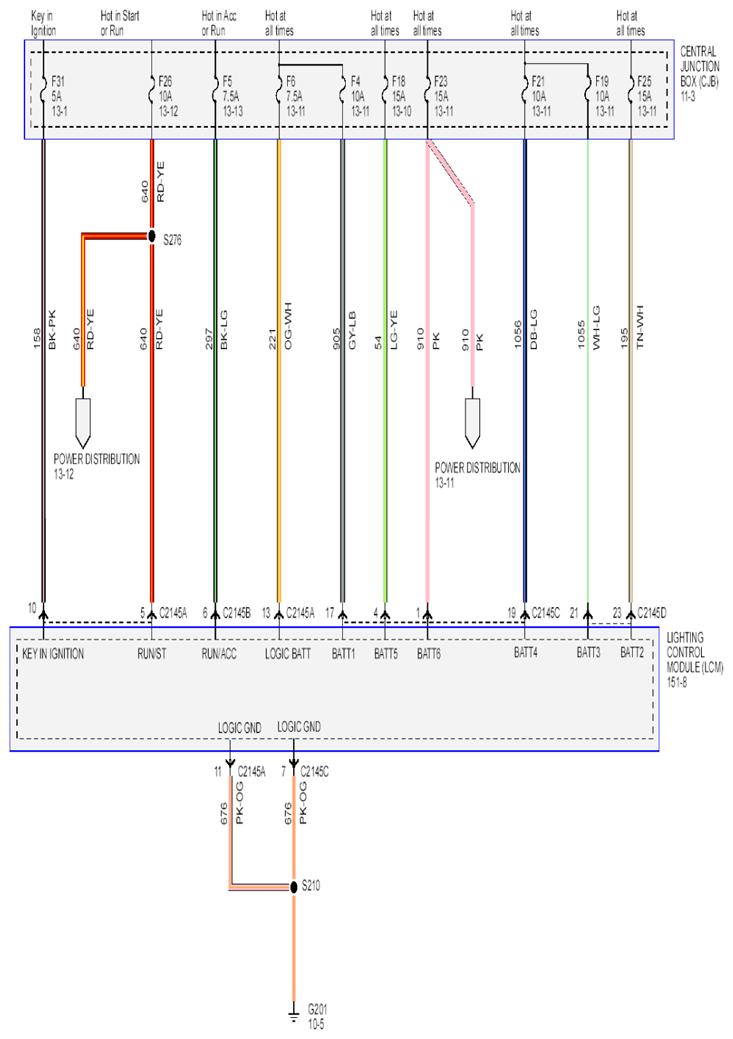

Fig 3: Lighting Control Module Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
