Piston Pin Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 4.6L (2V) article for the specification.
  1. Measure the piston pin diameter in 2 directions at the points shown in the illustration. Verify the diameter is within specification.

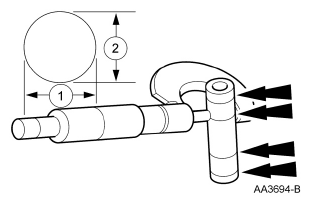

Fig 1: Measuring Piston Pin Diameter Using Micrometer
G07772970Courtesy of FORD MOTOR CO.
