Steering Column Shroud: Notes

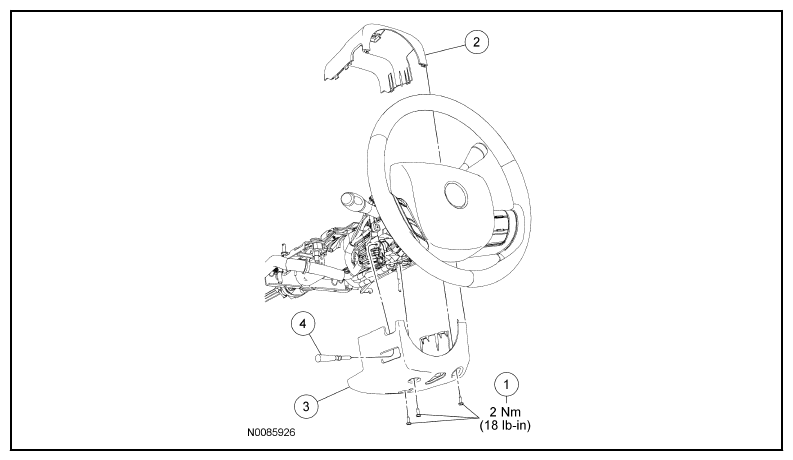

Fig 1: Steering Column Shroud Replacement Components With Torque Specifications
G07772890Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 55929 Lower steering column shroud screws (3 required)
2 3530 Upper steering column shroud
3 3530 Lower steering column shroud
4 3F609 Steering column tilt lever shank
