Fuel Pump Module Connector - C433

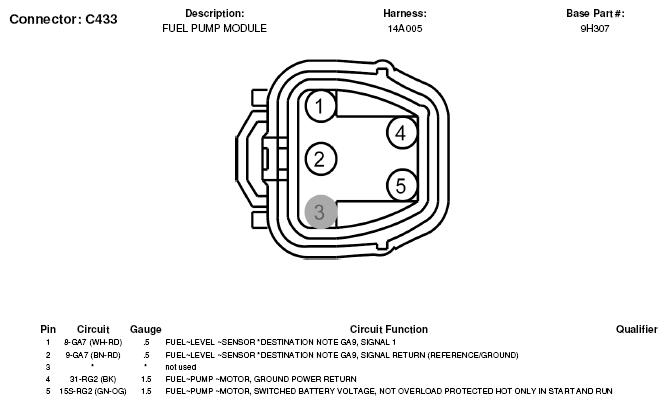

Fig 1: Fuel Pump Module Connector End View (C433)

G06376381

Courtesy of FORD MOTOR CO.
