Electronic Throttle Control Module Connectors - C1189

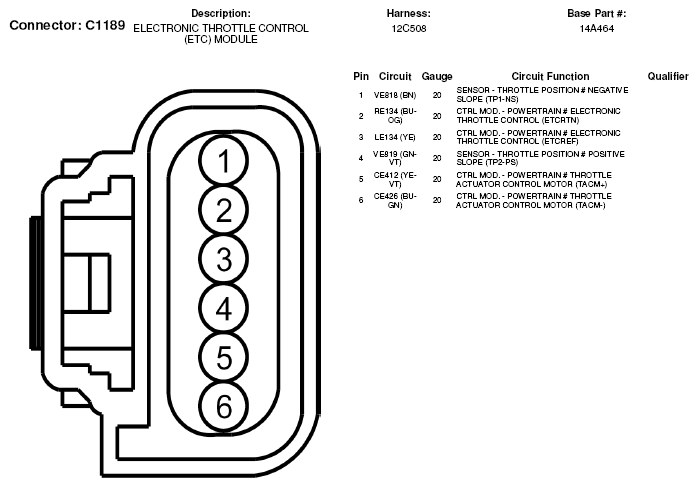

Fig 1: Electronic Throttle Control Module Connector End View (C1189)

G06376428

Courtesy of FORD MOTOR CO.
