Side Air Bag Module: Notes

NOTE: Passenger seat shown in figure, driver seat similar.

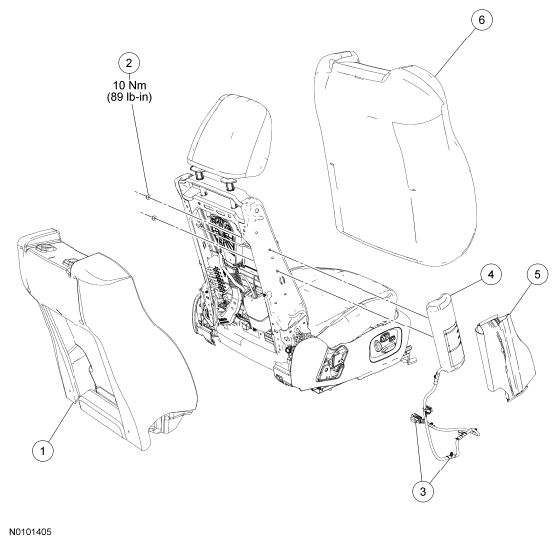

Fig 1: Side Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	64810	Backrest foam pad
2	W520111	Side air bag module nut (2 required)
3	-	Side air bag module wiring harness (part of 611D10)
4	611D10	Side air bag module
5	610E38	Side air bag module deployment chute
6	64416	Backrest cover
