Home >> Ford >> 2010 >> Taurus SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Rain Sensor Module Connector - C914

Rain Sensor Module Connector - C914

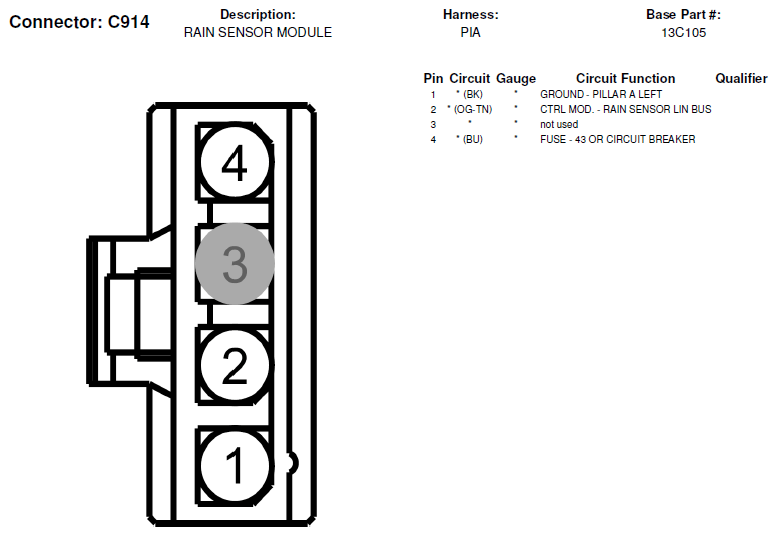

Fig 1: Rain Sensor Module Connector End View (C914)

G06413865

Courtesy of FORD MOTOR CO.
