Cruise-Control Module (C-CM): Material

MATERIAL SPECIFICATION

Item	Specification
Electrical Grease XG-12	WSB-M1C239-A

Cruise-Control Module (C-CM)

Fig 1: Identifying Cruise-Control Module (C-CM) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part	Number Description
1	17E811	Cruise-Control Module (C-CM) fascia cover
2	9E731	C-CM
3	W790214	C-CM ball socket grommets (3 required)

C-CM Bracket

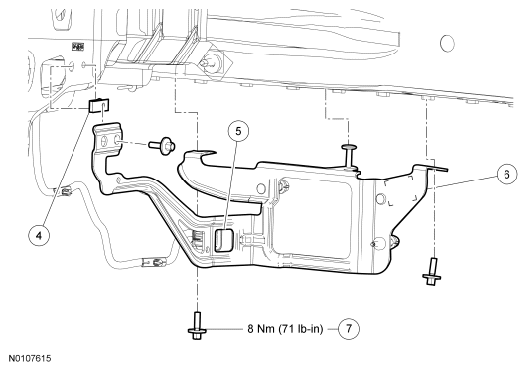

Fig 2: C-CM Bracket Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
4	W520812	C-CM bracket U-nut
5	-	C-CM electrical connector (part of 14290)
6	14C022	C-CM bracket
7	W710879	C-CM bracket bolts (3 required)
