Automatic Transmission - Automatic Transaxle/Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Notes
Main Control Valve Body: Notes

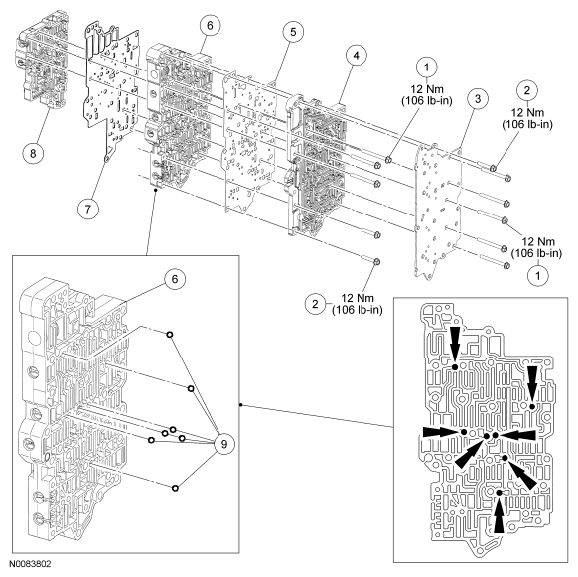

Fig 1: Main Control Valve Body Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
