Highbeam Control Module 2 Connector - C9115

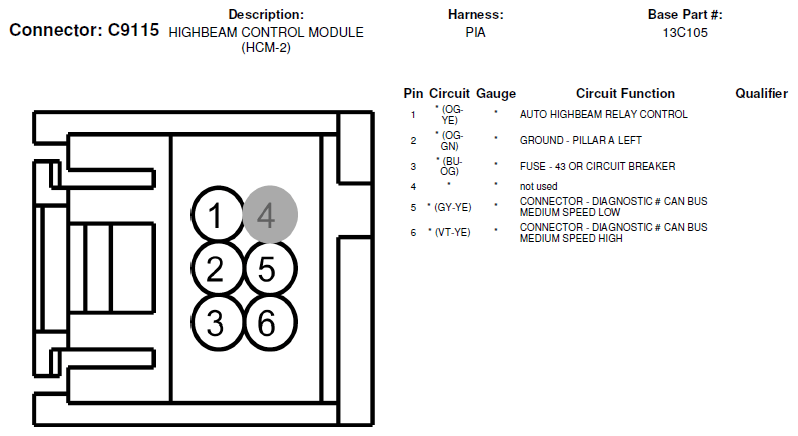

Fig 1: Highbeam Control Module 2 Connector End View (C9115)

G06414075

Courtesy of FORD MOTOR CO.
