Parking Aid Module (PAM): Notes

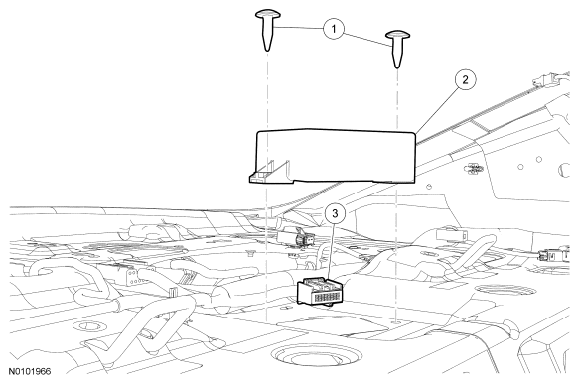

Fig 1: Identifying Parking Aid Module (PAM) Components
G06260957Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W706350 Pin-type retainers (2 required)
2 15K866 Parking Aid Module (PAM)
3 - PAM  electrical connector (part of 14A005)
