Ambient Lighting Switch Connector - C2393

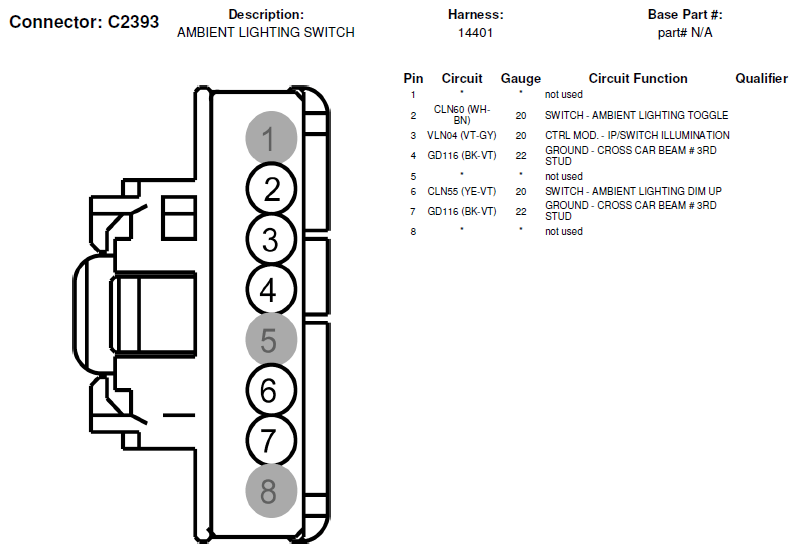

Fig 1: Ambient Lighting Switch Connector End View (C2393)

G06413963

Courtesy of FORD MOTOR CO.
