Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Engine (2.3L)

G00458428

Courtesy of FORD MOTOR CO.

Fig 2: Right Side Of Engine (2.3L)

G00458429

Courtesy of FORD MOTOR CO.

Fig 3: Left Side Of Engine (4.0L)

G00458432

Courtesy of FORD MOTOR CO.

Fig 4: Right Side Of Engine (4.0L)

G00458433

Courtesy of FORD MOTOR CO.

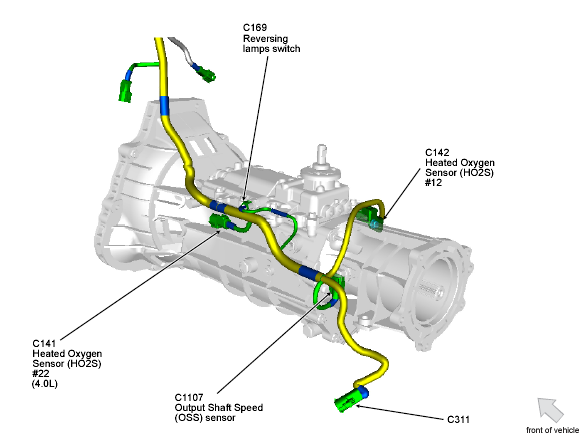

Fig 5: Manual Transmission

G00476635

Courtesy of FORD MOTOR CO.

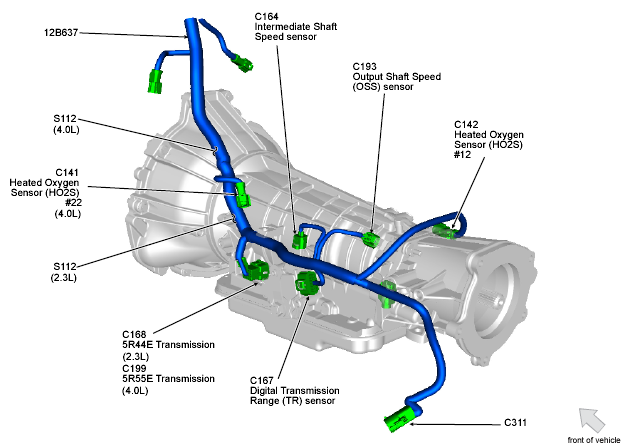

Fig 6: Automatic Transmission

G00476636

Courtesy of FORD MOTOR CO.

Fig 7: Rear Of Dash

G00476637

Courtesy of FORD MOTOR CO.

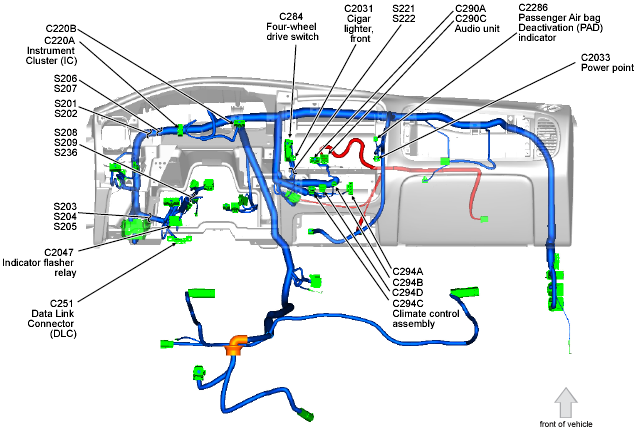

Fig 8: Front Of Dash

G00476638

Courtesy of FORD MOTOR CO.

Fig 9: Regular Cab

G00458439

Courtesy of FORD MOTOR CO.

Fig 10: Super Cab (2-Door)

G00458440

Courtesy of FORD MOTOR CO.

Fig 11: Super Cab (4-Door)

G00458441

Courtesy of FORD MOTOR CO.

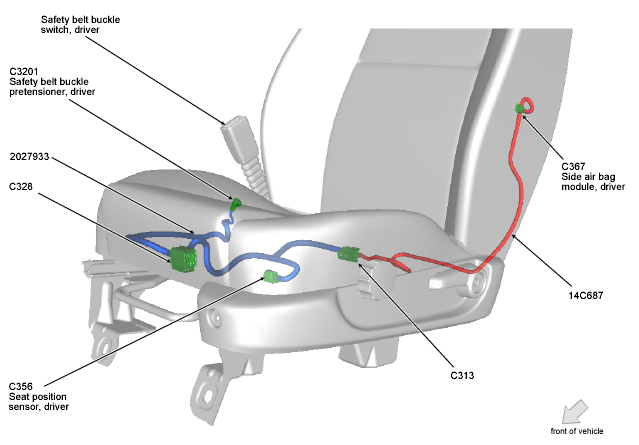

Fig 12: Driver's Seat

G00476642

Courtesy of FORD MOTOR CO.

Fig 13: Front Passenger's Seat

G00476643

Courtesy of FORD MOTOR CO.

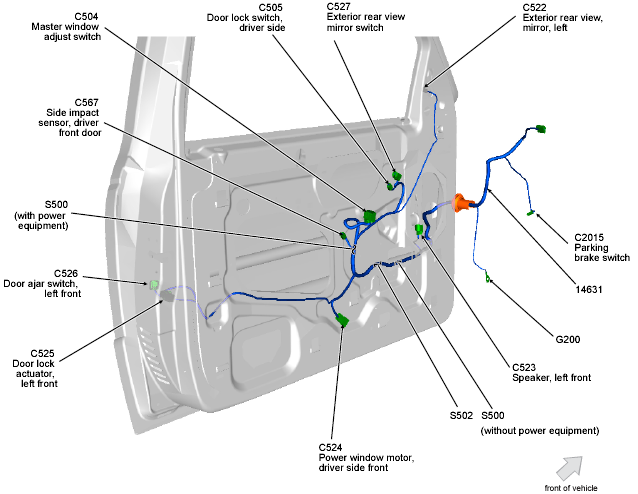

Fig 14: Driver's Door

G00476644

Courtesy of FORD MOTOR CO.

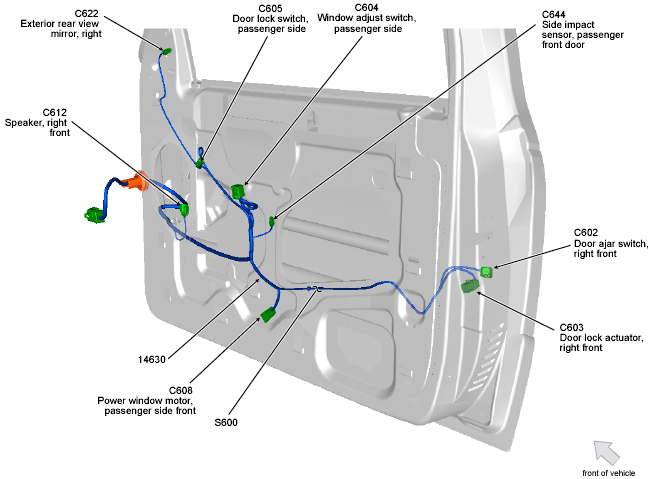

Fig 15: Front Passenger's Door

G00476645

Courtesy of FORD MOTOR CO.

Fig 16: Right Rear Door

G00458446

Courtesy of FORD MOTOR CO.

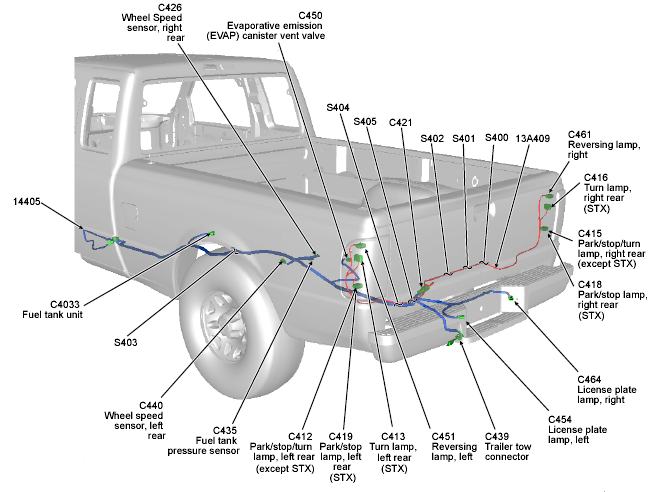

Fig 17: Truck Bed

G00476647

Courtesy of FORD MOTOR CO.

Fig 18: Battery Junction Box (2.3L)

G00458448

Courtesy of FORD MOTOR CO.

Fig 19: Battery Junction Box (4.0L)

G00458449

Courtesy of FORD MOTOR CO.

Fig 20: Smart Junction Box

G00458450

Courtesy of FORD MOTOR CO.

Fig 21: Engine Compartment (2.3L)

G00476633

Courtesy of FORD MOTOR CO.

Fig 22: Engine Compartment (4.0L)

G00476634

Courtesy of FORD MOTOR CO.

Fig 23: Front Of Dash & Front Floor Wiring

G00476639

Courtesy of FORD MOTOR CO.

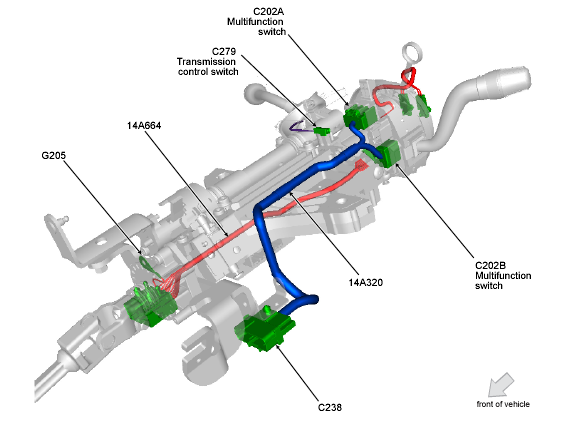

Fig 24: Steering Column

G00476640

Courtesy of FORD MOTOR CO.

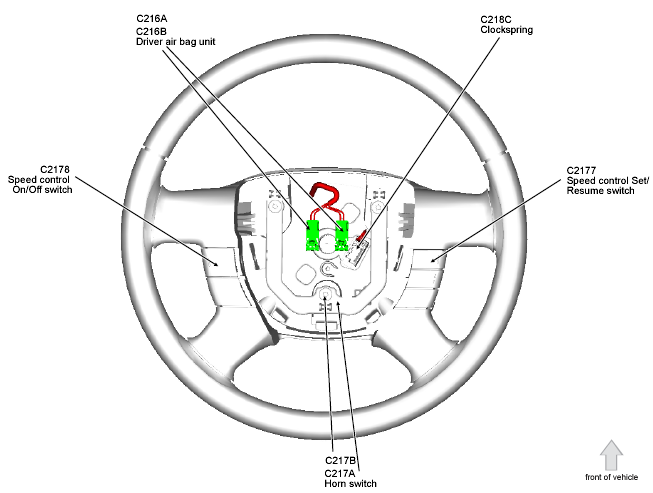

Fig 25: Steering Wheel

G00476641

Courtesy of FORD MOTOR CO.

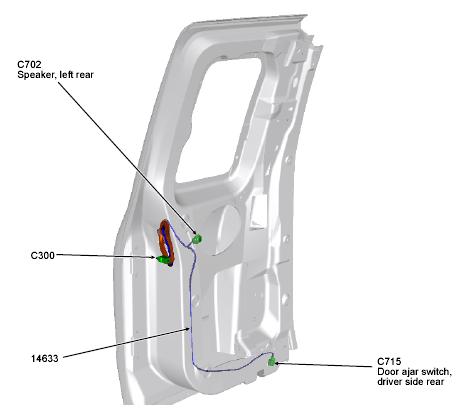

Fig 26: Left Rear Door

G00476646

Courtesy of FORD MOTOR CO.
