Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

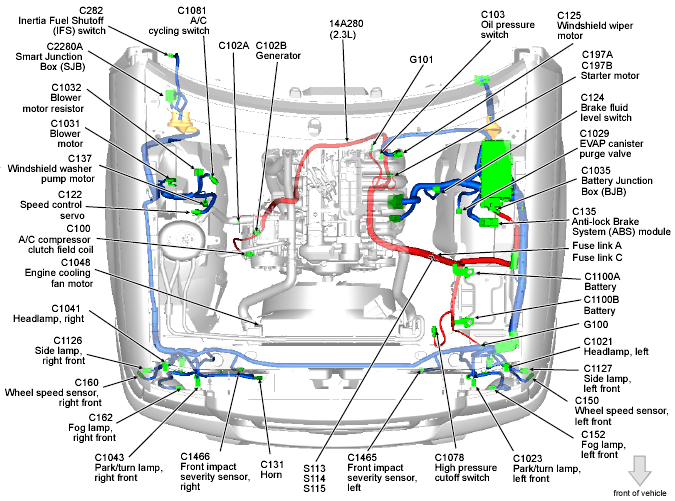

| Battery Junction Box (BJB) | Left rear of engine compartment. See Figure. |
| Fuse Link A (2.3L) | Left side of engine compartment. See Figure. |

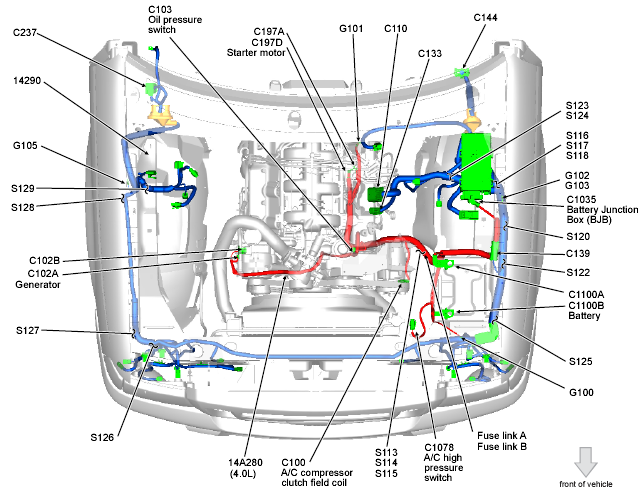

| Fuse Link A (4.0L) | Left side of engine compartment. See Figure. |
| Fuse Link B | Left side of engine compartment. See Figure. |
| Fuse Link C | Left side of engine compartment. See Figure. |

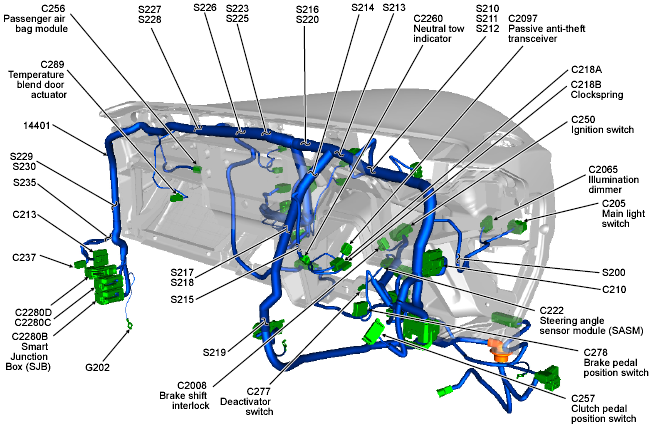

| Smart Junction Box (SJB) | Right kick panel. See Figure. |
