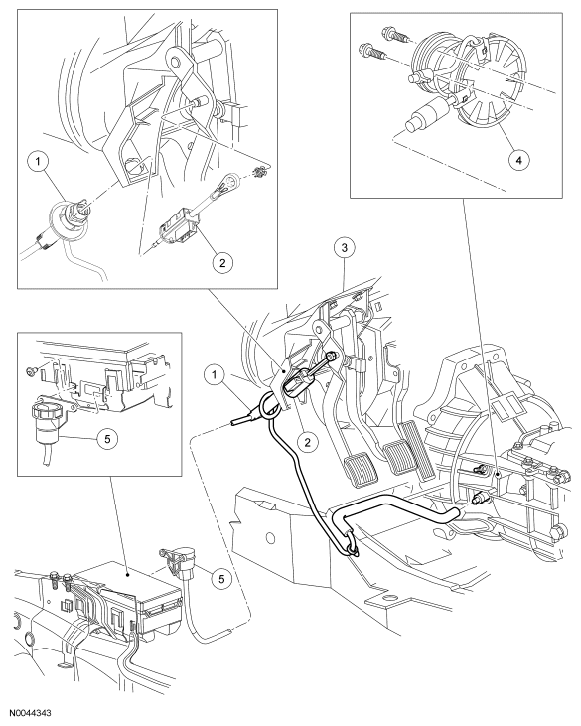

Clutch Controls Exploded View - 2.3L Engines
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO. PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
7A543 |
Clutch master cylinder |
| 2 |
11A152 |
Clutch Pedal Position (CPP) switch and push rod |
| 3 |
2450 |
Brake and clutch pedal support bracket |
| 4 |
7A508 |
Clutch slave cylinder/clutch release hub and bearing |
| 5 |
7K500 |
Clutch reservoir and tubing |
