Steering Wheel Rotation Sensor: Notes

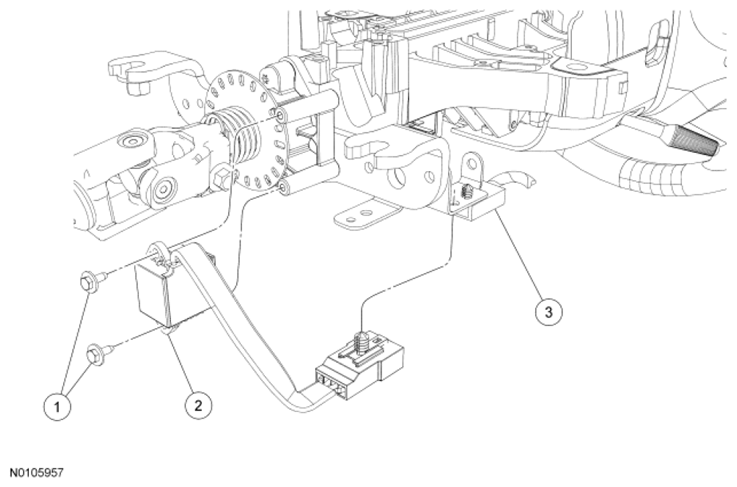

Fig 1: Identifying Steering Wheel Rotation Sensor Components
G06515412Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W506942 Steering wheel rotation sensor bolts (2 required)
2 3F818 Steering wheel rotation sensor
3 - Steering wheel rotation sensor electrical connector (part of 19D887)
