Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00466880

Courtesy of FORD MOTOR CO.

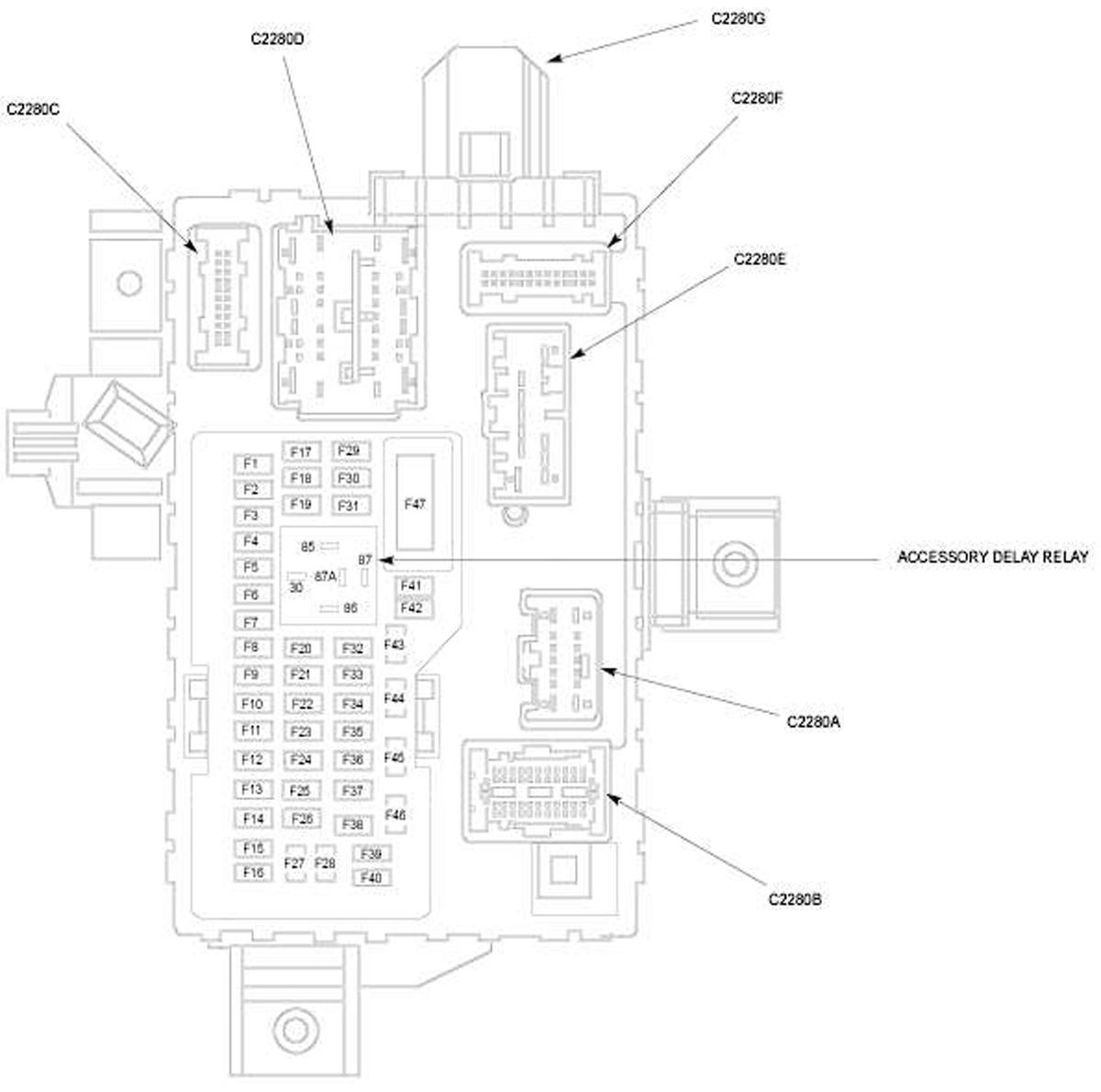

Fig 2: Smart Junction Box (SJB)

G00466881

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment (Gas)

G00466882

Courtesy of FORD MOTOR CO.

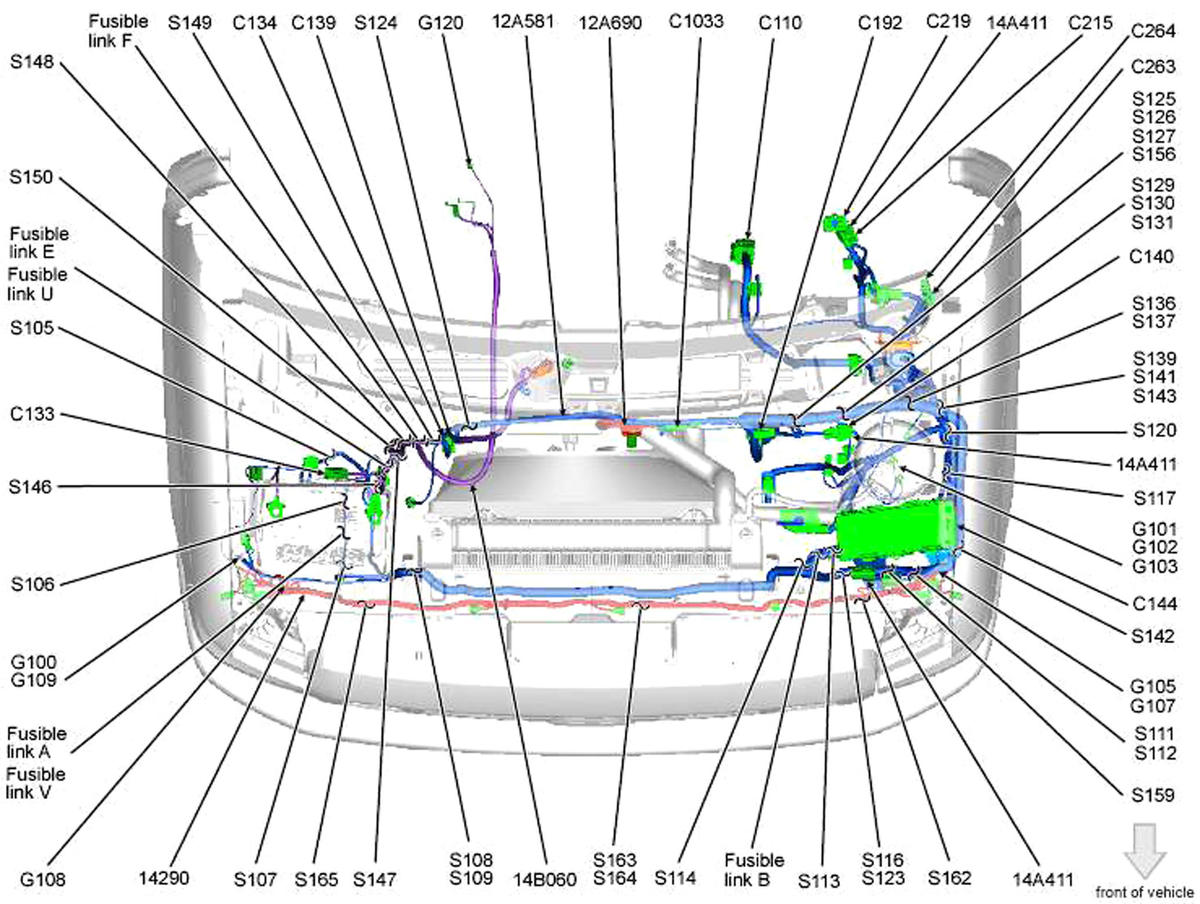

Fig 4: Engine Compartment (Gas)

G00466883

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment (Diesel)

G00475529

Courtesy of FORD MOTOR CO.

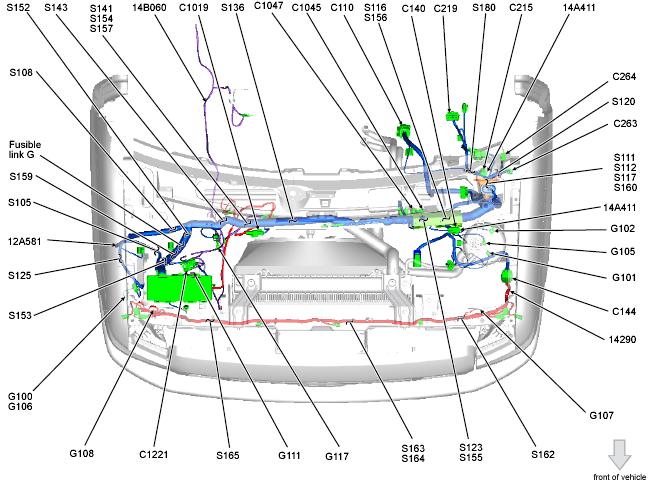

Fig 6: Engine Compartment (Diesel)

G00475530

Courtesy of FORD MOTOR CO.

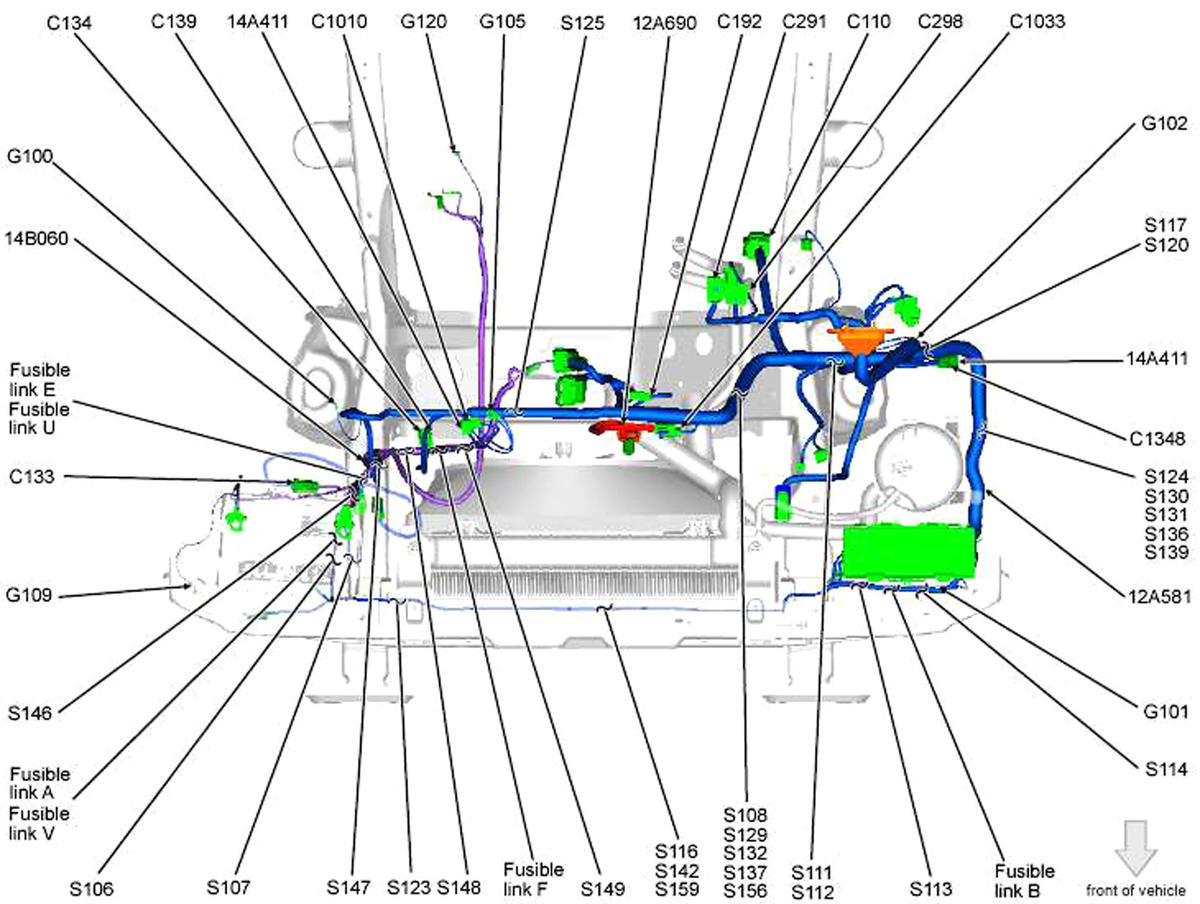

Fig 7: Engine Compartment (Stripped Chassis)

G00475531

Courtesy of FORD MOTOR CO.

Fig 8: Engine Compartment (Stripped Chassis)

G00466887

Courtesy of FORD MOTOR CO.

Fig 9: Top & Front Of Engine (4.6L)

G00466888

Courtesy of FORD MOTOR CO.

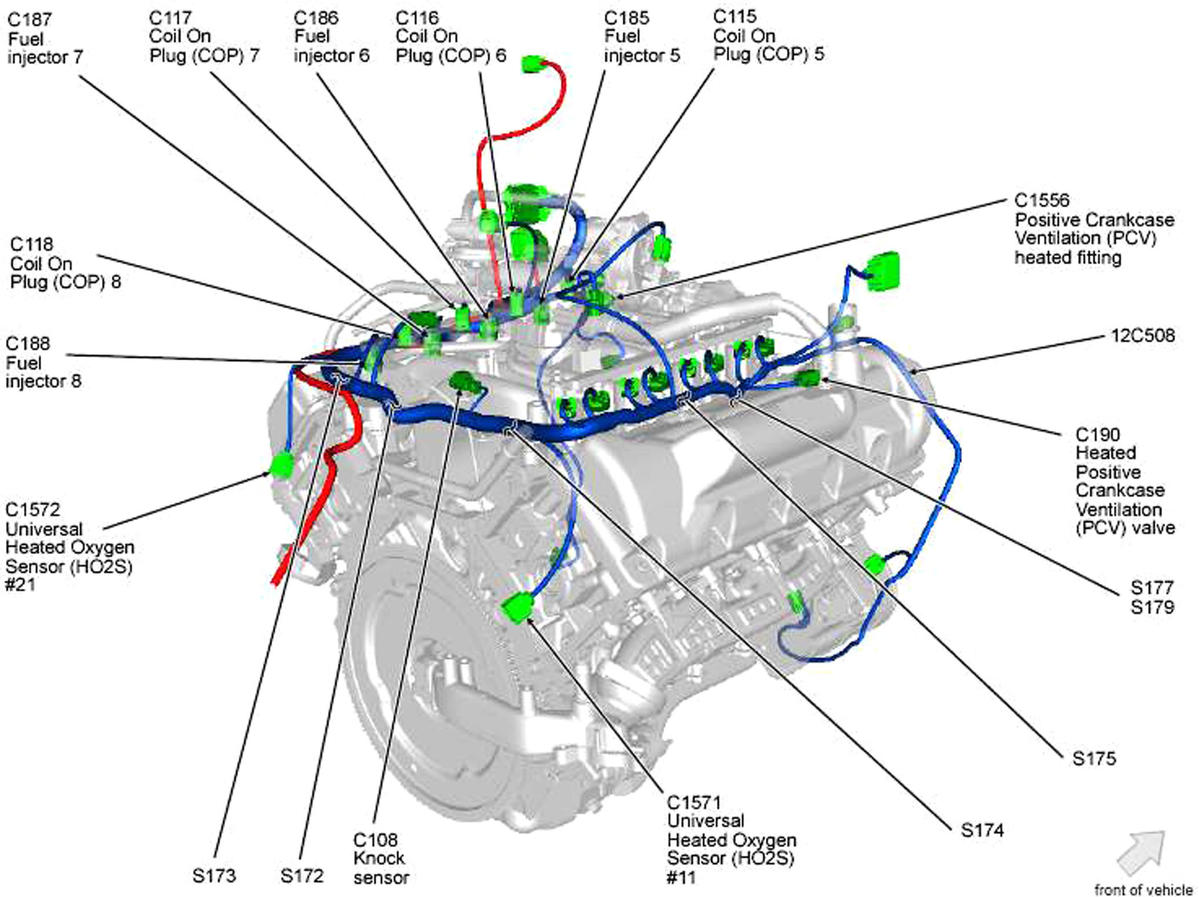

Fig 10: Top & Rear Of Engine (4.6L)

G00466889

Courtesy of FORD MOTOR CO.

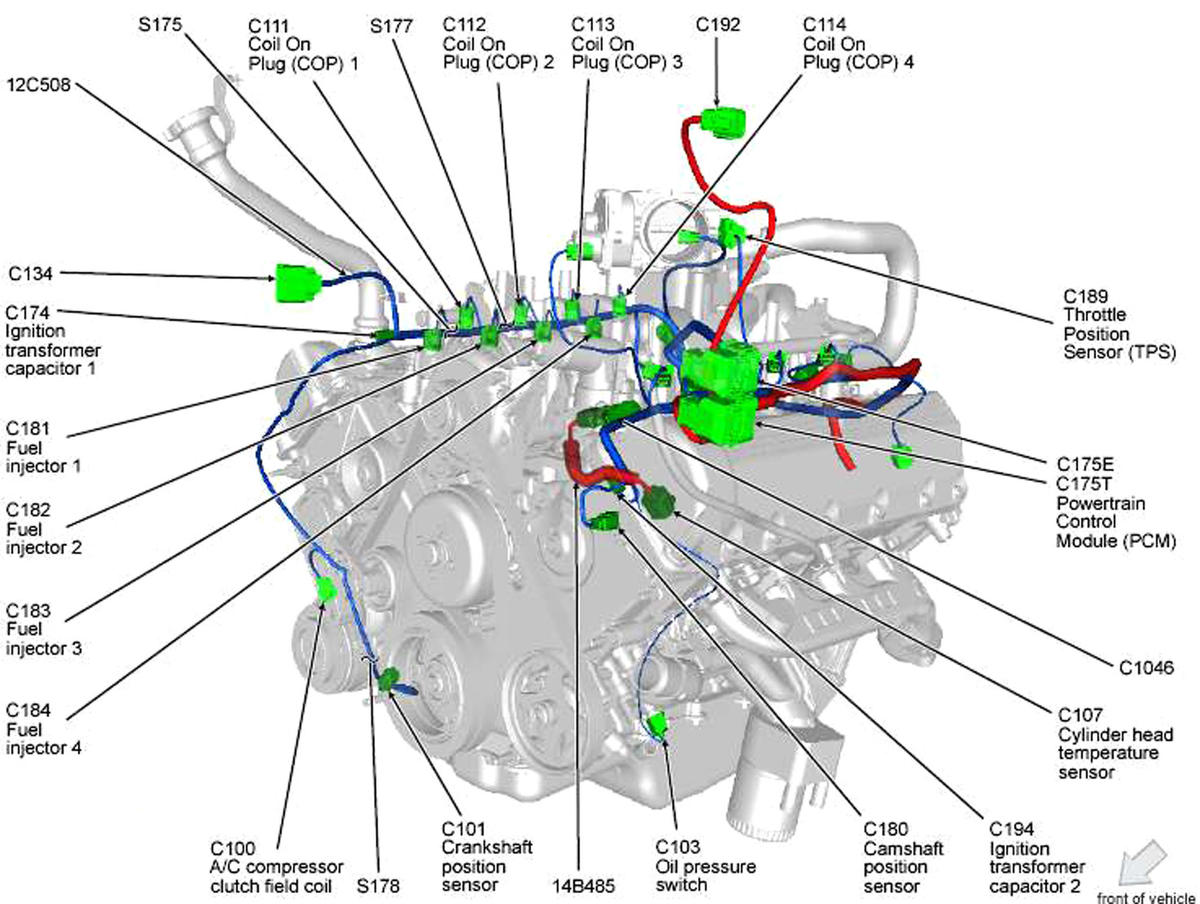

Fig 11: Top & Front Of Engine (5.4L)

G00466890

Courtesy of FORD MOTOR CO.

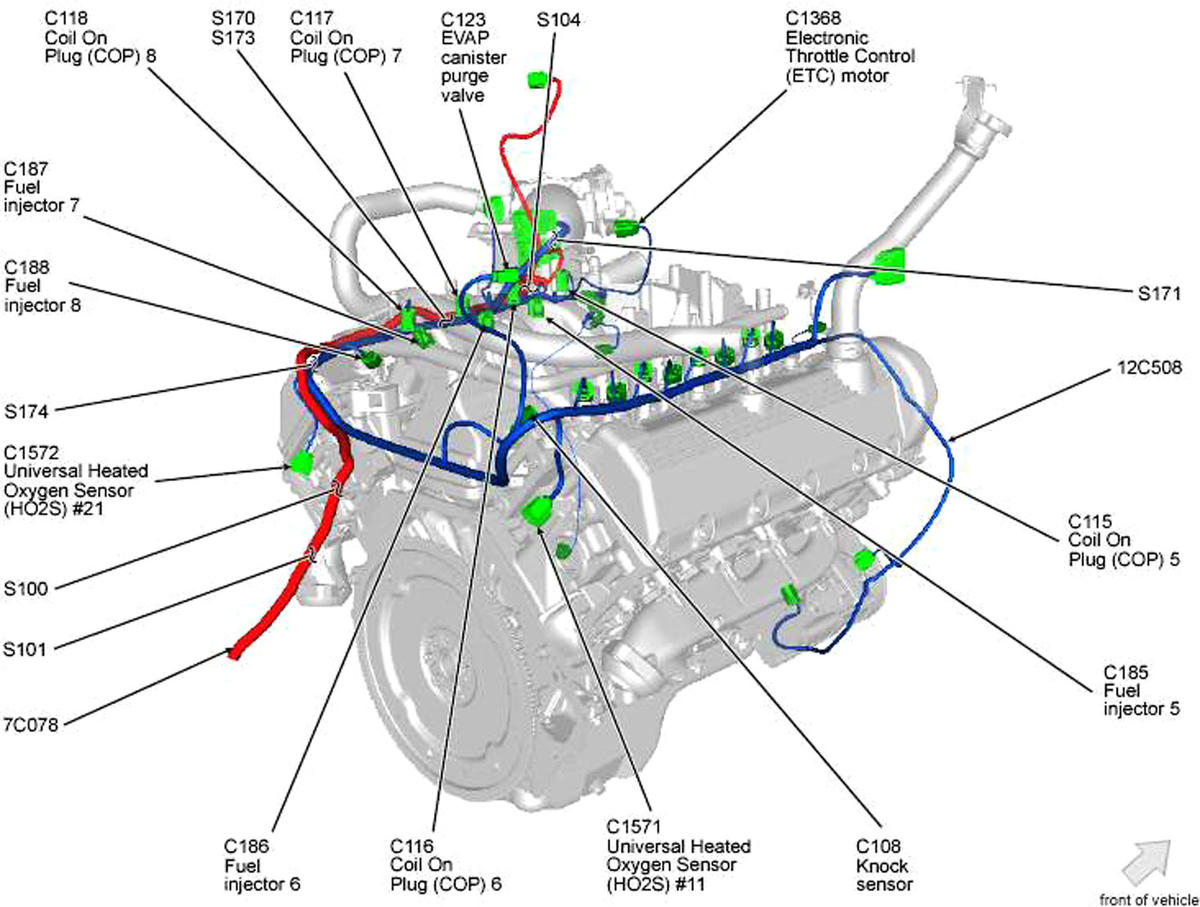

Fig 12: Top & Rear Of Engine (5.4L)

G00466891

Courtesy of FORD MOTOR CO.

Fig 13: Top & Front Of Engine (6.0L)

G00475532

Courtesy of FORD MOTOR CO.

Fig 14: Top & Rear Of Engine (6.0L)

G00475533

Courtesy of FORD MOTOR CO.

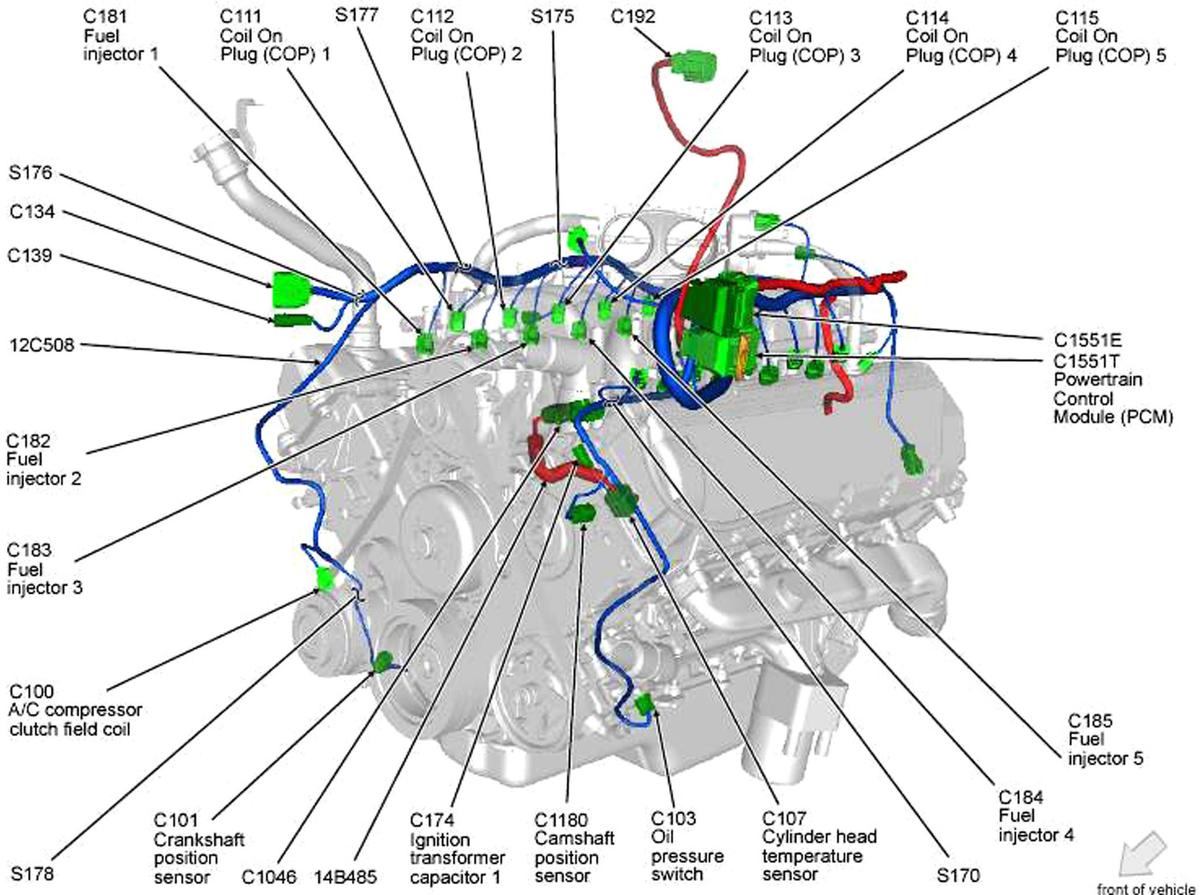

Fig 15: Top & Front Of Engine (6.8L)

G00466894

Courtesy of FORD MOTOR CO.

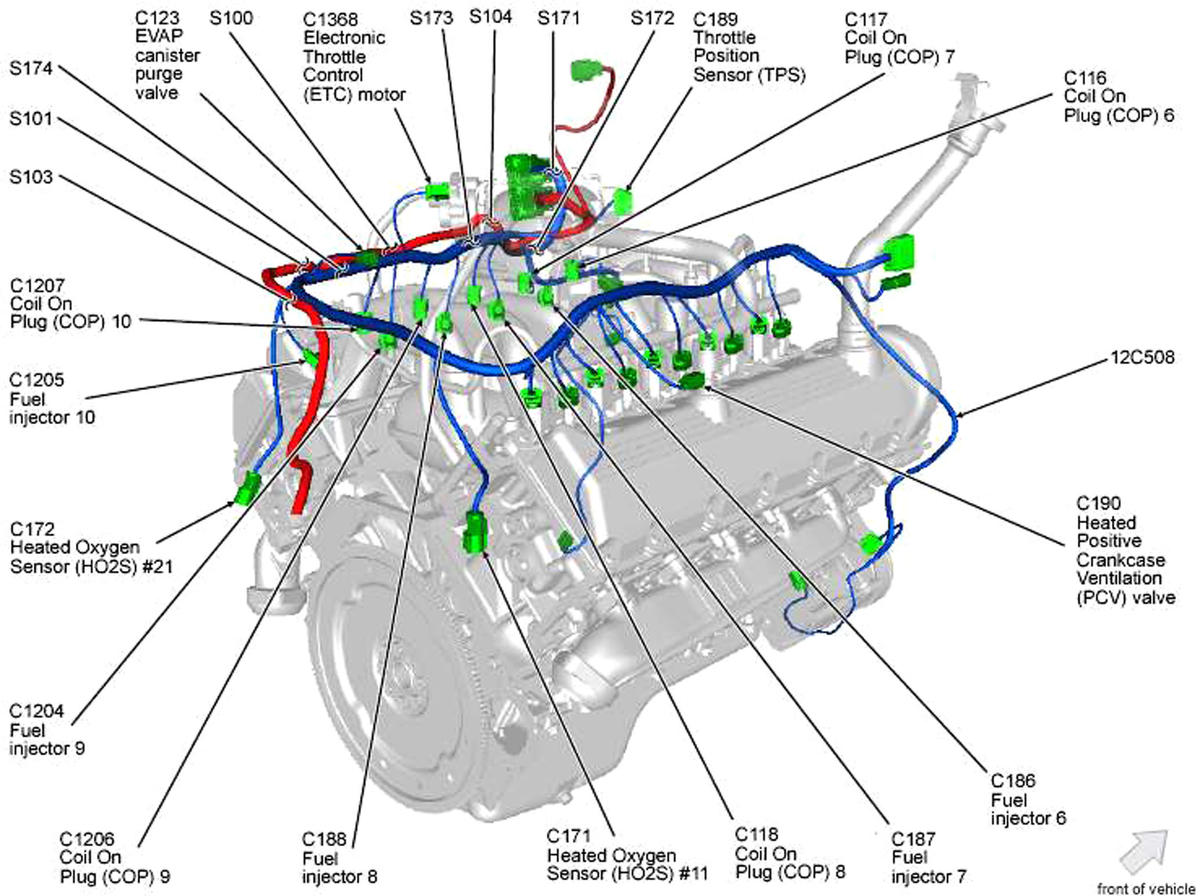

Fig 16: Top & Rear Of Engine (6.8L)

G00466895

Courtesy of FORD MOTOR CO.

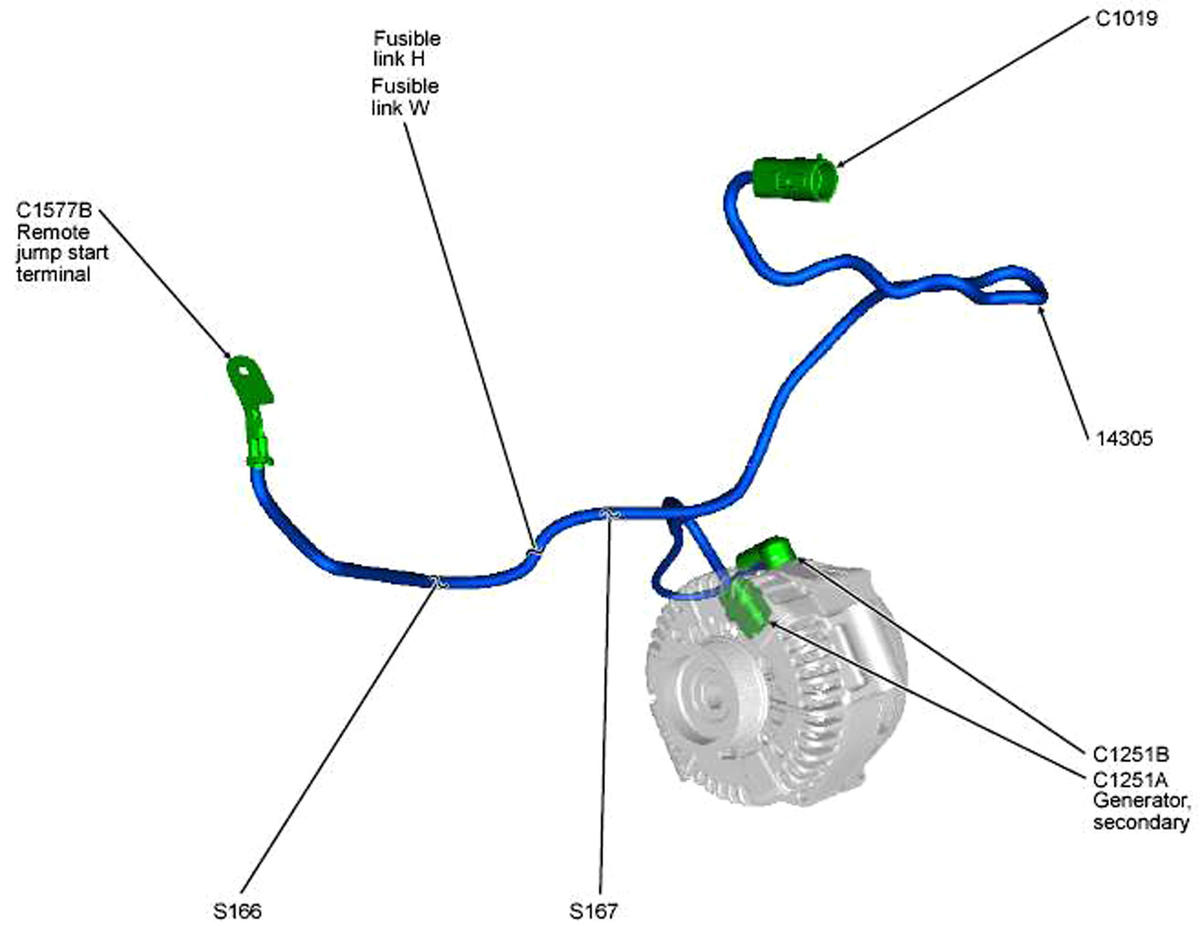

Fig 17: Dual Generators (Diesel)

G00466896

Courtesy of FORD MOTOR CO.

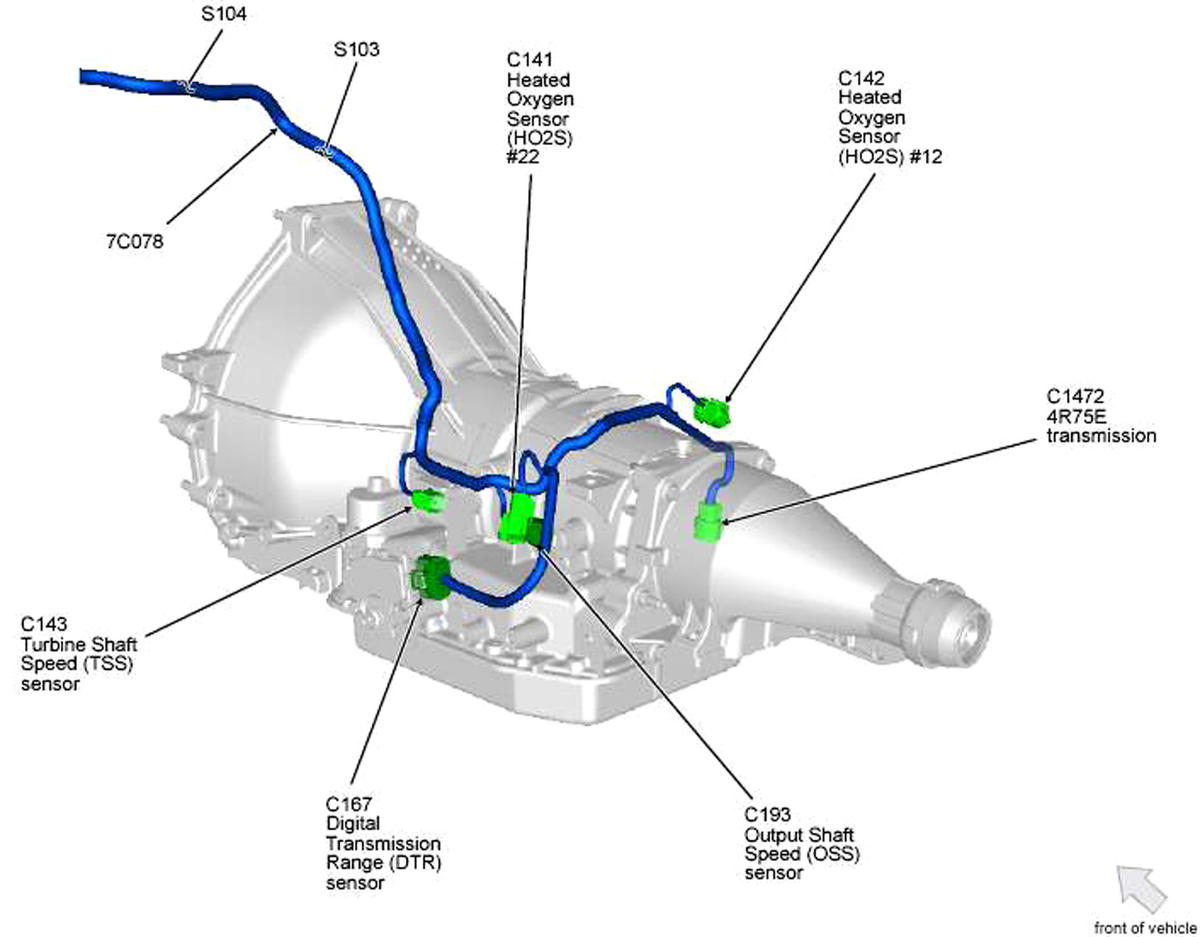

Fig 18: Automatic Transmission (4R75E)

G00466897

Courtesy of FORD MOTOR CO.

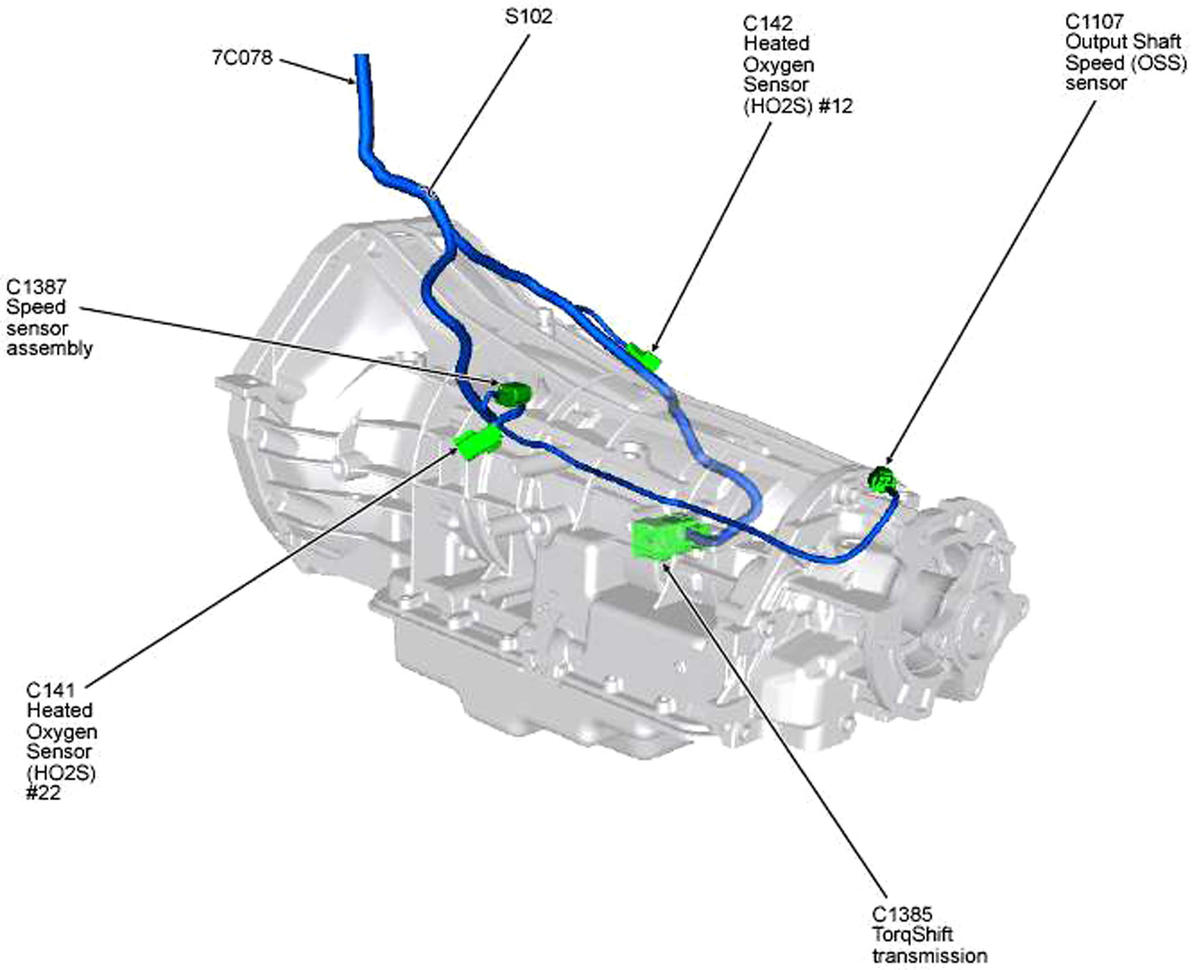

Fig 19: Automatic Transmission (TorqShift) (Gas)

G00466898

Courtesy of FORD MOTOR CO.

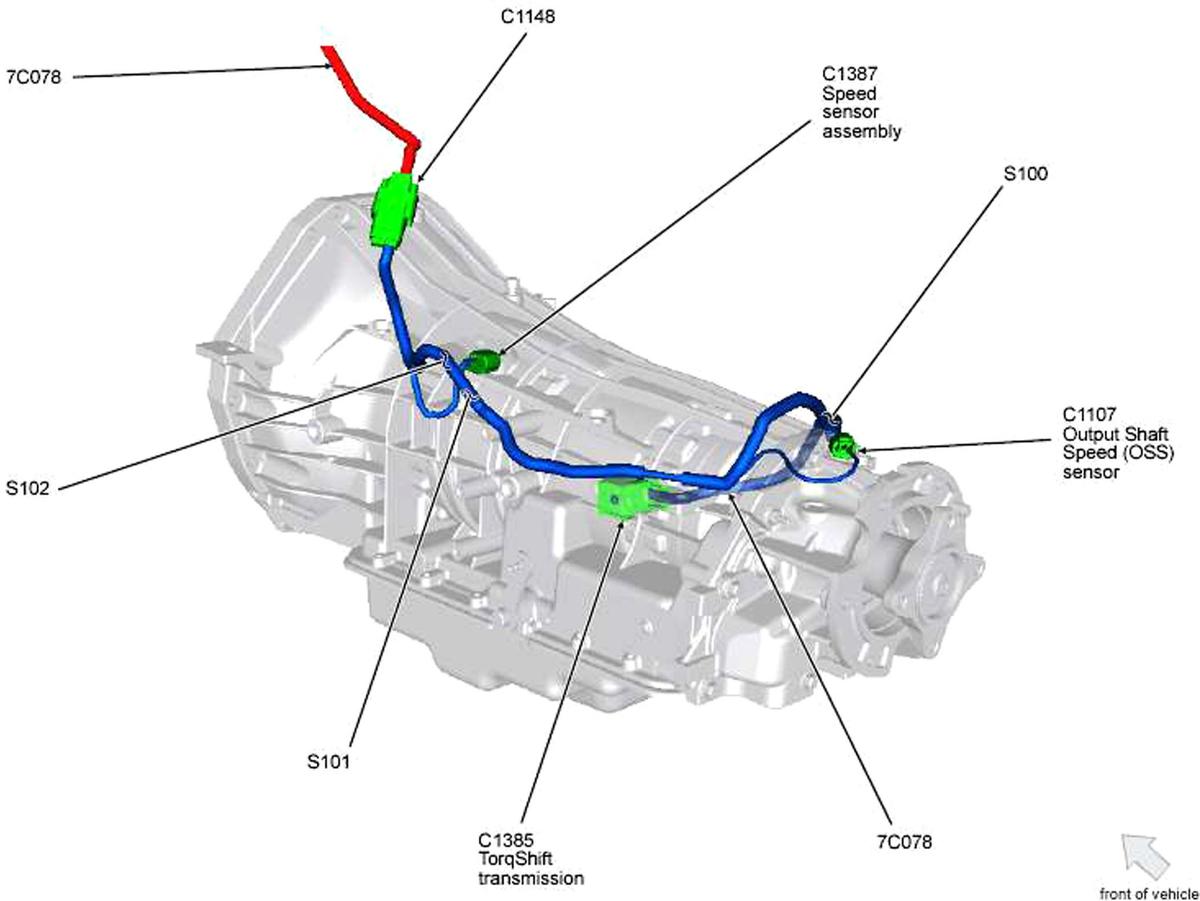

Fig 20: Automatic Transmission (TorqShift) (Diesel)

G00466899

Courtesy of FORD MOTOR CO.

Fig 21: Dash (Except Stripped Chassis)

G00475534

Courtesy of FORD MOTOR CO.

Fig 22: Dash (Except Stripped Chassis)

G00475535

Courtesy of FORD MOTOR CO.

Fig 23: Dash (Stripped Chassis)

G00466902

Courtesy of FORD MOTOR CO.

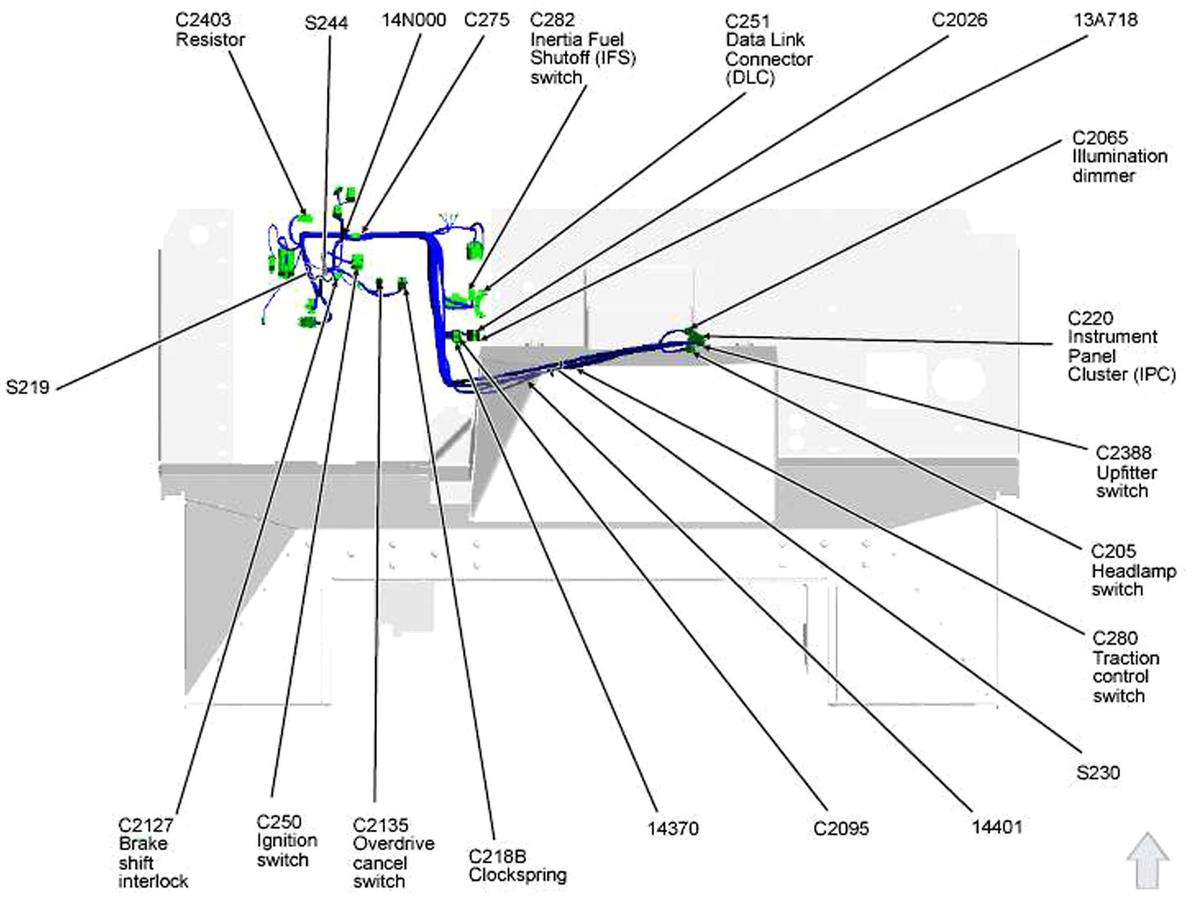

Fig 24: Dash (Stripped Chassis)

G00466903

Courtesy of FORD MOTOR CO.

Fig 25: Left Front Of Vehicle Interior

G00475536

Courtesy of FORD MOTOR CO.

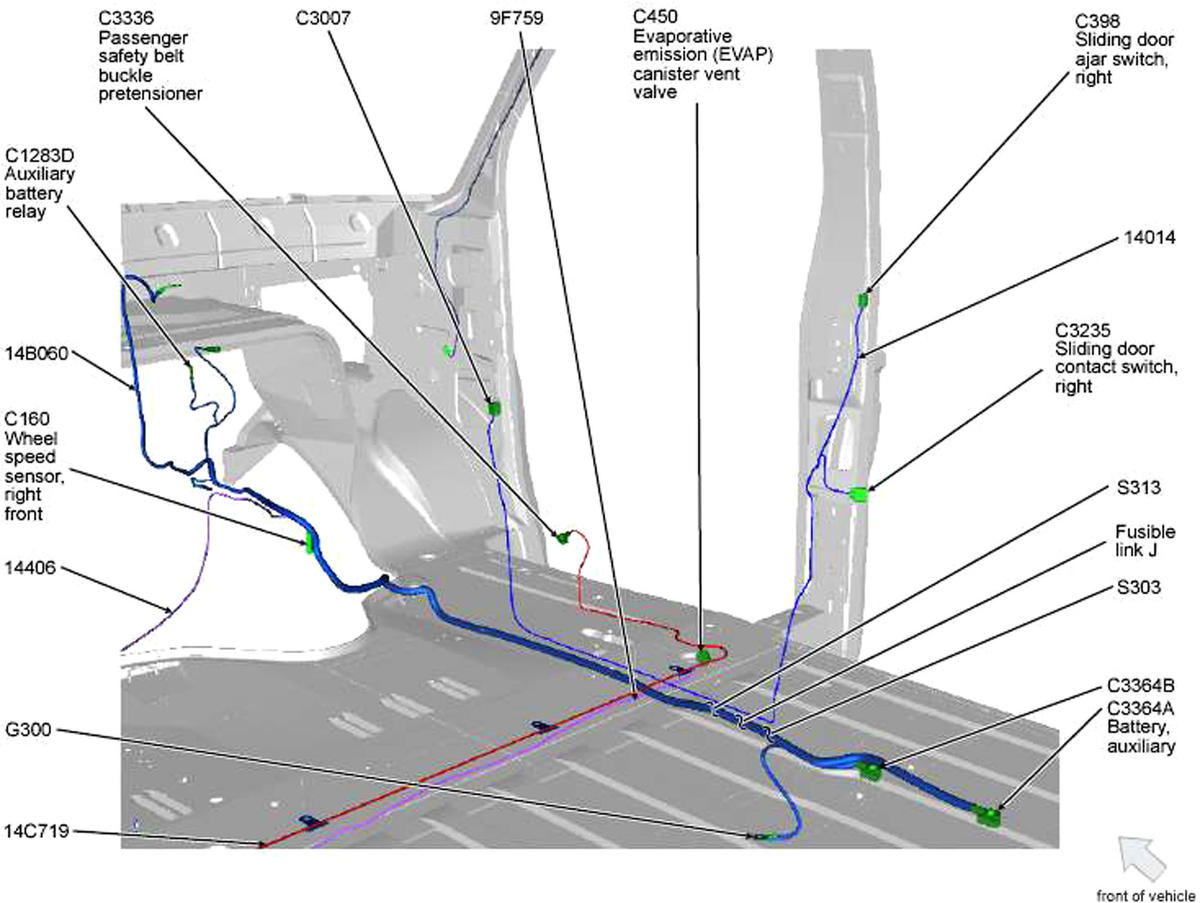

Fig 26: Right Front Of Vehicle Interior (W/Sliding Side Door)

G00466905

Courtesy of FORD MOTOR CO.

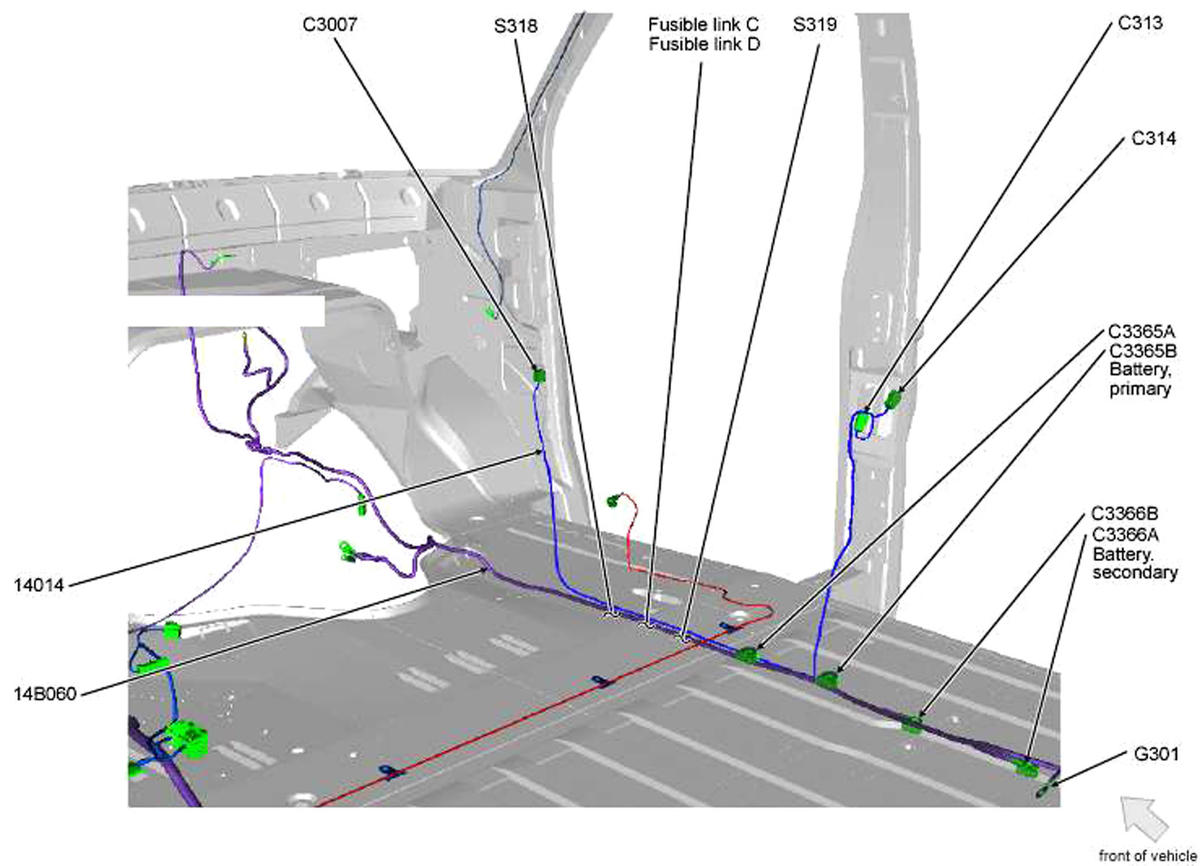

Fig 27: Right Front Of Vehicle Interior (W/Hinged Side Door)

G00466906

Courtesy of FORD MOTOR CO.

Fig 28: Left Rear Interior Of Vehicle

G00475537

Courtesy of FORD MOTOR CO.

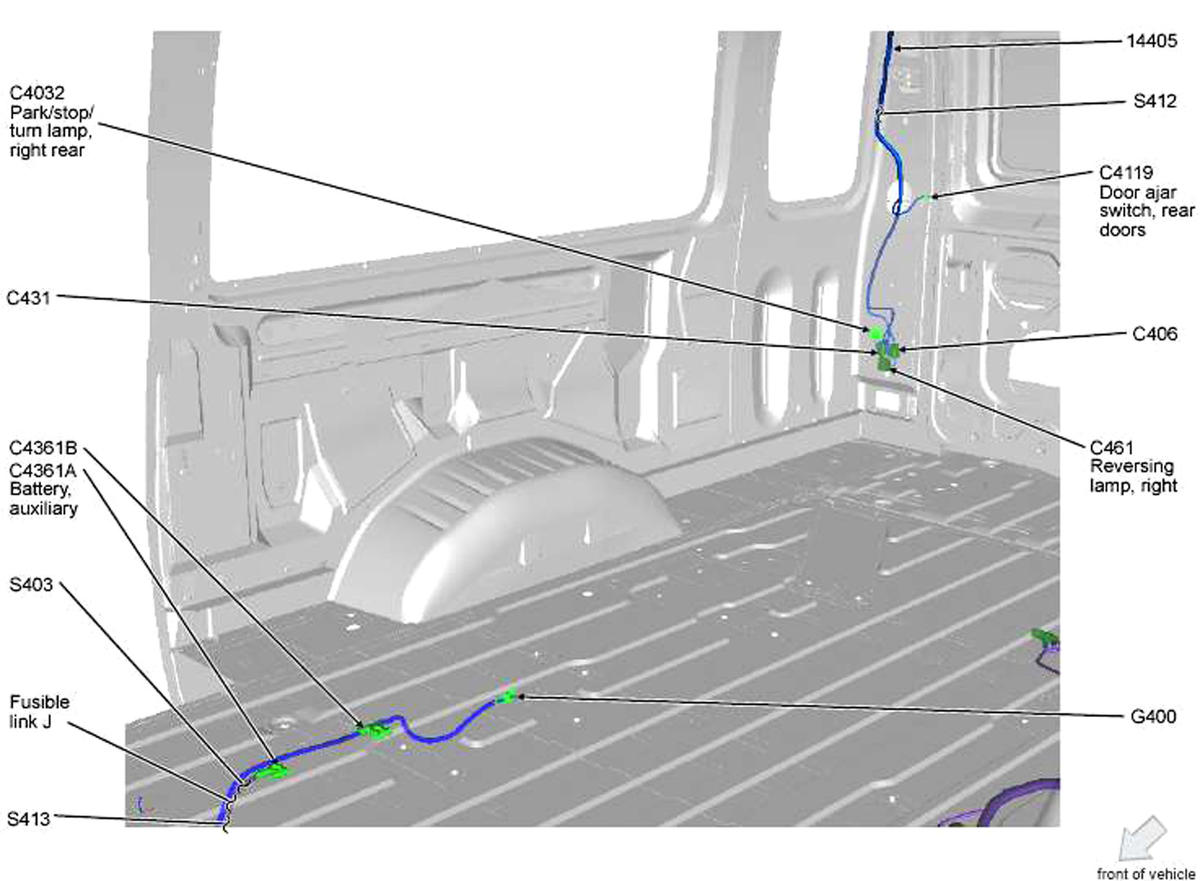

Fig 29: Right Rear Interior Of Vehicle

G00466908

Courtesy of FORD MOTOR CO.

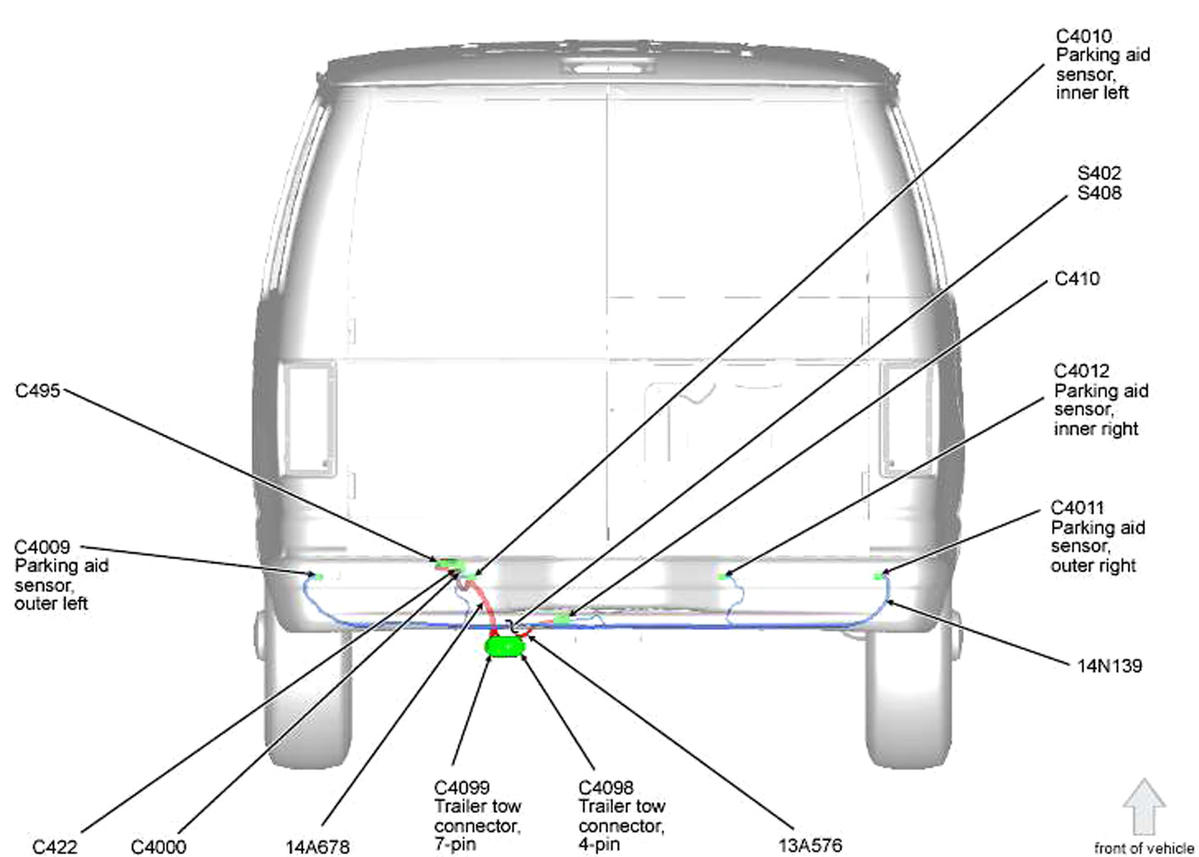

Fig 30: Rear Of Vehicle

G00466909

Courtesy of FORD MOTOR CO.

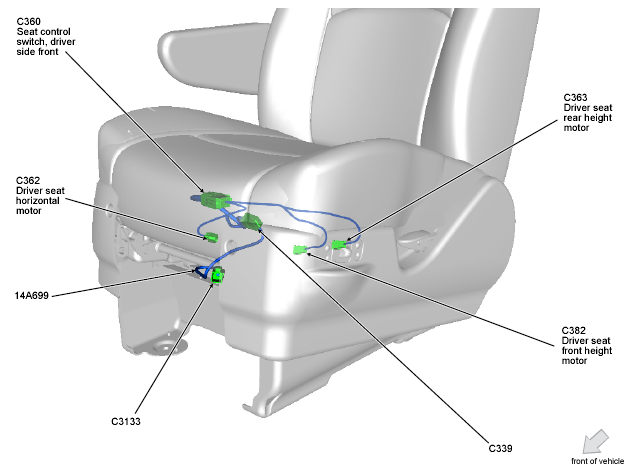

Fig 31: Driver's Seat

G00475538

Courtesy of FORD MOTOR CO.

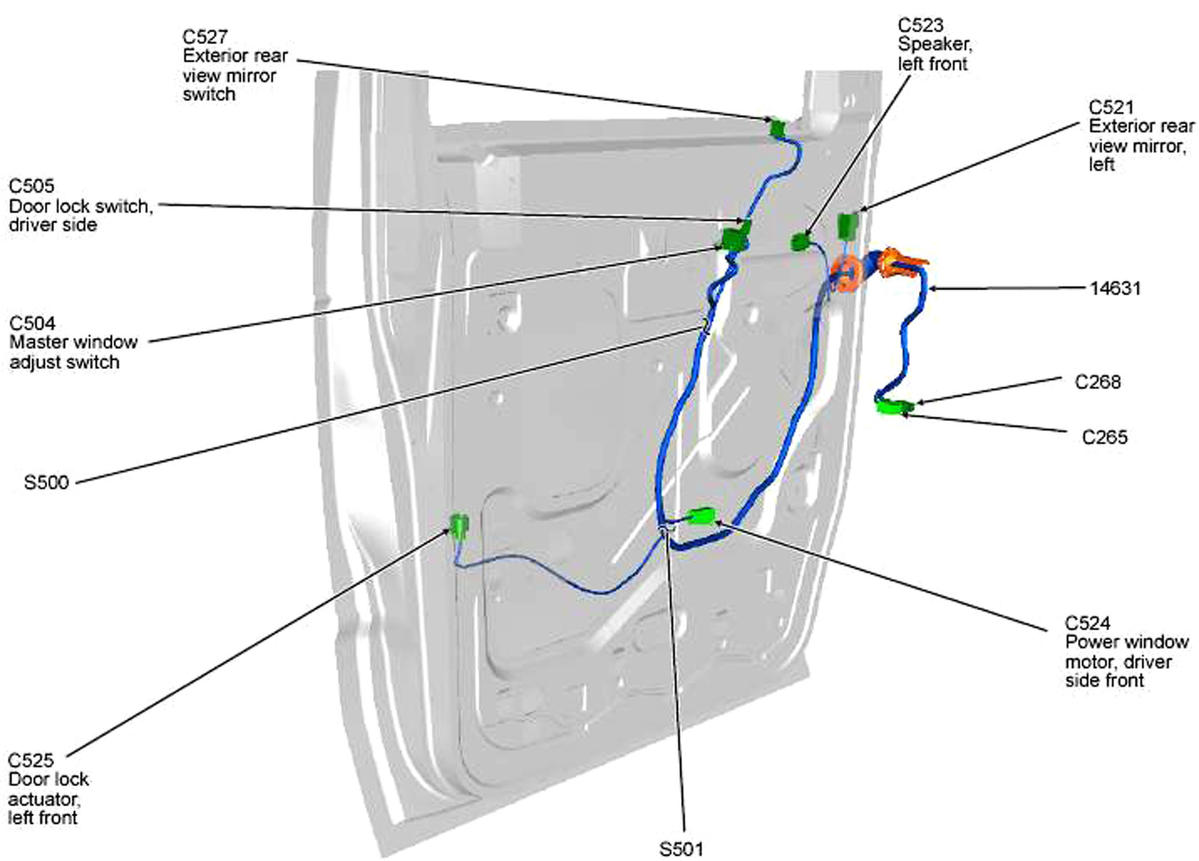

Fig 32: Driver's Door

G00466911

Courtesy of FORD MOTOR CO.

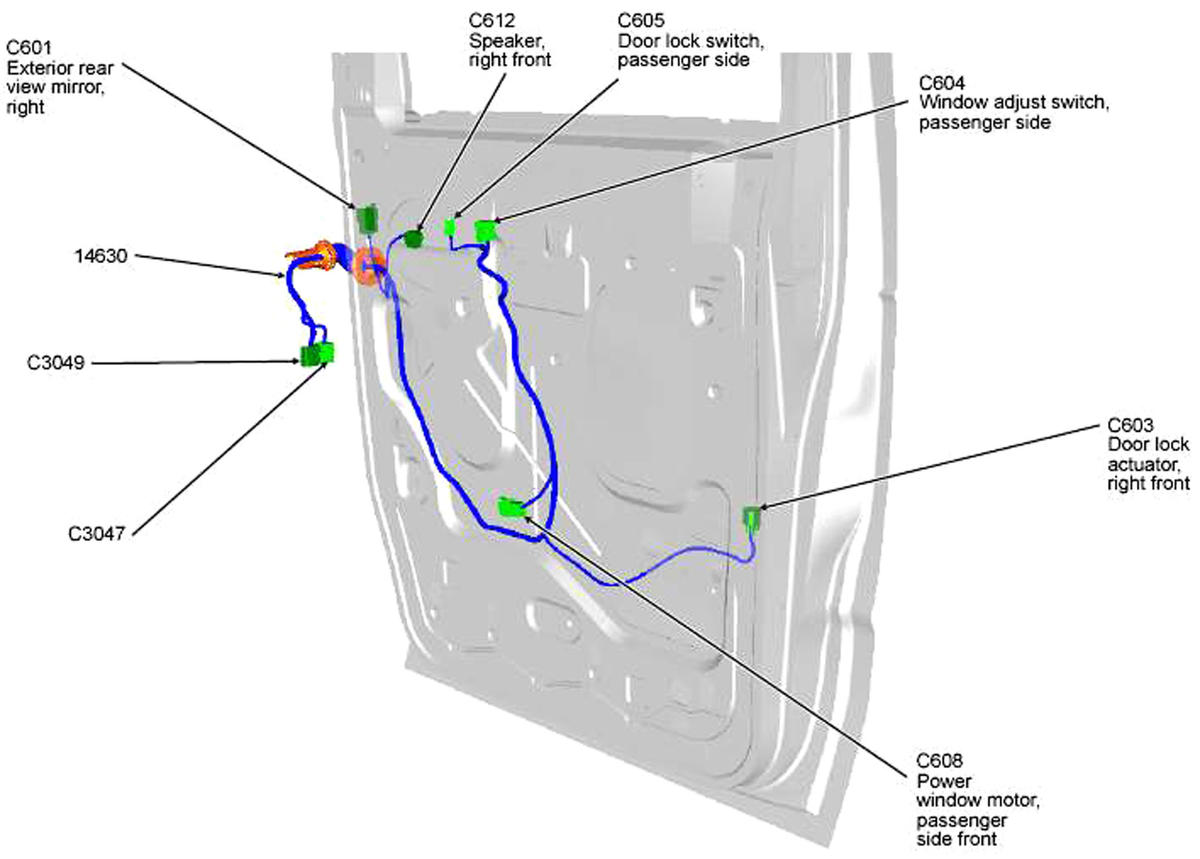

Fig 33: Right Front Door

G00466912

Courtesy of FORD MOTOR CO.

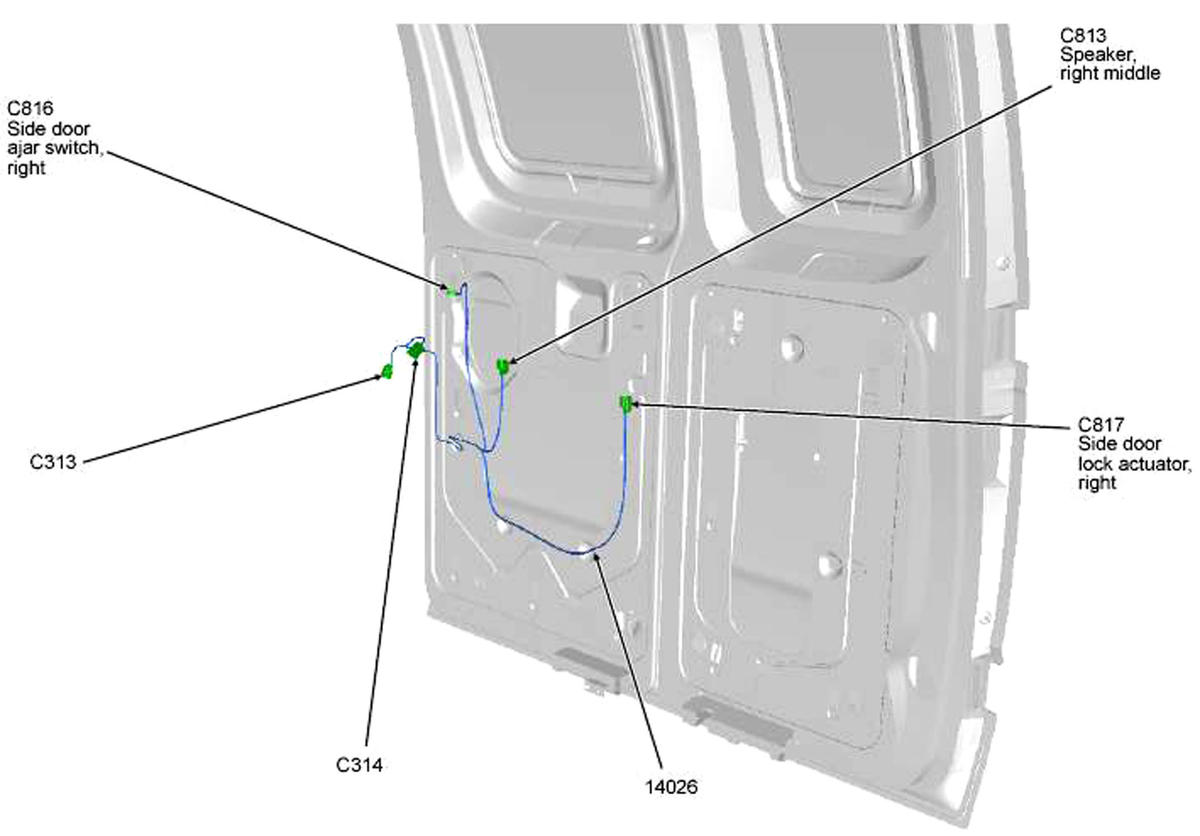

Fig 34: Side Hinged Doors

G00466913

Courtesy of FORD MOTOR CO.

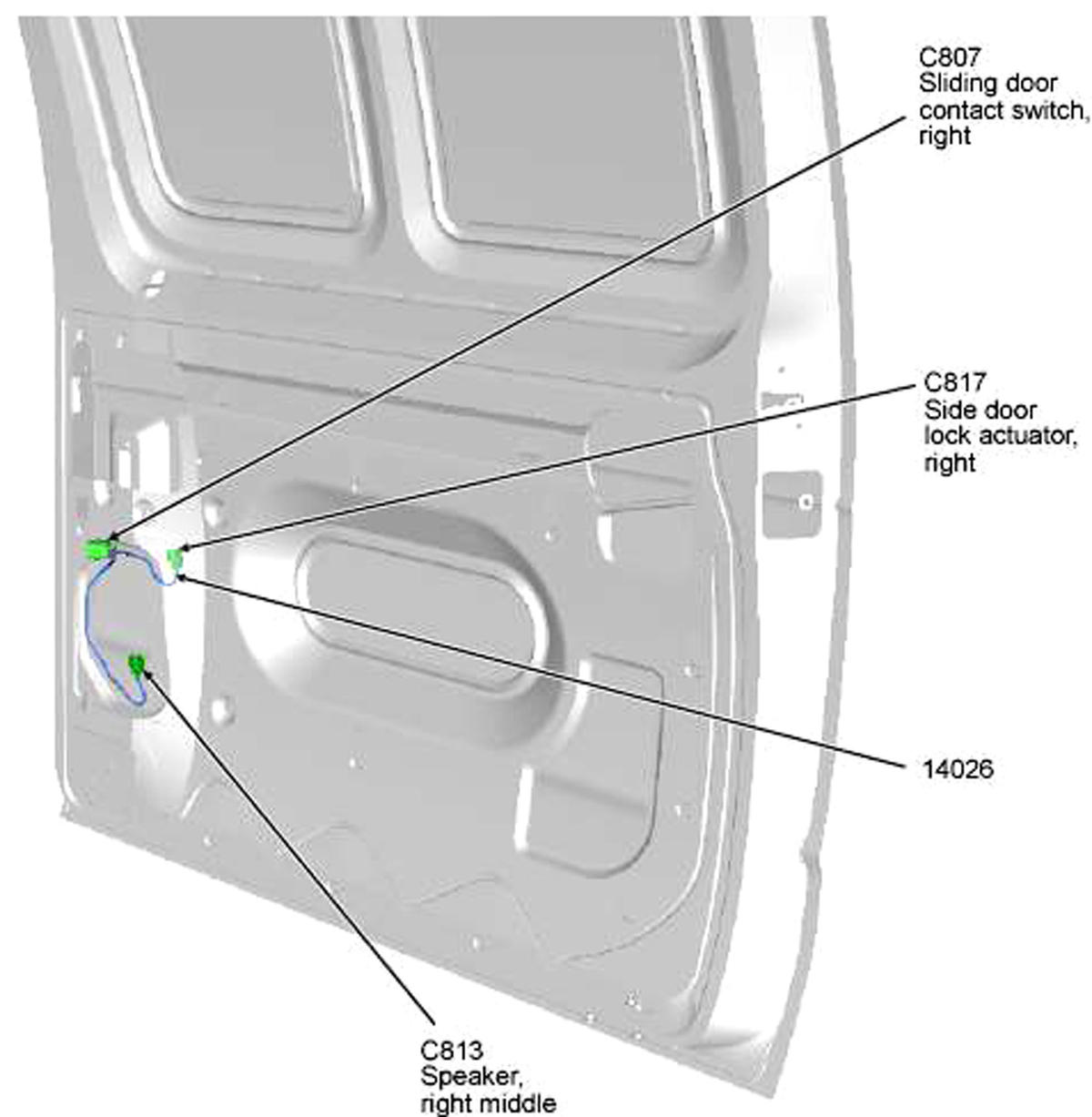

Fig 35: Side Sliding Door

G00466914

Courtesy of FORD MOTOR CO.

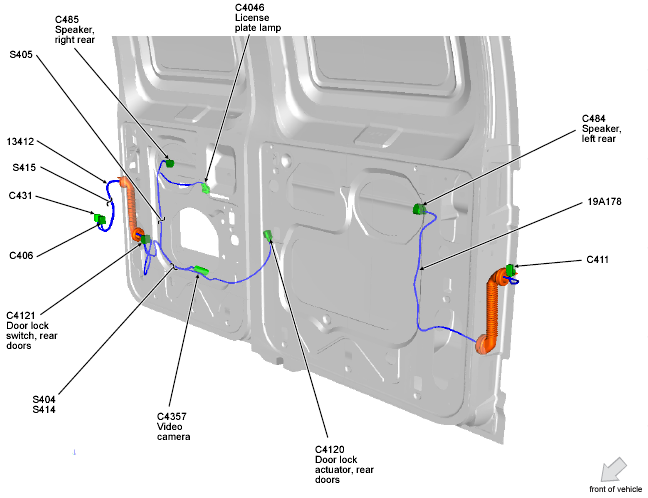

Fig 36: Rear Doors

G00475539

Courtesy of FORD MOTOR CO.

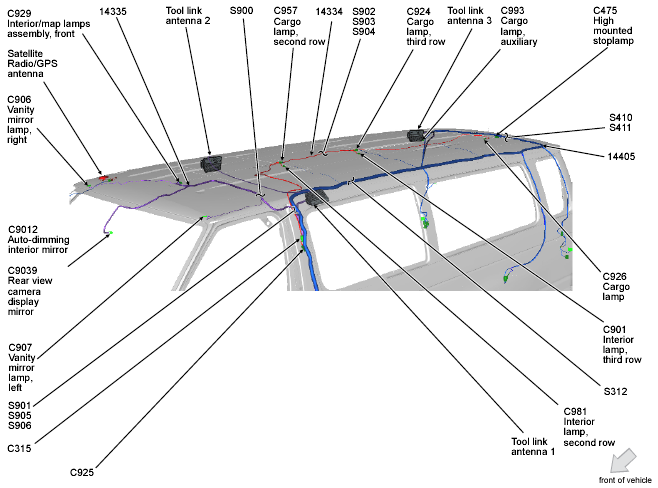

Fig 37: Roof

G00475540

Courtesy of FORD MOTOR CO.

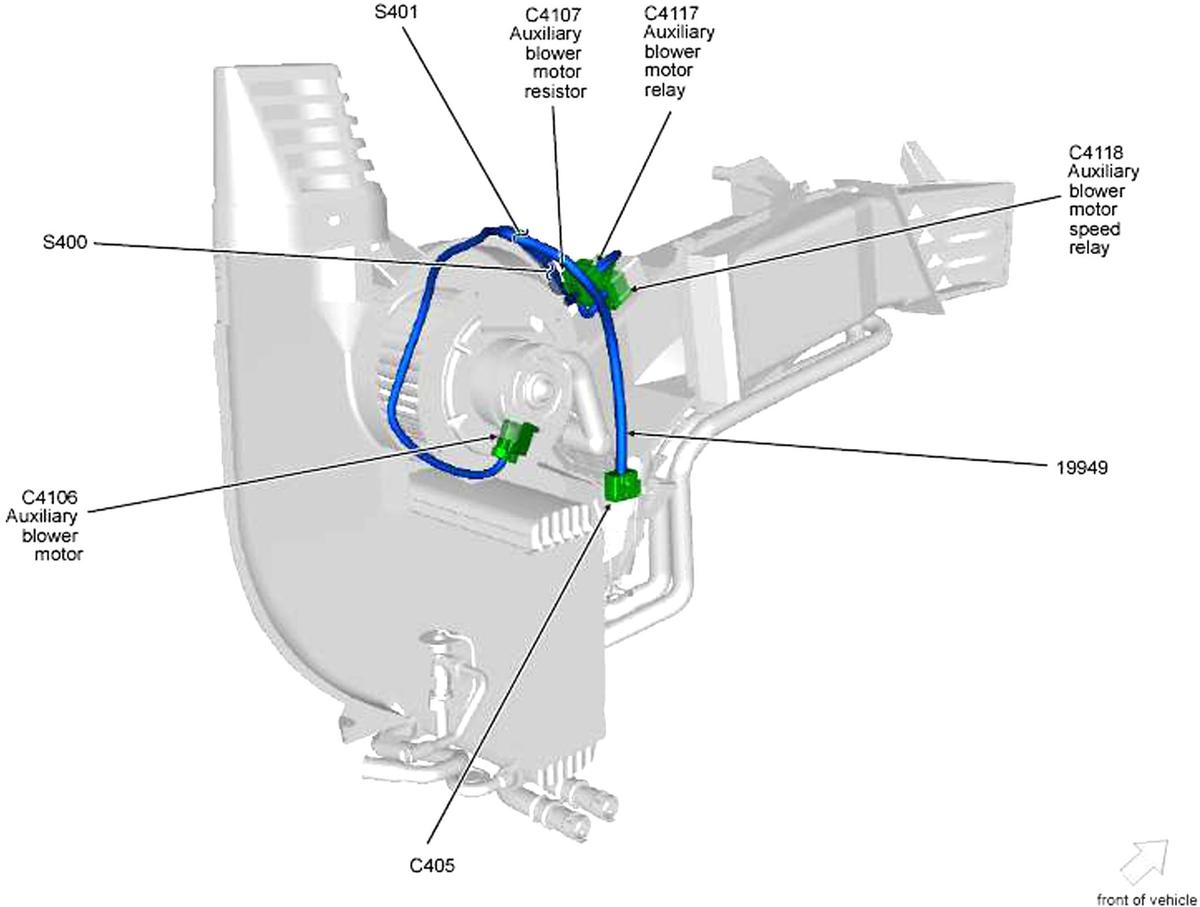

Fig 38: Left Rear Quarterpanel

G00466917

Courtesy of FORD MOTOR CO.

Fig 39: Chassis

G00466918

Courtesy of FORD MOTOR CO.

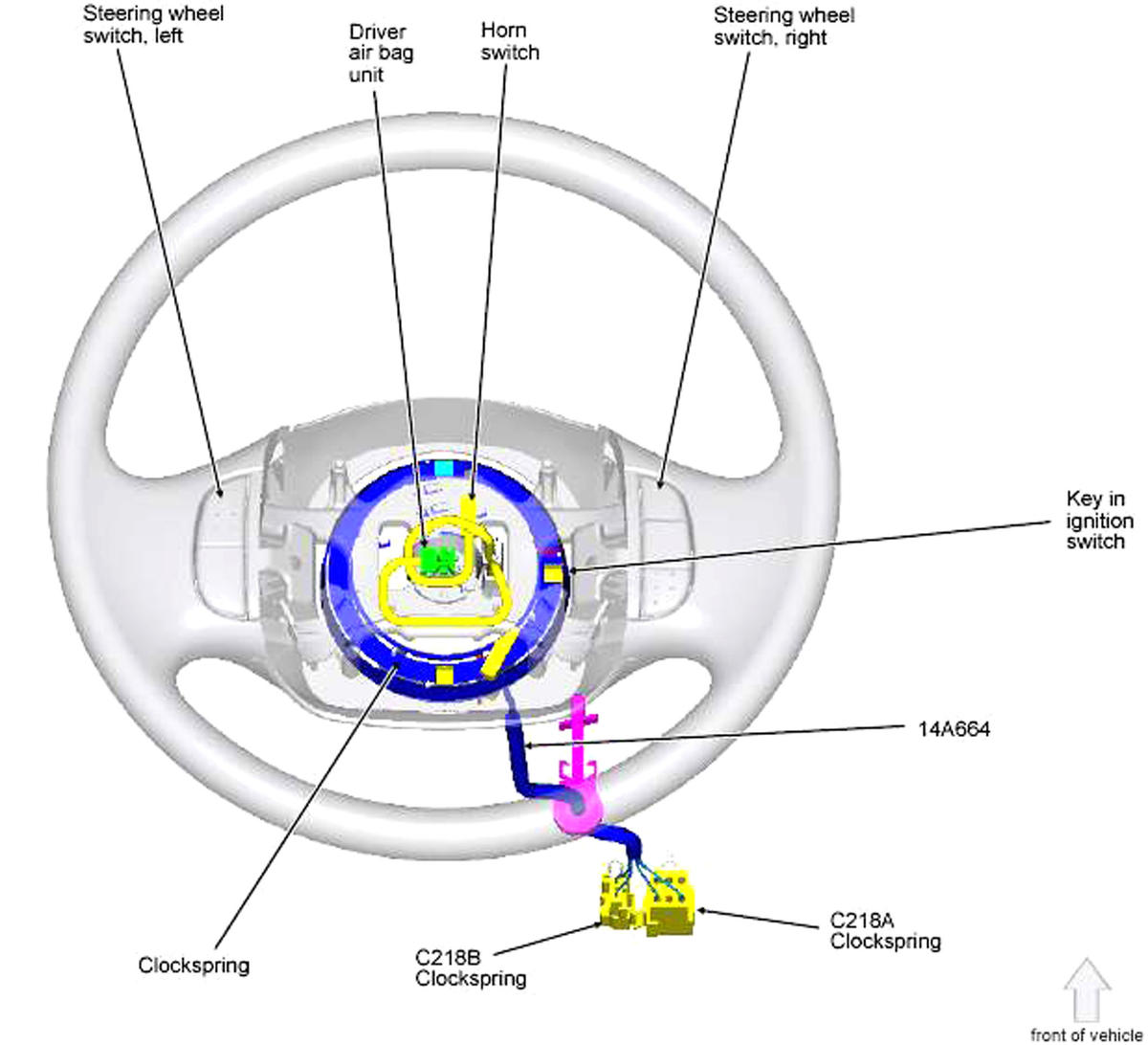

Fig 40: Steering Wheel

G00466919

Courtesy of FORD MOTOR CO.
