Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

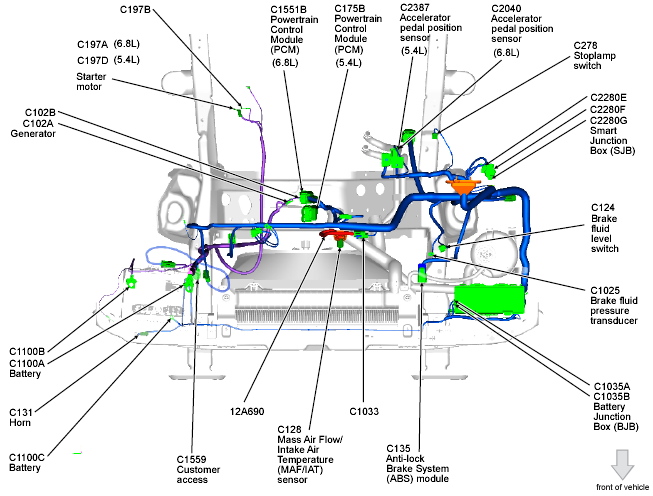

| Battery Junction Box (BJB) (Diesel) | Right front of engine compartment. See Figure. |

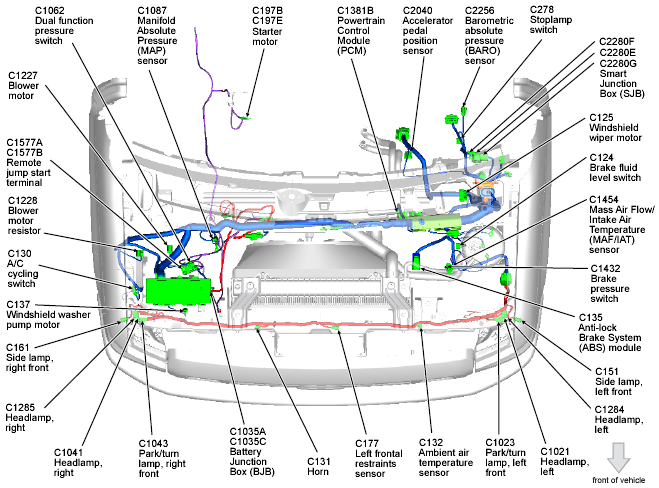

| Battery Junction Box (BJB) (Gas) | Left front of engine compartment. See Figure. |

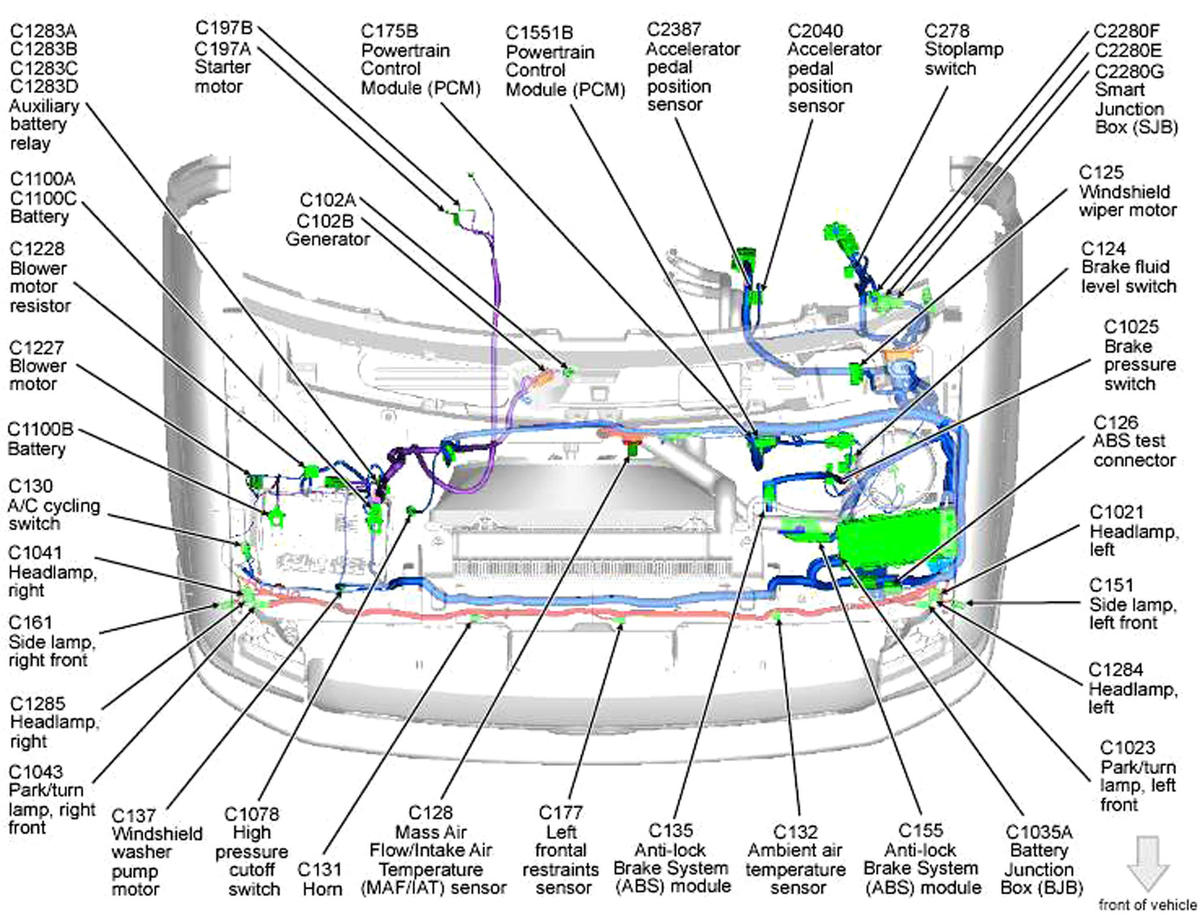

| Battery Junction Box (BJB) (Stripped Chassis) | Left front of engine compartment. See Figure. |

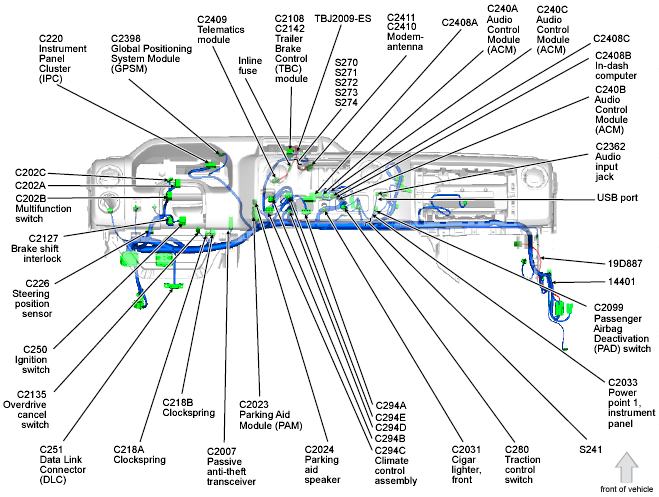

| Inline Fuse | Top center of dash. See Figure. |

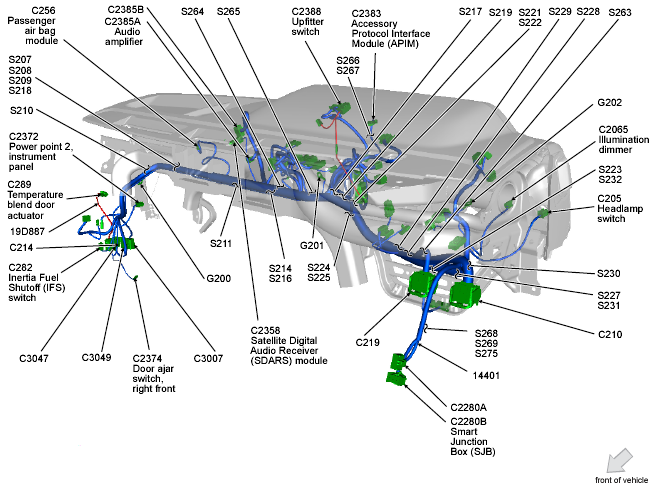

| Smart Junction Box (SJB) (Except Stripped Chassis) | Left kick panel. See Figure. |

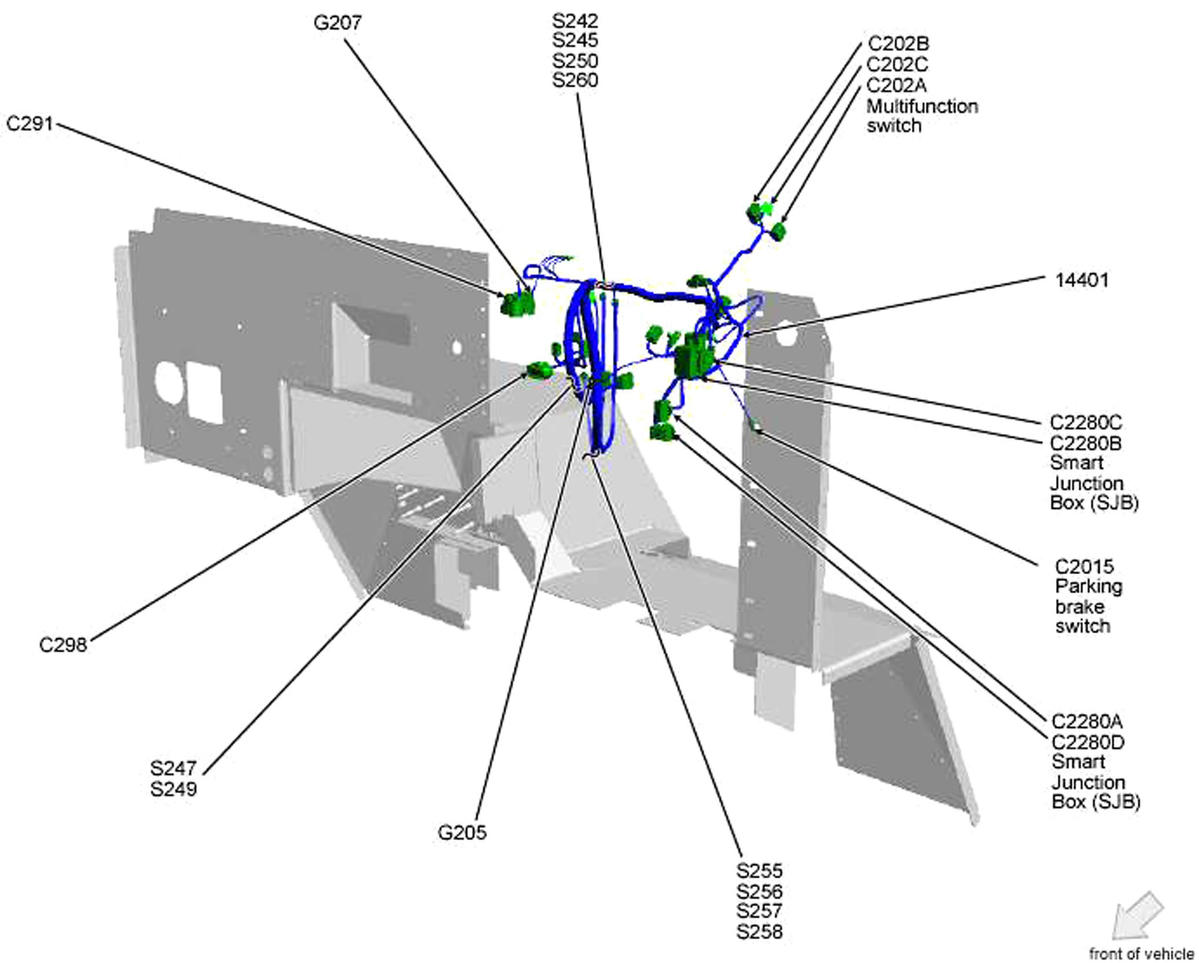

| Smart Junction Box (SJB) (Stripped Chassis) | Left side of dash. See Figure. |
