Generator - 4.0L SOHC: Notes

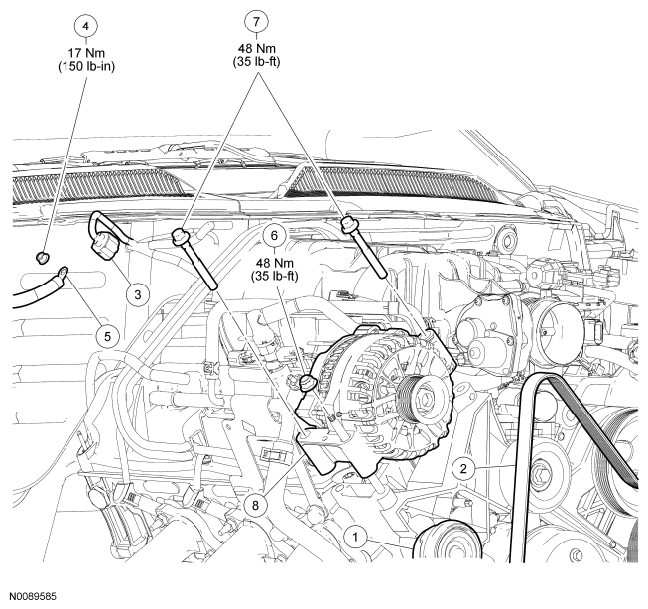

Fig 1: Generator Replacement Components - 4.0L SOHC With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	6B209	Front End Accessory Drive (FEAD) belt tensioner
2	8620	FEAD belt
3	-	Generator electrical connector (part of 12B637)
4	W711953	Generator B+ terminal nut
5	-	Generator B+ terminal (part of 14B060)
6	W520414	Generator stud nut
7	W606068	Generator bolts (2 required)
8	10300	Generator
