Main Control Valve Body: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the transmission fluid pan drain plug and drain the transmission fluid.
    • Discard the transmission fluid pan drain plug gasket.
      Fig 1: Locating Drain Plug
      G06395608Courtesy of FORD MOTOR CO.
    3. NOTE: Clean the area around the solenoid body connector to prevent contamination.
    Fig 2: Locating Transmission Vehicle Harness Connector
    G06395636Courtesy of FORD MOTOR CO.
  3. Disconnect the transmission vehicle harness connector.
  4. Disconnect the Heated Oxygen Sensor (HO2S) connectors and retaining clip from the RH transmission fluid pan rail and then position the connectors aside.
    Fig 3: Locating HO2S Connectors & Retainer
    G06395609Courtesy of FORD MOTOR CO.
  5. Remove the HO2S  connector from the front of the transmission fluid pan rail.
    Fig 4: Identifying HO2S Connector Retainer
    G06395610Courtesy of FORD MOTOR CO.
    6. NOTE: The transmission fluid pan gasket is reusable. Clean and inspect the gasket for damage. If not damaged, the transmission fluid pan gasket should be reused.
    Fig 5: Locating Transmission Fluid Pan Gasket
    G06395611Courtesy of FORD MOTOR CO.
  6. Remove the transmission fluid pan and transmission fluid pan gasket.
  7. Remove the transmission fluid filter.
    Fig 6: Locating Transmission Fluid Filter Nuts
    G06395612Courtesy of FORD MOTOR CO.
  8. Remove the 4 screws attaching the reverse servo to the transmission case and remove the servo.

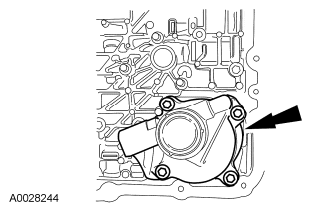

    Fig 7: Locating Reverse Servo Assembly
    G06395641Courtesy of FORD MOTOR CO.
    9. NOTE: Do not damage the transmission control solenoid body connector pins.

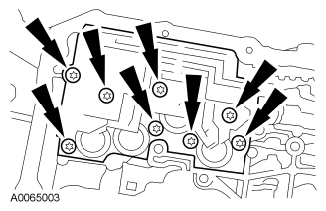

    Fig 8: Locating Solenoid Body Screws
    G06395642Courtesy of FORD MOTOR CO.
  9. Remove the transmission control solenoid body screws and remove the transmission control solenoid body by lifting on the body and pushing the connector from the other side of the case.
  10. Remove the manual valve detent spring.

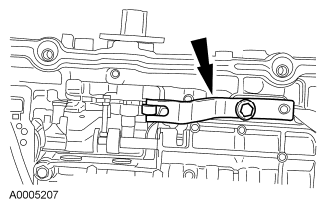

    Fig 9: Locating Manual Control Valve Detent Spring
    G06395643Courtesy of FORD MOTOR CO.
  11. Remove the main control valve body screws and the lower main control valve body assembly.

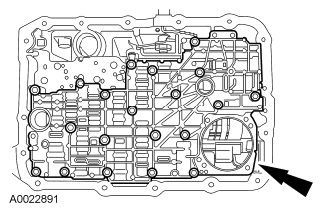

    Fig 10: Locating Main Control Valve Body Bolts & Main Control Valve Body
    G06395644Courtesy of FORD MOTOR CO.
