Steering Gear: Material
MATERIAL SPECIFICATIONS CHART
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

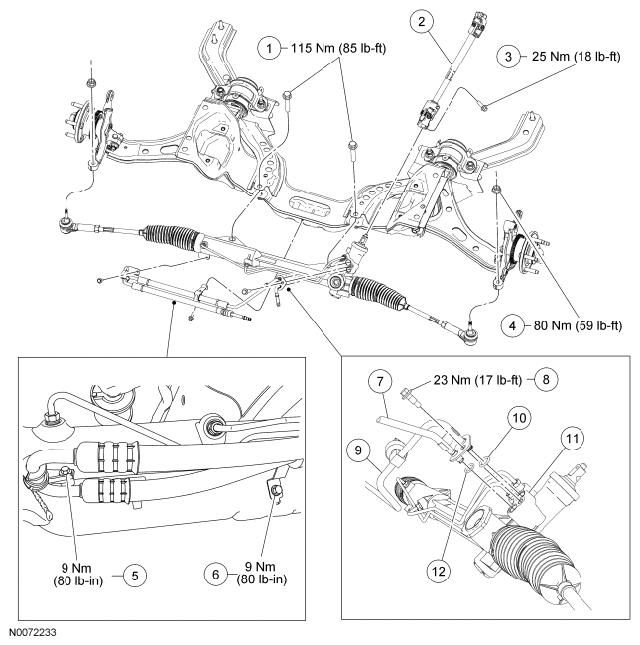

ITEM DESCRIPTION CHART
| 0 Item |
Part Number | Description |
|---|---|---|
| 1 | W10909 | Steering gear bolts (2 required) |
| 2 | 3B676 | Steering column lower shaft |
| 3 | W704980 | Steering column coupling-to-steering gear bolt |
| 4 | W705606 | Tie-rod end nut (2 required) |
| 5 | W505255 | Pressure line bracket-to-steering gear bolt (4.6L and 5.4L) |
| 6 | W505255 | Pressure line bracket-to-crossmember bolt |
| 7 | 3A713 | Power steering return line |
| 8 | W707622 | Power steering line clamp plate bolt |
| 9 | 3A719 | Power steering pressure line |
| 10 | 3F886-AA | O-ring seal |
| 11 | 3504 | Steering gear |
| 12 | 3F886-BA | O-ring seal |
