Fuel Level Sender: Notes

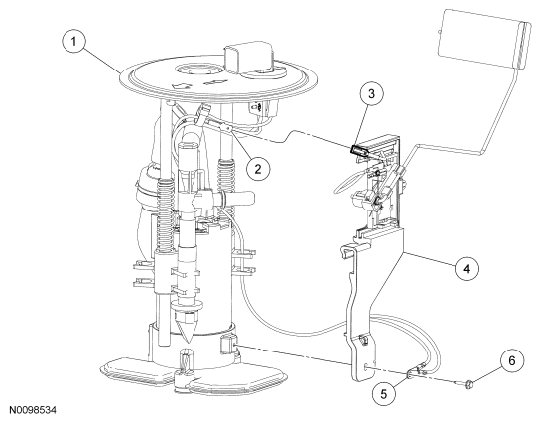

Fig 1: Identifying Fuel Level Sender Components

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	9H307	Fuel Pump (FP) module
2	-	Fuel level sender electrical connector (part of 9H307)
3	-	Fuel level sender electrical connector (part of 9A299)
4	9A299	Fuel level sender
5	-	Fuel level sender electrical eyelet (part of 9A299 and 9H307)
6	-	Fuel level sender screw (part of 9H307)
