Throttle Body: Notes

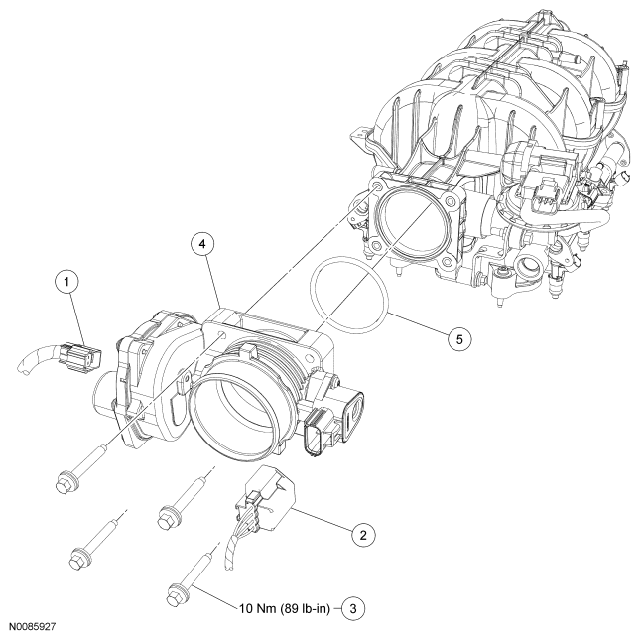

Fig 1: Throttle Body Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	14A464	Electronic throttle control electrical connector
2	14A464	Throttle Position (TP) sensor electrical connector
3	W503280	Throttle Body (TB) bolt (4 required)
4	9F991	TB
5	-	TB gasket
