Passive Anti-Theft Transceiver Connector - C2007

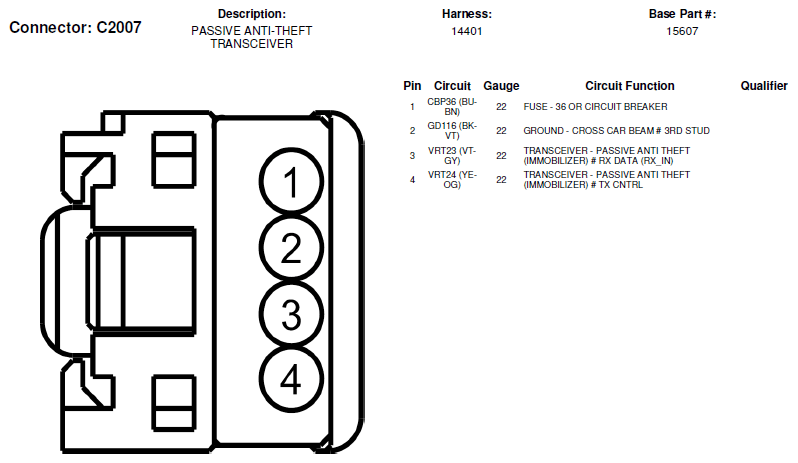

Fig 1: Passive Anti-Theft Transceiver Connector End View (C2007)

G06374805

Courtesy of FORD MOTOR CO.
