OEM Connector End Views
>>
Connector Views
>>
Intake Manifold Runner Control Connector - C191
Intake Manifold Runner Control Connector - C191

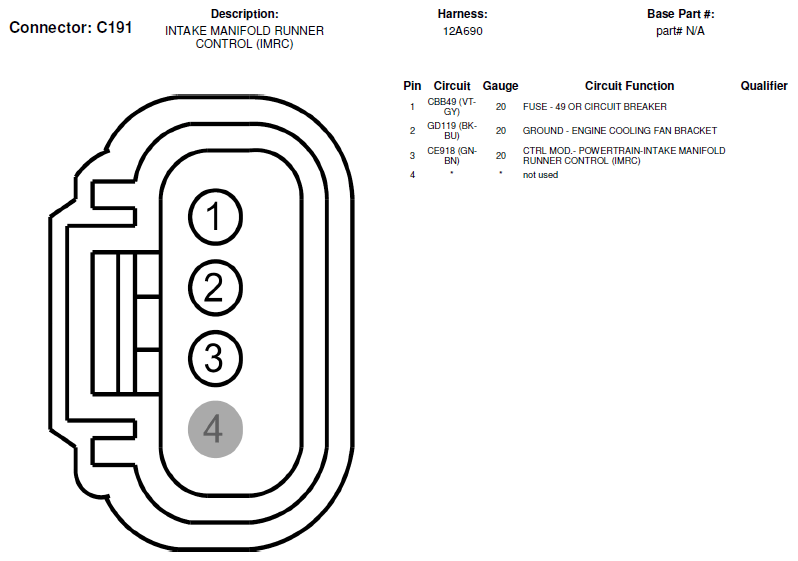

Fig 1: Intake Manifold Runner Control Connector End View (C191)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
